ESD Simulator

¡¡

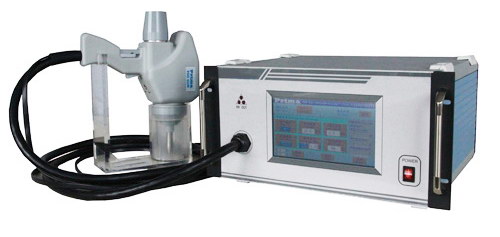

SRE002TA, SRE002TB ESD Simulator Gun

Product introduce:
Intelligent electrostatic discharge generator is designed specifically against electrostatic discharge immunity test requirements, and used to assess the electrical and electronic equipment to suffer from the operator and the surrounding objects electrostatic discharge interference, to provide a performance rating basis.
¡ñ Fully compliant with the latest standards of IEC61000-4-2
¡ñLCD interface display ,Chinese or English menu, easy to use
¡ñLCD display Intelligent control, Use the Programmable imported high-voltage power supply, Reliable performance
¡ñBuilt-in international standards level parameters, simple
¡ñ Built-in international standards level parameters, easy to use
¡ñ Max output voltage up to 30kv
¡ñ Built-in the RS232 interface, Remote operated by the optional control software.

¡¡

Specifications:

Model

SRE002TA

SRE002TB

Output voltage

0.2-- ¡À 20kV ¡À 5%

0.2-- ¡À 30kV ¡À 5%

Output polarity

Positive/ Negative/ Switchable

Discharge capacitor

150pF

Discharge resistor

330 ¦¸

Current rise time

0.7 ¡« 1ns

Working form

Discharge interval 0.05 ¡« 99.99s, Testing form 20PPS discharge; setting less than 0.05s, be called single discharge

Testing functions

Contact discharge

Air discharge

Discharge times

Presetting times 1-9999 or infinite times

Trigger mode

1. Automatic 2. Manual 3. automatic voltage rises

Working power supply

AC220V ¡À 10%, 50 Hz

Ambient temperature

15¡ãC -35¡ãC

Outline dimensions and weight

350¡Á360¡Á175mm, 10kg

¡¡

( If you need user manual or E-catalogue for above meters, please ask for at: xiushunjie@163.com )
