Model SRS2020 Spectrum Analyzer ¡¡
6.5 inches Large High-Definition Screen for
Clear View;Splendid and Vivid Structural Design; Light-Weight, Compact,
Easy to Carry With.
Offers better specifications than that of prevailing portable spectrum
analyzers prevailing in the market; Suitable for indoor and outdoor use. ¡¡
|
Specification |
SRS2020 |
|
Spectrum Measurement |
|
Range |
9kHz - 2GHz |
|
Resolution |
1Hz |
|
Accuracy |
¡À(Frequency Marker Readout*Frequency
Reference
Accuracy +1%*Span +10%*RBW+0.5*[Span/(Sweep Points-1)
]+1Hz) |
|
Internal Reference(10MHz) |
Aging Rate < 1ppm/year; Stability
Over Temperature < 0.5ppm(15¡æ ~ 35¡æ) |
|
Resolution Bandwidth (RBW) |
|
Range |
10Hz~500kHz (1-10 Sequence), 1MHz,
3MHz |
|
Electability(60dB/3dB) |
RBW¡Ü500kHz;
£¼5:1 Typical (Digital
implementation, next to Gaussian shape);
< 5% Typical |
|
Accuracy |
RBW¡Ü500kHz; < 5%, Typical |
|
Video Bandwidth |
10Hz~3MHz, 1-3-10 Sequence |
|
Average Noise Level (10Hz RBW, 0dB
RF Attenuator) |
|
Preamplifier Off |
100kHz/-90dBm,1MHz/-125dBm,100MHz/-122dBm,500MHz/-122dBm,1000MHz/-120dBm,
1.4GHz/-118dBm,1.8GHz/-115dBm,2.2GHz/-121dBm,2.5GHz/-121dBm,3.0GHz/-120dBm |
|
Preamplifier On |
100kHz/-139dBm,1MHz/-130dBm,100MHz/-140dBm,500MHz/-135dBm,1000MHz/-133dBm,
1.4GHz/-134dBm,1.8GHz/-130dBm,2.2GHz/-138dBm,2.5GHz/-138dBm,3.0GHz/-137dBm |
|
Phase Noise |
|
Offset 10kHz |
-80dBc/Hz |
|
Offset 30kHz |
-90dBc/Hz |
|
Offset 1MHz |
-115dBc/Hz |
|
Sweep Time |
|
Span (100Hz¡ÜSPAN¡Ü3GHz) |
10ms to 3000s |
|
Zero Span |
1ms to 3000s |
|
Sweep Modes |
Continuous, Single |
|
Trigger |
|
Trigger Source |
AUTO, Video, EXT |
|
Offset 100kHz |
5V TTL Level (Typical) |
|
Frequency Counter |
|
Resolution |
1Hz, 10Hz, 100Hz, 1kHz |
|
Uncertainty |
Frequency Readout x Frequency
Reference Progress + Counter Resolution |
|
Amplitude Accuracy (20¡æ~30¡æ) |
|
Overall Amplitude Accuracy(90%) |
¡À1.5dB; Input Signal Range: -50dBm
~ 0dBm |
|
Amplitude |
|
Max. Safe Input Level |
Average Continuous Power: +23dBm |
|
Max. Input DC Voltage |
50Vdc |
|
Input Attenuator Range |
0~30B, in 1dB step |
|
1dB Compression |
+7dBm |
|
Stray and Residual Response |
|
Third-Order Intercept(TOI) |
>30MHz: +13dBm |
|
Second Harmonic Intercept(SHI) |
+30dBm |
|
Input Related Spurious |
<-60dBm |
|
Residual Response |
<-85dBm |
|
Input/Output |
|
RF Input |
SMA Type, Female(50¦¸) |
|
USB |
USB Host, USB Device |
|
LAN |
10/100 Base-T, RJ-45 Connector |
|
RS-232 |
9 Pin D-SUB (Positive) |
|
AM/FM Demodulation |
Headset |
|
Reference Input/Output |
10MHz, BNC Negative, Input: 0dBm ~
+10dBm; Ouput: 0dBm¡À2dB |
|
VGA |
640*480,60Hz,15 Pin, D-SUB
(Negative) |
|
General Characteristics |
|
Internal Memory |
128MB |
|
Power |
Input Voltage: 110VAC£¨Optional),
220VAC;
Frequency: 40Hz - 60Hz; Max
Consumption: 35W |
|
Display |
6.5 Inches TFT LCD, 640¡Á480 |
|
Product Color |
White and Gray |
|
Product Net Weight |
3.0 Kg |
|
Product Size |
330mm(W) ¡Á 163mm(H) ¡Á165mm(D) |
|
Standard Accessories |
Power Cord, N/SMA Convertor, N/BNC
Convertor, RF Cable, Antenna |
|
Standard Individual Packing |
Gift Box, English Manual |
|
Standard Quantity Per Carton |
1 PC |
|
Standard Carton Measurement |
350mm(W) ¡Á 180mm(H) ¡Á170mm(D) |
|
Standard Carton Cross Weight |
4.0 Kg |
|
Optional Accessories* |
USB-GPIB |
¡¡ |
|
¡¡ |
¡¡ |
|
Model SRS2020D Spectrum Analyzer ¡¡
6.5 inches Large High-Definition Screen for
Clear View;Splendid and Vivid Structural Design; Light-Weight, Compact,
Easy to Carry With.
Offers better specifications than that of prevailing portable spectrum
analyzers prevailing in the market; Suitable for indoor and outdoor use. ¡¡
|
Specification |
SRS2020D |
|
Spectrum Measurement |
|
Range |
9kHz - 2GHz |
|
Resolution |
1Hz |
|
Accuracy |
¡À(Frequency Marker Readout*Frequency
Reference
Accuracy +1%*Span +10%*RBW+0.5*[Span/(Sweep Points-1)
]+1Hz) |
|
Internal Reference(10MHz) |
Aging Rate < 1ppm/year; Stability
Over Temperature < 0.5ppm(15¡æ ~ 35¡æ) |
|
Resolution Bandwidth (RBW) |
|
Range |
10Hz~500kHz(1-10 Sequence), 1MHz,
3MHz |
|
Electability (60dB/3dB) |
RBW ¡Ü 500kHz;
<5:1 Typical (Digital
implementation, next to Gaussian shape);
<5% Typical |
|
Accuracy |
RBW ¡Ü 500kHz; < 5%, Typical |
|
Video Bandwidth |
10Hz~3MHz, 1-3-10 Sequence |
|
Average Noise Level (10Hz RBW, 0dB
RF Attenuator) |
|
Preamplifier Off |
100kHz/-90dBm,1MHz/-125dBm,100MHz/-122dBm,500MHz/-122dBm,1000MHz/-120dBm,
1.4GHz/-118dBm,1.8GHz/-115dBm,2.2GHz/-121dBm,2.5GHz/-121dBm,3.0GHz/-120dBm |
|
Preamplifier On |
100kHz/-139dBm,1MHz/-130dBm,100MHz/-140dBm,500MHz/-135dBm,1000MHz/-133dBm,
1.4GHz/-134dBm,1.8GHz/-130dBm,2.2GHz/-138dBm,2.5GHz/-138dBm,3.0GHz/-137dBm |
|
Phase Noise |
|
Offset 10kHz |
-80dBc/Hz |
|
Offset 30kHz |
-90dBc/Hz |
|
Offset 1MHz |
-115dBc/Hz |
|
Sweep Time |
|
Span (100Hz¡ÜSPAN¡Ü3GHz) |
10ms to 3000s |
|
Zero Span |
1ms to 3000s |
|
Sweep Modes |
Continuous, Single |
|
Trigger |
|
Trigger Source |
AUTO, Video, EXT |
|
Offset 100kHz |
5V TTL Level (Typical) |
|
Frequency Counter |
|
Resolution |
1Hz, 10Hz, 100Hz, 1kHz |
|
Uncertainty |
Frequency Readout x Frequency
Reference Progress+Counter Resolution |
|
Amplitude Accuracy (20¡æ~30¡æ) |
|
Overall Amplitude Accuracy(90%) |
¡À1.5dB; Input Signal Range: -50dBm
~ 0dBm |
|
Amplitude |
|
Max. Safe Input Level |
Average Continuous Power: +23dBm |
|
Max. Input DC Voltage |
50Vdc |
|
Input Attenuator Range |
0~30B, in 1dB step |
|
1dB Compression |
+7dBm |
|
Stray and Residual Response |
|
Third-Order Intercept(TOI) |
>30MHz: +13dBm |
|
Second Harmonic Intercept(SHI) |
+30dBm |
|
Input Related Spurious |
<-60dBm |
|
Residual Response |
<-85dBm |
|
Tracking Generator |
|
Frequency Range |
100kHz to 1.8GHz |
|
Output Power |
-30dBm ~ 0dBm; in 1dB step |
|
Output Flatness |
¡À3dB |
|
Input/Output |
|
RF Input |
SMA Type, Female(50¦¸) |
|
USB |
USB Host, USB Device |
|
LAN |
10/100 Base-T, RJ-45 Connector |
|
RS-232 |
9 Pin D-SUB (Positive) |
|
AM/FM Demodulation |
Headset |
|
Reference Input/Output |
10MHz, BNC Negative, Input: 0dBm ~
+10dBm; Ouput: 0dBm¡À2dB |
|
VGA |
640*480,60Hz,15 Pin, D-SUB(Negative) |
|
General Characteristics |
|
Internal Memory |
128MB |
|
Power |
Input Voltage: 110VAC£¨Optional) ,
220VAC; Frequency: 40Hz - 60Hz; Max Consumption: 35W |
|
Display |
6.5 Inches TFT LCD, 640¡Á480 |
|
Product Color |
White and Gray |
|
Product Net Weight |
3.0 Kg |
|
Product Size |
330mm(W) ¡Á 163mm(H) ¡Á165mm(D) |
|
Standard Accessories |
Power Cord, N/SMA Convertor, N/BNC
Convertor, RF Cable, Antenna |
|
Standard Individual Packing |
Gift Box, English Manual |
|
Standard Quantity Per Carton |
1 PC |
|
Standard Carton Measurement |
350mm(W) ¡Á 180mm(H) ¡Á170mm(D) |
|
Standard Carton Cross Weight |
4.0 Kg |
|
Optional Accessories* |
USB-GPIB |
¡¡ |
|
¡¡ |
¡¡ |
|

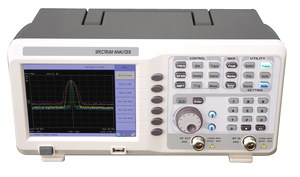

Model SRS2030 Spectrum Analyzer ¡¡
6.5 inches Large High-Definition Screen for
Clear View;Splendid and Vivid Structural Design; Light-Weight, Compact,
Easy to Carry With.
Offers better specifications than that of prevailing portable spectrum
analyzers prevailing in the market; Suitable for indoor and outdoor use. ¡¡
|
Specification |
SRS2030 |
|
Spectrum Measurement |
|
Range |
9kHz - 3GHz |
|
Resolution |
1Hz |
|
Accuracy |
¡À(Frequency Marker Readout*Frequency
Reference
Accuracy +1%*Span +10%*RBW+0.5*[Span/(Sweep Points-1)
]+1Hz) |
|
Internal Reference(10MHz) |
Aging Rate < 1ppm/year; Stability
Over Temperature < 0.5ppm(15¡æ ~ 35¡æ) |
|
Resolution Bandwidth (RBW) |
|
Range |
10Hz~500kHz(1-10 Sequence), 1MHz,
3MHz |
|
Electability(60dB/3dB) |
RBW¡Ü500kHz; £¼5:1 Typical (Digital
implementation,next to Gaussian shape);; £¼5% Typical |
|
Accuracy |
RBW¡Ü500kHz; < 5%, Typical |
|
Video Bandwidth |
10Hz~3MHz, 1-3-10 Sequence |
|
Average Noise Level (10Hz RBW, 0dB
RF Attenuator) |
|
Preamplifier Off |
100kHz/-90dBm,1MHz/-125dBm,100MHz/-122dBm,500MHz/-122dBm,1000MHz/-120dBm,
1.4GHz/-118dBm,1.8GHz/-115dBm,2.2GHz/-121dBm,2.5GHz/-121dBm,3.0GHz/-120dBm |
|
Preamplifier On |
100kHz/-139dBm,1MHz/-130dBm,100MHz/-140dBm,500MHz/-135dBm,1000MHz/-133dBm,
1.4GHz/-134dBm,1.8GHz/-130dBm,2.2GHz/-138dBm,2.5GHz/-138dBm,3.0GHz/-137dBm |
|
Phase Noise |
|
Offset 10kHz |
-80dBc/Hz |
|
Offset 30kHz |
-90dBc/Hz |
|
Offset 1MHz |
-115dBc/Hz |
|
Sweep Time |
|
Span (100Hz¡ÜSPAN¡Ü3GHz) |
10ms to 3000s |
|
Zero Span |
1ms to 3000s |
|
Sweep Modes |
Continuous, Single |
|
Trigger |
|
Trigger Source |
AUTO, Video, EXT |
|
Offset 100kHz |
5V TTL Level (Typical) |
|
Frequency Counter |
|
Resolution |
1Hz, 10Hz, 100Hz, 1kHz |
|
Uncertainty |
Frequency Readout x Frequency
Reference Progress+Counter Resolution |
|
Amplitude Accuracy (20¡æ~30¡æ) |
|
Overall Amplitude Accuracy(90%) |
¡À1.5dB; Input Signal Range:
-50dBm ~ 0dBm |
|
Amplitude |
|
Max. Safe Input Level |
Average Continuous Power: +27dBm |
|
Max. Input DC Voltage |
50Vdc |
|
Input Attenuator Range |
0~30B, in 3dB step |
|
1dB Compression |
+7dBm |
|
Stray and Residual Response |
|
Third-Order Intercept(TOI) |
£¾30MHz: +13dBm |
|
Second Harmonic Intercept(SHI) |
+30dBm |
|
Input Related Spurious |
£¼-60dBm |
|
Residual Response |
£¼-85dBm |
|
Input/Output |
|
RF Input |
SMA Type, Female(50¦¸) |
|
USB |
USB Host, USB Device |
|
LAN |
10/100 Base-T, RJ-45 Connector |
|
RS-232 |
9 Pin D-SUB (Positive) |
|
AM/FM Demodulation |
Headset |
|
Reference Input/Output |
10MHz, BNC Negative, Input: 0dBm ~
+10dBm; Ouput: 0dBm¡À2dB |
|
VGA |
640*480,60Hz,15 Pin, D-SUB(Negative) |
|
General Characteristics |
|
Internal Memory |
128MB |
|
Power |
Input Voltage: 110VAC£¨Optional) ,
220VAC; Frequency: 40Hz - 60Hz; Max Consumption: 35W |
|
Display |
6.5 Inches TFT LCD, 640¡Á480 |
|
Product Color |
White and Gray |
|
Product Net Weight |
3.0 Kg |
|
Product Size |
330mm(W) ¡Á 163mm(H) ¡Á165mm(D) |
|
Standard Accessories |
Power Cord, N/SMA Convertor, N/BNC
Convertor, RF Cable, Antenna |
|
Standard Individual Packing |
Gift Box, English Manua |
|
Standard Quantity Per Carton |
1 PC |
|
Standard Carton Measurement |
350mm(W) ¡Á 180mm(H) ¡Á170mm(D) |
|
Standard Carton Cross Weight |
4.0 Kg |
|
Optional Accessories* |
USB-GPIB |
¡¡ ¡¡ |
|
¡¡ |
¡¡ |
|
Model SRS2030D Spectrum Analyzer ¡¡
6.5 inches Large High-Definition Screen for
Clear View;Splendid and Vivid Structural Design; Light-Weight, Compact,
Easy to Carry With.
Offers better specifications than that of prevailing portable spectrum
analyzers prevailing in the market; Suitable for indoor and outdoor use. ¡¡
|
Specification |
SRS2030D |
|
Spectrum Measurement |
|
Range |
9kHz - 3GHz |
|
Resolution |
1Hz |
|
Accuracy |
¡À(Frequency Marker Readout*Frequency
Reference
Accuracy +1%*Span +10%*RBW+0.5*[Span/(Sweep Points-1)
]+1Hz) |
|
Internal Reference(10MHz) |
Aging Rate < 1ppm/year; Stability
Over Temperature < 0.5ppm(15¡æ ~ 35¡æ) |
|
Resolution Bandwidth (RBW) |
|
Range |
10Hz~500kHz(1-10 Sequence), 1MHz,
3MHz |
|
Electability(60dB/3dB) |
RBW¡Ü500kHz;
£¼5:1 Typical (Digital
implementation, next to Gaussian shape);
£¼5% Typical |
|
Accuracy |
RBW¡Ü500kHz; < 5%, Typical |
|
Video Bandwidth |
10Hz~3MHz, 1-3-10 Sequence |
|
Average Noise Level (10Hz RBW, 0dB
RF Attenuator) |
|
Preamplifier Off |
100kHz/-90dBm,1MHz/-125dBm,100MHz/-122dBm,500MHz/-122dBm,1000MHz/-120dBm,
1.4GHz/-118dBm,1.8GHz/-115dBm,2.2GHz/-121dBm,2.5GHz/-121dBm,3.0GHz/-120dBm |
|
Preamplifier On |
100kHz/-139dBm,1MHz/-130dBm,100MHz/-140dBm,500MHz/-135dBm,1000MHz/-133dBm,
1.4GHz/-134dBm,1.8GHz/-130dBm,2.2GHz/-138dBm,2.5GHz/-138dBm,3.0GHz/-137dBm |
|
Phase Noise |
|
Offset 10kHz |
-80dBc/Hz |
|
Offset 30kHz |
-90dBc/Hz |
|
Offset 1MHz |
-115dBc/Hz |
|
Sweep Time |
|
Span (100Hz¡ÜSPAN¡Ü3GHz) |
10ms to 3000s |
|
Zero Span |
1ms to 3000s |
|
Sweep Modes |
Continuous, Single |
|
Trigger |
|
Trigger Source |
AUTO, Video, EXT |
|
Offset 100kHz |
5V TTL Level (Typical) |
|
Frequency Counter |
|
Resolution |
1Hz, 10Hz, 100Hz, 1kHz |
|
Uncertainty |
Frequency Readout x Frequency
Reference Progress + Counter Resolution |
|
Amplitude Accuracy (20¡æ~30¡æ) |
|
Overall Amplitude Accuracy(90%) |
¡À1.5dB; Input Signal Range: -50dBm
~ 0dBm |
|
Amplitude |
|
Max. Safe Input Level |
Average Continuous Power: +27dBm |
|
Max. Input DC Voltage |
50Vdc |
|
Input Attenuator Range |
0~30B, in 3dB step |
|
1dB Compression |
+7dBm |
|
Stray and Residual Response |
|
Third-Order Intercept(TOI) |
>30MHz: +13dBm |
|
Second Harmonic Intercept(SHI) |
+30dBm |
|
Input Related Spurious |
<-60dBm |
|
Residual Response |
<-85dBm |
|
Tracking Generator |
|
Frequency Range |
100kHz to 3GHz |
|
Output Power |
-30dBm ~ 0dBm, in 1dB step |
|
Output Flatness |
¡À3dB |
|
Input/Output |
|
RF Input |
SMA Type, Female (50¦¸) |
|
USB |
USB Host, USB Device |
|
LAN |
10/100 Base-T, RJ-45 Connector |
|
RS-232 |
9 Pin D-SUB (Positive) |
|
AM/FM Demodulation |
Headset |
|
Reference Input/Output |
10MHz, BNC Negative, Input: 0dBm ~
+10dBm; Ouput: 0dBm¡À2dB |
|
VGA |
640*480,60Hz,15 Pin, D-SUB
(Negative) |
|
General Characteristics |
|
Internal Memory |
128MB |
|
Power |
Input Voltage: 110VAC (Optional) ,
220VAC; Frequency: 40Hz - 60Hz; Max Consumption: 35W |
|
Display |
6.5 Inches TFT LCD, 640¡Á480 |
|
Product Color |
White and Gray |
|
Product Net Weight |
3.0 Kg |
|
Product Size |
330mm(W) ¡Á 163mm(H) ¡Á165mm(D) |
|
Standard Accessories |
Power Cord, N/SMA Convertor, N/BNC
Convertor, RF Cable, Antenna |
|
Standard Individual Packing |
Gift Box, English Manual |
|
Standard Quantity Per Carton |
1 PC |
|
Standard Carton Measurement |
350mm(W) ¡Á 180mm(H) ¡Á170mm(D) |
|
Standard Carton Cross Weight |
4.0 Kg |
|
Optional Accessories* |
USB-GPIB |
¡¡ ¡¡ |
|
¡¡ |
¡¡ |
|
Model SRS3030 Spectrum Analyzer
Splendid and Vivid Structural Design; Light-Weight, Compact, Easy to
Carry With.
Offers better specifications than that of prevailing portable spectrum
analyzers prevailing in the market; Suitable for indoor and outdoor use.
Introduction:
1. Frequency range 9kHz~3GHz£»
2. Resolution bandwidth 10Hz~3MHz(1-10sequence);
3. 3G signal generator, can be use as a tracking generator and
independent signal cource;
4. Combine frequency measure, AM and FM demodulation, adjacent-channel
power measure, chromatogram function;
5. 5 trace line measure display;
6. 8.4 inched LED backlight display, Chinese and English menu;
7. Various communication interface USB, LAN, VGA, GPIB, RS232;
8. Compact and lightweight;
9. Highest cost performance.
|
Specification |
SRS3030 |
|
Spectrum Measurement |
|
Range |
9kHz - 3GHz |
|
Resolution |
1Hz |
|
Accuracy |
¡À(Frequency Marker Readout*Frequency
Reference
Accuracy +1%*Span +10%*RBW+0.5*[Span/(Sweep Points-1)
]+1Hz) |
|
Internal Reference(10MHz) |
Aging Rate < 1ppm/year; Stability
Over Temperature < 0.5ppm(15¡æ ~ 35¡æ) |
|
Resolution Bandwidth (RBW) |
|
Range |
Range (<1kHz Optional):
10Hz~500kHz(1-10 Sequence), 1MHz, 3MHz |
|
Electability(60dB/3dB) |
RBW¡Ü500kHz;
<5:1 Typical (Digital
implementation,next to Gaussian shape);
<5% Typical |
|
Accuracy |
RBW¡Ü500kHz; < 5%, Typical |
|
Video Bandwidth |
10Hz~3MHz, 1-3-10 Sequence |
|
Average Noise Level (10Hz RBW, 0dB
RF Attenuator) |
|
100kHz - 1MHz |
<-90dBm-3¡Á(f/100kHz)dB |
|
100kHz - 10MHz |
<-120dBm |
|
10MHz - 1GHz |
<-122dBm |
|
1GHz - 3GHz |
<-120dBm |
|
Phase Noise |
|
Offset 10kHz |
-85dBc/Hz |
|
Offset 1MHz |
-115dBc/Hz |
|
Sweep Time |
|
Span (100Hz¡ÜSPAN¡Ü3GHz) |
10ms to 3000s |
|
Zero Span |
1ms to 3000s |
|
Sweep Modes |
Continuous, Single |
|
Trigger |
|
Trigger Source |
AUTO, Video, EXT |
|
Offset 100kHz |
5V TTL Level (Typical) |
|
Frequency Counter |
|
Resolution |
1Hz, 10Hz, 100Hz, 1kHz |
|
Uncertainty |
Frequency Readout x Frequency
Reference Progress+Counter Resolution |
|
Amplitude Accuracy (20¡æ~30¡æ) |
|
Overall Amplitude Accuracy(90%) |
¡À1.5dB
Input Signal Range: -50dBm ~ 0dBm |
|
Amplitude |
|
Max. Safe Input Level |
Average Continuous Power: +33dBm |
|
Max. Input DC Voltage |
50Vdc |
|
Input Attenuator Range |
0~50B, in 1dB step |
|
1dB Compression |
+13dBm |
|
Stray and Residual Response |
|
Third-Order Intercept(TOI) |
>30MHz: +10dBm |
|
Second Harmonic Intercept(SHI) |
+30dBm |
|
Input Related Spurious |
<-60dBm |
|
Residual Response |
<-85dBm |
|
Tracking Generator |
|
Frequency Range |
100kHz to 3GHz |
|
Output Power |
-30dBm ~ 0dBm,
in 1dB step |
|
Output Flatness |
¡À3dB |
|
Input/Output |
|
RF Input |
N Type, Female (50¦¸) |
|
USB |
USB Host, USB Device |
|
LAN |
10/100 Base-T, RJ-45 Connector |
|
RS-232 |
9 Pin D-SUB (Positive) |
|
AM/FM Demodulation |
Headset |
|
Reference Input/Output |
10MHz, BNC Negative, Input: 0dBm ~
+10dBm; Ouput: 0dBm¡À2dB |
|
VGA |
640*480, 60Hz,15 Pin, D-SUB
(Negative) |
|
General Characteristics |
|
Internal Memory |
256MB |
|
Power |
Input Voltage: 110VAC / 220VAC;
Frequency: 40Hz - 60Hz; Max Consumption: 60W |
|
Display |
8.4 Inches TFT LCD, 640¡Á480 |
|
Product Color |
White and Gray |
|
Product Net Weight |
8.6 Kg |
|
Product Size |
390mm(W) ¡Á 182mm(H) ¡Á230mm(D) |
|
Standard Accessories |
Power Cord, N/SMA Convertor, N/BNC
Convertor, RF Cable, Antenna |
|
Standard Individual Packing |
Gift Box, English Manual |
|
Standard Quantity Per Carton |
1 PC |
|
Standard Carton Measurement |
|
|
Standard Carton Cross Weight |
|
|
Optional Accessories* |
USB-GPIB |
|
|
¡¡ |
¡¡ |
|
Model SRS3030D Spectrum Analyzer
Splendid and Vivid Structural Design; Light-Weight, Compact, Easy to
Carry With.
Offers better specifications than that of prevailing portable spectrum
analyzers prevailing in the market; Suitable for indoor and outdoor use.
Introduction:
1. Frequency range 9kHz~3GHz£»
2. Resolution bandwidth 10Hz~3MHz(1-10sequence);
3. 3G signal generator, can be use as a tracking generator and
independent signal cource;
4. Combine frequency measure, AM and FM demodulation, adjacent-channel
power measure, chromatogram function;
5. 5 trace line measure display;
6. 8.4 inched LED backlight display, Chinese and English menu;
7. Various communication interface USB, LAN, VGA, GPIB, RS232;
8. Compact and lightweight;
9. Highest cost performance.
¡¡
|
Specification |
SRS3030D |
|
Spectrum Measurement |
|
Range |
9kHz - 3GHz |
|
Resolution |
1Hz |
|
Accuracy |
¡À(Frequency Marker Readout*Frequency Reference
Accuracy +1%*Span
+10%*RBW+0.5*[Span/(Sweep Points-1) ]+1Hz) |
|
Internal Reference(10MHz) |
Aging Rate < 1ppm/year; Stability Over Temperature < 0.5ppm(15¡æ ~ 35¡æ) |
|
Resolution Bandwidth (RBW) |
|
Range |
Range (£¼1kHz
Optional): 10Hz~500kHz(1-10 Sequence), 1MHz, 3MHz |
|
Electability(60dB/3dB) |
RBW¡Ü500kHz;
£¼5:1
Typical (Digital implementation,next to Gaussian shape);
£¼5%
Typical |
|
Accuracy |
RBW¡Ü500kHz; < 5%, Typical |
|
Video Bandwidth |
10Hz~3MHz, 1-3-10 Sequence |
|
Average Noise Level (10Hz RBW, 0dB RF Attenuator) |
|
100kHz - 1MHz |
<-90dBm-3¡Á(f/100kHz)dB |
|
100kHz - 10MHz |
<-120dBm |
|
10MHz - 1GHz |
<-122dBm |
|
1GHz - 3GHz |
<-120dBm |
|
Phase Noise |
|
Offset 10kHz |
-85dBc/Hz |
|
Offset 1MHz |
-115dBc/Hz |
|
Sweep Time |
|
Span (100Hz¡ÜSPAN¡Ü3GHz) |
10ms to 3000s |
|
Zero Span |
1ms to 3000s |
|
Sweep Modes |
Continuous, Single |
|
Trigger |
|
Trigger Source |
AUTO, Video, EXT |
|
Offset 100kHz |
5V TTL Level (Typical) |
|
Frequency Counter |
|
Resolution |
1Hz, 10Hz, 100Hz, 1kHz |
|
Uncertainty |
Frequency Readout x Frequency Reference Progress+Counter
Resolution |
|
Amplitude Accuracy (20¡æ~30¡æ) |
|
Overall Amplitude Accuracy(90%) |
¡À1.5dB
Input Signal Range: -50dBm ~ 0dBm |
|
Amplitude |
|
Max. Safe Input Level |
Average Continuous Power: +33dBm |
|
Max. Input DC Voltage |
50Vdc |
|
Input Attenuator Range |
0~50B, in 1dB step |
|
1dB Compression |
+13dBm |
|
Stray and Residual Response |
|
Third-Order Intercept(TOI) |
>30MHz:
+10dBm |
|
Second Harmonic Intercept(SHI) |
+30dBm |
|
Input Related Spurious |
<-60dBm |
|
Residual Response |
<-85dBm |
|
Tracking Generator |
|
Frequency Range |
100kHz to 3GHz |
|
Output Power |
-30dBm ~ 0dBm,
in 1dB step |
|
Output Flatness |
¡À3dB |
|
Input/Output |
|
RF Input |
N Type, Female(50¦¸) |
|
USB |
USB Host, USB Device |
|
LAN |
10/100 Base-T, RJ-45 Connector |
|
RS-232 |
9 Pin D-SUB (Positive) |
|
AM/FM Demodulation |
Headset |
|
Reference Input/Output |
10MHz, BNC Negative, Input: 0dBm ~ +10dBm; Ouput: 0dBm¡À2dB |
|
VGA |
640*480, 60Hz,15 Pin, D-SUB (Negative) |
|
General Characteristics |
|
Internal Memory |
256MB |
|
Power |
Input Voltage: 110VAC / 220VAC; Frequency: 40Hz - 60Hz; Max
Consumption: 60W |
|
Display |
8.4 Inches TFT LCD, 640¡Á480 |
|
Product Color |
White and Gray |
|
Product Net Weight |
8.6 Kg |
|
Product Size |
390mm(W) ¡Á 182mm(H) ¡Á230mm(D) |
|
Standard Accessories |
Power Cord, N/SMA Convertor, N/BNC Convertor, RF Cable, Antenna |
|
Standard Individual Packing |
Gift Box, English Manual |
|
Standard Quantity Per Carton |
1 PC |
|
Standard Carton Measurement |
|
|
Standard Carton Cross Weight |
|
|
Optional Accessories* |
USB-GPIB |
|
|
¡¡ |
¡¡ |
