MICROMETER

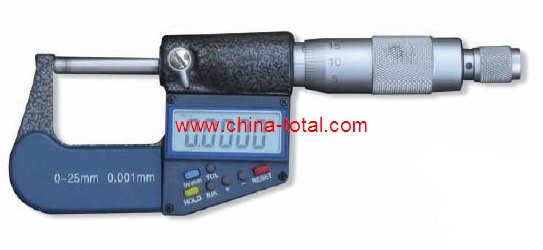

ELECTRONIC DIGITAL MICROMETER

Metric/Inch conversion.      Date output.
Date hold.    Relative/Absolute Measuring.
Tolerance Setting. Positive Setting.
Negative Setting. Origin resetting.
Item No. Specification QTY/Carton N.W. (kg) G.W. (kg) Meas (cm)
 TQ21025  0-25mm*0.001/0-1in*0.00005 20 9.5 10.5 42.0*22.0*20.0
TQ21050  25-50mm*0.001/0-2in*0.00005  20  11.5   12.5   47.0*24.0*19.0
 TQ21075   50-75mm*0.001/0-3in*0.0005   20   15.0   16.0   52.0*28.0*21.0
 TQ21100   75-100mm*0.001/3-4in*0.00005   20   18.0   19.0   59.0*32.0*20.0

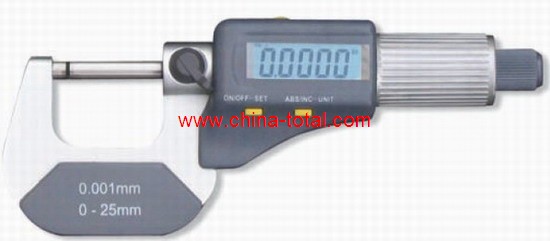

ELECTRONIC DIGITAL MICROMETER (SINGLE FUNCTION KEY)

Easy operation
Display date is origin date of absolute measurement after changing battery.
Painted frame.
Carbide measuring faces.
Ratchet friction thimble.
Item No. Specification QTY/Carton N.W. (kg) G.W. (kg) Meas (cm)
 TQ22025  0-25mm*0.001/0-1in*0.00005 20 10 12 40.0*30.0*45.0
TQ22050  25-50mm*0.001/0-2in*0.00005  20  12.0   14.0   40.0*30.0*45.0
 TQ22075   50-75mm*0.001/0-3in*0.00005   20   20.0   22.0   41.0*30.0*31.0
 TQ22100   75-100mm*0.001/3-4in*0.00005   20   23.0   25.0   54.0*44.5*32.5

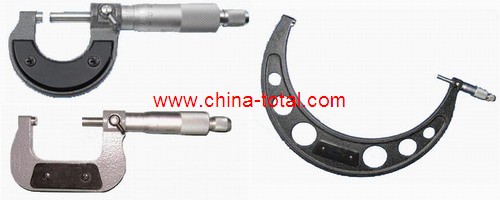

MICROMETER

Carbide measuring faces.
 Painted or chrome-plated frame.
Ratchet stop.
Item No. Specification QTY/Carton N.W. (kg) G.W. (kg) Meas (cm)
 TQ11025  0-25mm*0.01 20 9.5 10.5 42.0*22.0*20.0
 TQ11050   25-50mm*0.01  20   11.5   12.5   47.0*24.0*19.0
 TQ11075   50-75mm*0.01   20   15.0   16.0   52.0*28.0*21.0
 TQ11100   75-100mm*0.01   20   18.0   19.0   59.0*32.0*20.0
TQ11125 100-125mm*0.01
TQ11150 125-150mm*0.01
TQ11175 150-175mm*0.01
TQ11200 175-200mm*0.01
TQ11225 200-225mm*0.01
TQ11250 225-250mm*0.01
TQ11275 250-275mm*0.01

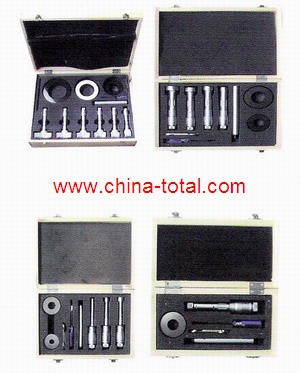

THREE POINTS INTERNAL MICROMETER

Features:
Can automatically center and measure internal bores.
Designed with high precision measurement and stable reading.
It could be used in both through hole and blind bores.
The micrometer could be connected with extension rods to measure deep bore.
Item No. Specification QTY/Carton N.W. (kg) G.W. (kg) Meas (cm)
 TT126-6-12  6-8,8-10,10-12
 TT126-11-20 11-14,14-17,17-20
TT126-20-40 20-25,25-30,30-35,35-40
TT126-40-100  40-50,50-60,.60-70,70-80,80-90,90-100
