Acid-Alkali Meter/ Acid-Alkali Concentration Meter

¡¡

SR7110 Portable Acid Meter

Portable meter, on-site test of acid concentration of resin regeneration solution during the process of water treatment, suited in power plant, petroleum, chemical, pharmacy industry, etc.

Introduction:

¡ñAcid solution concentration of electrode measurement, acid solution: H2SO4, HNO3, HCL and NaCl.
¡ñ Wide measurement range, only one electrode needed to test the full scale.
¡ñ Intelligent chip design, advanced measuring technique, easy to use.
¡ñ Options of the units such as %, mol/L, g/cm3, and g/L.
¡ñ Meter meets IP57 waterproof rating, equipped with portable case.

Specifications:

Model

SR7110

Range

0~15.00%

Resolution

0.01%

Accuracy

¡À5% read or ¡À0.5% (Whichever is greater)

Electrode

ND800-S Acid concentration in the electrode

Data Storage

300 groups

Communication Interface

no

Power

2 AA batteries(1.5V*2)

Waterproof

IP57

Other configuration

Instrument carrying case

Size and weight

Meter: 65*120*31mm/ 180g;

Carrying Case: 255*210*50mm/ 600g

¡¡

¡¡ ¡¡

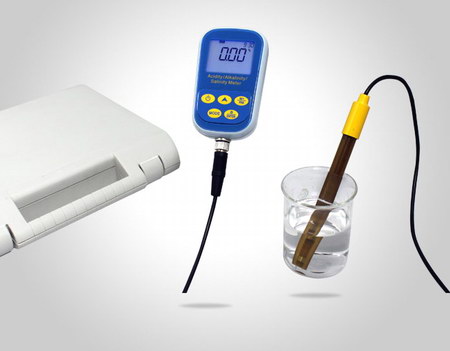

SR7120 Portable Alkali Meter

Portable meter, on-site test of alkali concentration of resin regeneration solution during the process of water treatment, suited in power plant, petroleum, chemical, pharmacy industry, etc.

Introduction:

¡ñAlkali solution concentration of electrode measurement, alkali solution: NaOH, Na2CO3, NaCl.
¡ñ Wide measurement range, only one electrode needed to test the full scale.
¡ñ Intelligent chip design, advanced measuring technique, easy to use.
¡ñ Options of the units such as %, mol/L, g/cm3, and g/L.
¡ñ Meter meets IP57 waterproof rating, equipped with portable case.

Specifications:

Model

SR7120

Range

0~15.00%

Resolution

0.01%

Accuracy

¡À5% read or ¡À0.5% (Whichever is greater)

Electrode

ND800-S Alkali concentration in the electrode

Data Storage

300 groups

Communication Interface

no

Power

2 AA batteries(1.5V*2)

Waterproof

IP57

Other configuration

Instrument carrying case

Size and weight

Meter: 65*120*31mm/ 180g;

Carrying Case: 255*210*50mm/ 600g

¡¡

¡¡

SR7150 Portable Acid-Alkali Meter
Portable meter, on-site test of acid concentration and alkali concentration of resin regeneration solution during the process of water treatment, suited in power plant, petroleum, chemical, pharmacy industry, etc.

Introduction:

¡ñAcid-Alkali solution concentration of electrode measurement, acid solution: H2SO4, HCL and HNO3£¬alkali solution: NaOH, Na2CO3, KOH.
¡ñ Acid-Alkali electrode with the patented structure, corrosion-resistant and easy-to-clean.
¡ñ Wide measurement range, only one electrode needed to test the full scale.
¡ñ Intelligent chip design, advanced measuring technique, easy to use.
¡ñ Options of the units such as %, mol/L, g/cm3, and g/L.
¡ñMeter meets IP57 waterproof rating, equipped with portable case.

Specifications:

Model

SR7150

Range

0~15.00%

Resolution

0.01%

Accuracy

¡À5% read or ¡À0.5% (Whichever is greater)

Electrode

ND800-S Acid concentration in the electrode

Data Storage

300 groups

Communication Interface

no

Power

2 AA batteries(1.5V*2)

Waterproof

IP57

Other configuration

Instrument carrying case

Size and weight

Meter: 65*120*31mm / 180g;

Carrying Case: (255*210*50)mm / 790g

¡¡

¡¡

¡¡

SR5150 Lab Acid-Alkali Meter
Lab. benchtop meter, sample testing of acid concentration and alkali concentration of resin regeneration solution during the process of water treatment, suited in power plant, petroleum, chemical, pharmacy industry, etc.

Introduction:

¡ñAcid-Alkali solution concentration of electrode measurement, acid solution: H2SO4, HCL and HNO3, alkali solution: NaOH, Na2CO3, KOH.
¡ñ Acid-Alkali electrode with the patented structure, corrosion-resistant and easy-to-clean.
¡ñWide measurement range, only one electrode needed to test the full scale
¡ñ Intelligent chip design, advanced measuring technique, easy to use.
¡ñ Options of the units such as %, mol/L, g/cm3, and g/L.

Specifications:

Model

SR5150

Range

0~15.00%

Resolution

0.01%

Accuracy

¡À5% read or ¡À0.5% (Whichever is greater)

Electrode

ND800-S Acid concentration in the electrode

Data Storage

999 groups

Communication Interface

RS232

Power

DC9V adaptor

Waterproof

IP54

Other configuration

Electrode holder Model 602

Size and weight

160*190*70mm / 880g

¡¡

¡¡

¡¡

 ( If you need user manual or E-catalogue for above meters, please ask for at: xiushunjie@163.com )
