Barcode Scanner

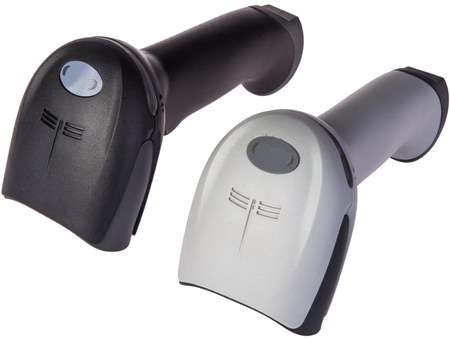

SR2012 Wired Laser Barcode Scanner

Click for big picture

Specifications:
Symbologies: 1D codes
Depth of field: 10-300mm
Resolution: 0.1mm (4 mil)
Decode Speed: 90 times/ sec.
Scanning Method: Manual/Automatic
Bite Error Rate: 1/5 million Cable: USB or PS/2 or RS232
Features:
1. Unique trigger design, very comfortable operation sense.
2. Fast and accurate in reading all 1D codes.
3. Super scanning and decoding ability, can read incomplete and fuzzy codes.
4. Service life of button reaches up to 5 million times.
5. Supporting keyboards of over 20 countries and regions.
6. Full quakeproof, waterproof, dustproof, anti-knock design and EMI shielding; Suitable for each kind of industrial environment.
7. 360∼all-directional adjustable stainless steel stand. (optional).

Parameters:

Physical Characteristics

Dimensions:

51mm x 30.61mm(width) x 21mm(height)

Voltage and Current:

5 +/-10%VDC @ 350 mA

Performance Characteristics

Light Source:

Aiming: 528 nm LED; illumination: 630 nm LED

Field of View:

34∼ V x 46∼ H (Vertical x Horizontal)

Roll / Pitch / Yaw:

360∼, ㊣65∼, ㊣60∼

Scan Performance:

Depth of Filed (from engine face)

Label Density

IE1100

Paper Label

English

Metric

5 mil (Code 39):

3.5 每 4.7 in.

9.0 每 12.0 cm

13 mil (100% UPC/EAN):

1.2 每 12.0 in.

3.0 每 30.5 cm

20 mil (Code 39):

1.2 每 16.5 in.

3.0 每 42.0 cm

PDF417 (10 Mil):

2.0 每 8.8 in.

5.0 每 22.5 cm

Data matrix (10 Mil)

2.1 每 9.4 in.

5.2 每 24.0 cm

Symbology Decode Capability

1-D:

UPC/EAN and with supplementals, Code 39, Code 39 Full ASCII, Tri-optic Code 39, RSS variants, UCC/EAN 128, Code 128, Code 128 Full ASCII, Code 93, Codabar (NW1), Interleaved 2 of 5, Discrete 2 of 5, MSI, Codell, IATA, Bookland EAN, Code 32

PDF417 (and Variants):

PDF417, microPDF417 and composite codes

Postal:

U.S. Postnet and Planet, U.K., Japan, Australian, and Dutch

2-D:

MaxiCode, DataMatrix (ECC 200), and QR Code

Print Contrast:

25% minimum reflectance

Motion Tolerances:

Horizontal velocity: 5 in. (12.7 cm) per second

Interfaces Supported:

IE1100: RS-232C (Standard, Nixdorf, ICL, and Fujitsu); USB (Standard, IBM SurePOS, Macintosh) and Synapse connectivity allows for connectivity to all of the above plus many non-standard interfaces.

Imaging Characteristics

Image (Pixels):

0.35 Megapixel 752 pixels H x 480 pixels V

Graphics Format Support:

Images can be exported as Bitmap, Jpeg, and Tiff

Image Transfer Speed:

USB 1.1: Up to 12 Megabits/secondRS232: Up to 115 kb baud rate

Image Transfer Time:

Typical USB application is ~ 0.2 seconds with a compressed Jpeg of 100 kb

User Environment

Operating Temperature:

32∼ to 122∼ F / 0∼ to 50∼ C

Storage Temperature:

-40∼ to 158∼ F / -40∼ to 70∼ C

Humidity:

5% to 95%, non-condensing

Drop/Shock Specifications:

Withstands 2000g to concrete

Ambient Light Immunity:

Immune to normal artificial indoor and natural outdoor (direct sunlight) lighting.

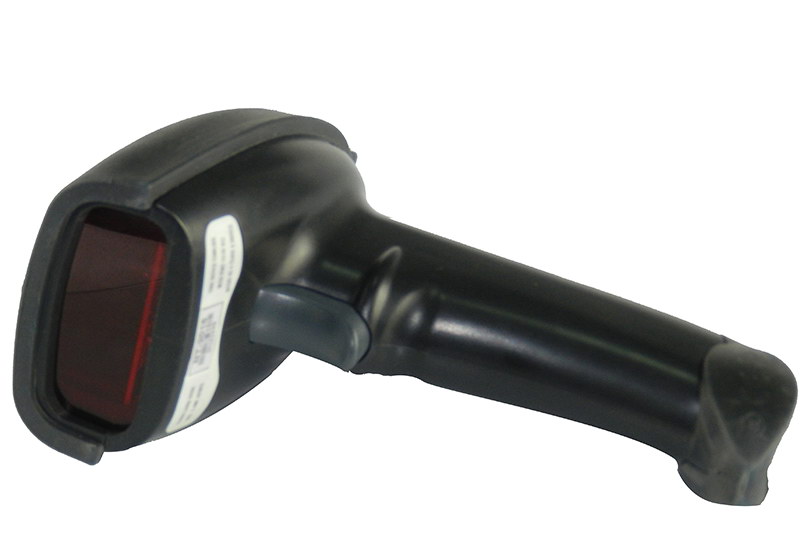

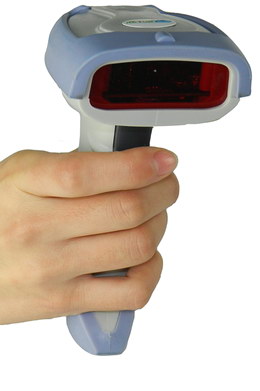

SR2015 Wired Laser Barcode Scanner

Click for Black color

 Specifications:
 Symbologies: 1D codes
 Depth of field: 10-800mm
 Resolution: 0.1mm (4 mil)
 Decode Speedㄩ120 times/ sec.
 Scanning Method: Manual/Automatic
 Bite Error Rate: 1/5 million
 Cable: USB or PS/2 or RS232 Stand: painted steel, all directions adjustable

 Features:
 1. Unique trigger design, very comfortable operation sense.
 2. Fast and accurate in reading all 1D codes.
 3. Programmed to better read incomplete and fuzzy codes.
 4. Service life of button reaches up to 5 millions times
 5. Supporting keyboards of over 20 countries and regions.
 6. 360∼all direction-adjustable stainless steel cradle. (optional)
 7. Full quakeproof, waterproof, dustproof, antiknock-design and EMI Shielding; Suitable with each kind of industrial environment.

Parameters:

Performance

Type of illuminant

650nnm laser ( safe visible light )

Decode Capability

Code 39, Full ASC II, Code bar, Industrial 2 of 5, Interleave 2 of 5, Matrix 2 of 5, Code 93, Code 128, Code 32, Standard code 39, EAN 128,  MSI,  EAN 8&13,  UPCA&E,  Plessey,  Databar14,  TELEPE

Supported interfaces

RS232 / PS2 keyboard / USB

Operation

Manual/Automatic

Precision

≡4 mil (0.10mm)

Depth of scan field

10-500mm

Decode speed

90 times/second

Decode error rate

Less than 1/5 million

Print Contrast Signal

≡30∼

Light intensity

Daylight, 4000Lux Max

scan angle

Yaw(Skew)45∼& Pitch60∼

Safety

Full quakeproof, waterproof, dustproof, antiknock-design and EMI Shielding

Mechanical/ Electrical

Power voltage

DC 5V

Current

Operation 120mA; Idle 10mA

Scanner Material

Eco-friendly, ABS + Rubber

Physical

Exterior dimension

L*W*H (mm): 170*75*106

Materials

Plastic

Weight

170g

Environment

Operating humidity

5%-85%

Storage humidity

5%-85%

Operating temperature

-20∼C-45∼C

Storage temperature

-20∼C-45∼C

Safety performance

ROHS class 2 laser product, FCC class B and CE

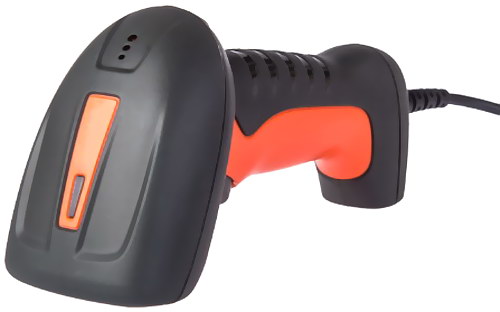

SR1208 Laser Barcode Scanner

Click for Orange color

Specifications:
Symbologies: 1D codes
Depth of field: 10-650mm
CPU: 32 Bit
Resolution: 0.076mm (3 mil)
Decode Speedㄩ280 times/ sec.
Scanning Method: Manual/Automatic
Bite Error Rate: 1/8 million
With induction, auto light anchor and light out
Port: USB or PS/2 or RS232,support HID, SPP protocol
Features:
1. Unique trigger design, very comfortable operation sense.
2. 32 Bit CPU high resolution
3. Fast and accurate in reading all 1D codes.
4. Programmed to better read incomplete and fuzzy codes.
5. Service life of button reaches up to 5 millions times
6. Supporting keyboards of over 20 countries and regions.
7. 360∼ all direction-adjustable stainless steel cradle. (optional)
8. Full quakeproof, waterproof, dustproof, antiknock-design and EMI Shielding; Suitable with each kind of industrial environment.
Parameters:

Type of illuminant

650nnm laser (safe visible light )

Decode Capability

Code 39, Full ASCj, Code bar, Industrial 2 of 5, Interleave 2 of 5, Matrix 2 of 5, Code 93, Code 128, Code 32, Standard code 39, EAN 128,  MSI,  EAN 8&13,  UPCA&E,  Plessey,  Databar14,  TELEPE

Supported interfaces

RS232 / PS2 keyboard / USB

Operation

Manual/Automatic

Precision

≡4 mil (0.10mm)

Depth of scan field

10-500mm

Decode speed

90 times/second

Decode error rate

Less than 1/5 million

Print Contrast Signal

≡30∼

Light intensity

Daylight, 4000Lux Max

scan angle

Yaw(Skew)45∼& Pitch60∼

Safety

Full quakeproof, waterproof, dustproof, antiknock-design and EMI Shielding

Mechanical/ Electrical

Power voltage

DC 5V

Current

Operation 120mA; Idle 10mA

Scanner Material

Eco-friendly, ABS + Rubber

Physical

Exterior dimension

L*W*H (mm): 170*75*106

Materials

Plastic

Weight

170g

Environment

Operating humidity

5%-85%

Storage humidity

5%-85%

Operating temperature

-20∼C-45∼C

Storage temperature

-20∼C-45∼C

Safety performance

ROHS class 2 laser product, FCC class B and CE

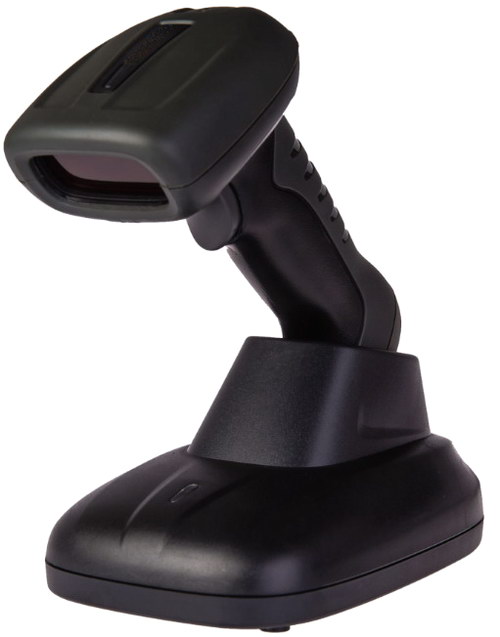

SR1209 Wireless Barcode Scanner

Click for Black color

Features
1. It could be used as a collector, memory 4M can be extended to 8M
2. Never lose data, clear warning.
3. Intelligent uploading; can choose to upload data of last scans and resume uploading from breakpoints.
4. No-messy-code programmed, data counting, repeated code and out of the base range warning, ID display.
5. Beeper and light indicates if the scanner is out of the base range and scanning will automatically switch to storage mode.
6. Support one to one, one to many, many to one operation; and each base can respond to up to 254 scanners.
7. The terminal communicates with the base at long distance of 300 meters indoors or 500 meters outdoors
8. 1200MA replaceable lithium battery enables 6-10 hours continuous use after full charge and avoids trouble of returning to factory for replacing battery. Base supports data transmission and battery charging.
9. Germany imported quartz scanning window; effective light penetration, scratch-proof.
10. Supports USB, PS2, RS232 and other designated interface.

Parameters

Title

Parameter

Operating Channel

433MHz|SM

Communication Distance

500M(outdoor)

CPU

32 Bit

Type of illuminant

650nm laser

Operation way

Hand-held or bracket-held installation

Bit Error Rate(BER)

1/ 800 million

Safety Performance

Meet the Grade I National Criteria for Laser Safety

Symbologies

EAN-8, EAN-13, UPC-A, UPC-E, Code 39, Code 93, Code 128, EAN128, Coda bar, Industrial 2 of 5, Interleave 2 of 5, Matrix 2 of 5, MSI, China Zip Code, databar14, TELEPE, GS1 DataBar.

Supported Interface

RS232, PS2 Keyboard, USB, etc.

Scanning Method

Automatic/ Manual

Transmission Rate

RS232 Baudrate:2400-38400

Resolution

3mil

Depth of Field

15-800mm(pos0.9)

Decoding Speed

200 times/second

Reading Angle (pitch)

60∼

Reading Angle (skew)

45

Operating Temperature

-20∼C-45∼C

Storage Temperature

-20∼C-45∼C

Operating Humidity

5%-85%

Storage Humidity

5%-85%

Power Voltage

5V

Working Current

68mA

Static Current

48mA

Light Intensity

Daylight, 4000lux max

Electromagnetic Interference

Comply with en50081, part1 criteria

External Electromagnetic Interference Resistance

Comply with en50082, part1 criteria

Materials

ABS + PC

Weight

Reader: 225g; Base (with antenna): 60g

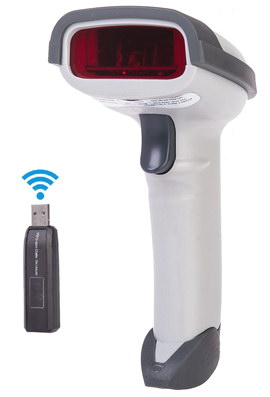

SR9600 Wireless Barcode Scanner

Specifications:
Symbologies: 1D codes
Depth of field: 10-800mm
Resolution: 0.01mm (4 mil) Communication Distance: 300-500m
Decode Speed: 120 times/ sec.
Bite Error Rate: 1/5 million
Battery: Li-battery, last 6 hours after full charged.
Features:
1. Effective communication distance is 300-500m.
2. The scanner will emit three short beeps when out of effective communication distance
3. 250k wireless transmission rate, high speed to microsecond delay transmission
Unique frequency hopping technology enables superior anti-jamming ability
Self-definable ID identifies the data origin;
4. Auto data detection during ensures transmission accuracy
Easy inventory model, easy to operate by USB data receiver
Parameters:

Light Source

650nm laser (safe visible light)

Operating Channel

433MHz|SM

Communication Distance

150m indoor;300m outdoor

Supported Symbologies

Code 39,full ASCII, code bar, industrial 2 of 5, interleave 2 of 5, matrix 2 of 5, code 93, code 128, code 32, standard code 93, EAN 128, MSI, EAN8&13,UPCA&E, Plessey, DataBar14, telepe and all 1D barcode

Precision

≡ 4 mil ( 0.10mm )

Depth of Scan Field

10-800mm

Interface

USB

Operation

Manual

Decode Speed

120times/second

Light Intensity

Daylight,4000Lux

Decode Error Rate

less than 1/8 million

Print Contrast Signal

≡30∼

Scan Angel

Yaw (Skew) 45∼  Pitch 60∼

Safety

Full quakeproof, dustproof, antiknock-design and EMI Shielding

Mechanical/ Electrical

Voltage

5V

Current

Operation 68mA; Idle 48mA

Scanner Material

Eco-friendly

Environment

Operation Temperature

-20∼C - 45∼C

Storage Temperature

-20∼C - 45∼C

Humidity

5% - 85%

SR2028 Wireless Barcode Scanner

Specifications:
Symbologies: 1D codes
Depth of field: 10-800mm
Resolution: 0.01mm (4 mil) Communication
Distance: 300-500m
Decode Speedㄩ120 times/ sec.
Bite Error Rate: 1/5 million
Battery: Li-battery, last 6 hours after full charged.
Features:
1.Elegant appearance, humanized design
2.Long communication distance;150m indoors and 300m outdoors
3.USB data receiver, play and plug, easy to operate
4.Supporting network construction;1 base to 254 readers or 15 bases to 1 reader; ID display
5.Repeated code detection; no messy-code programmed
6.Free of charging trouble; battery lasts 6-10 hours after full charged; base functions as receiver and charger
Parameters:

Light Source

650nm laser (safe visible light)

Operating Channel

433MHz|SM

Communication Distance

150m indoor;300m outdoor

Supported Symbologies

Code 39,full ASCII, code bar, industrial 2 of 5, interleave 2 of 5, matrix 2 of 5, code 93, code 128, code 32, standard code 93, EAN 128, MSI, EAN8&13,UPCA&E, Plessey, DataBar14, telepe and all 1D barcode

Precision

≡0.1mm

Depth of Scan Field

10-800mm

Interface

USB,RS232,PS/2

Operation

Manual/Automatic

Decode Speed

120times/second

Light Intensity

Daylight,4000Lux

Decode Error Rate

less than 1/8 million

Print Contrast Signal

≡30∼

Scan Angel

Yaw (Skew) 45∼ Pitch 60∼

Safety

Full quakeproof, dustproof, antiknock-design and EMI Shielding

Mechanical/ Electrical

Voltage

5V

Current

Operation 68mA; Idle 48mA

Scanner Material

Eco-friendly

Environment

Operation Temperature

-20∼C - 45∼C

Storage Temperature

-20∼C - 45∼C

Humidity

5% - 85%

 ( If you need user manual or E-catalogue for above meters, please ask for at: xiushunjie@163.com )
