SRBR-2                                           SRBR-4-3

SRBR-8-4                                              SRBR-100

Model SRBR-2, SRBR-4-3, SRBR-8-4, SRBR-100 Brinell Rockwell Hardness Tester

INSTRUMENT FEATURES

Add the functions of Brinell hardness test on PHBR series testers.

Combined Brinell and Rockwell test functions in one instrument.

Test method follows Brinell and Rockwell hardness test and

accuracy is in accordance with ISO 6506, 6508 and ASTM E10, E18.

Different modes and anvils are available for parts in various sizes and shapes.

Traceable standard hardness blocks.

Traceable test force.

Indenter inspected with standard Rockwell hardness tester.

TECHNICAL PARAMETERS

Rockwell initial test force 10Kg

Rockwell total test force: 60Kg,100Kg,150Kg

Brinell test force: 62.5Kg,125Kg,187.5Kg

Rockwell indenter: 120°diamond cone, 1,588mm hard alloy ball

Brinell test ball: 2.5mm, 5mm hard alloy ball

Indicator Error: complies with ISO and ASTM.

Repeatability Error: complies with ISO and ASTM.

Test resolution: Rockwell 0.5HR, Brinell 0.005mm(indentation diameter)

Test range: Rockwell HRA, HRB, HRC, Brinell 16~650HBW

Application range: Rockwell for products or semi-finished products of common metals, including steel, cooper, aluminum, carburized layer, hard alloy, etc.

Brinell for castings, forgings, steel raw materials, non-ferrous metal.

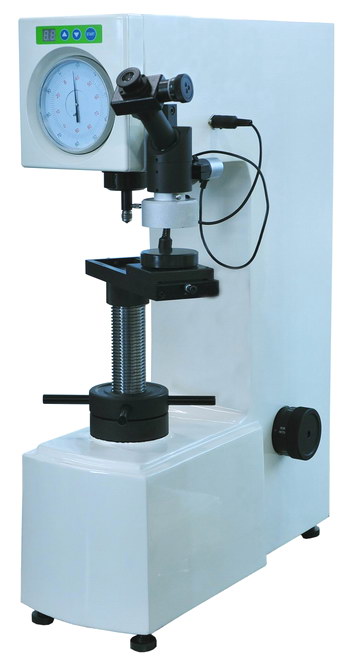

Model SRBR-187.5 Motorized Brinell Rockwell &Vickers Hardness Tester
Description:
It serves the purpose of measuring the hardness of ferrous, non-ferrous metals, hardmetals, carburized layers and chemical treated layers.
The Universal version enables the execution of Rockwell standard (150-60-100kgf) Brinell (31.25-62.5-187.5kgf) and Vickers tests (10-30-60-100kgf).
The microscope together with the instrument allows fast and reliable measurements of Brinell and Vickers indentations both in the analogue and digital version.
The digital version permits to determine the hardness value in the fast and easy way.
Specifications

1. The Initial Test Force: 98.07N (10Kg); Tolerance: ± 2.0%
2. The Tolerance of Total Test Force: ± 1.0%
2.1 The Test Force of Brinell Hardness: 294.2N(30kg), 306.5N (31.25kg), 612.9N(62.5kg), 980.7N(100kg), 1893N(187.5kg)
2.2 The Test Force of Rockwell Hardness: 588.4N (60kg), 980.7N (100kg), 1471N(150kg)
2.3 The Test Force of Vickers Hardness: 294.2N (30Kg), 980.7N (100Kg)
3. The Indenter Specifications:
3.1 The diamond Rockwell indenter
3.2 The diamond Vickers indenter
3.3 The φ1.5875 mm, φ2.5 mm, φ5 mm ball indenter
4. The Power Source and the Voltage: AC220V±5%, 50-60 HZ
5. Time-delayed control: 2-60 seconds, can be adjusted

6. The Distance from the Indenter Central Point to the Instrument Body: 165mm.
7. The Max. Height of the Specimen:
7.1 The Max. Height of the Specimen for Rockwell Hardness: 170mm
7.2 The Max. Height of the Specimen for Brinell & Vickers Hardness: 100mm
8. The Amplification of Objective: 37.5×; 75×
9. The Overall Dimension of Hardness Tester (Length*Width*Height): 520*215*700mm
10. The Total Weight of the Tester: 78kg

Rockwell Hardness
11. The Tolerance of Rockwell Hardness Display Value

Brinell Hardness
12.The repetition and tolerance of displayed Value for Brinell hardness tester

Vickers Hardness
13.The Tolerance and Repetition of Displayed Value for Vickers Hardness Tester

Packing List

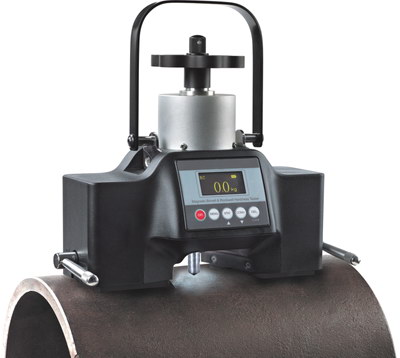

Model SRBR-200 Magnetic Digital Type Brinell Rockwell Hardness Tester

Features of Digital Magnetic Brinell& Rockwell Hardness Tester
1.Accuracy: Accurate force value. Test accuracy of Indentation Brinell Method as well as Rockwell test comply with ISO and ASTM standard. Depth-measuring method accuracy can satisfy on-site test request.
2.Speedy: Simple operation, high efficiency, test time less than 10S.
3.Stability: Excellent stability and repeatability, reliable values transfer, keep test accuracy unchanged for a long time.
4.Testing On-site: Insensitive to temperature changing on workshop.
5.Unique Method: Test by absorbing to iron and steel parts, and it can finish the test by unilaterally touching the parts. It can test any dimension parts, especially steel tubes and weld on pipes.

Technical Parameter of Digital Magnetic Brinell & Rockwell Hardness Tester
Initial test Force: 10kg
Total Test Force: 60kg, 100kg, 150kg,187.5kg
Testing Range:  20-88HRA, 20-100HRB, 20-70HRC, and 150-450HBWT
Testing Resolution: 0.1HR or 1HBW
Indication Error: complying with ISO,ASTM standards
Repeatability Error: complying with ISO,ASTM standards
Test Force Error: ≤1%
Operating Temperature:  5-45℃
Net Weight:  5.3kg
Test Piece Surface: Flat:

 Area≥195mm×60mm, Thickness≥5mm
Cylinder: Diameter≥60mm ,Length≥200mm ,Thickness≥8mm

Standard Assembly
Tester, 120° Diamond Indenter
1.588mm Carbide Alloy Ball Indenter
2.5mm Carbide Alloy Ball Indenter
Rockwell Hardness Block
Brinell Hardness Block
40X Reading Microscope
Seat Iron, Recharger
Battery Box, Carrying Case

SRBR-200 Magnetic Digital Brinell and Rockwell Hardness Tester are designed on the basis of SRRH-200 Magnetic Digital Rockwell Hardness Tester; it has the same appearance and mechanical structure as SRRH-200, which can make accurate Brinell hardness test with conventional indentation method of ISO 6506.2 and ASTM E10. it can also make rapid Brinell hardness test with depth-measuring method of ASTM E103, and read hardness value directly. At the same time it also can do Rockwell hardness test according to Rockwell hardness testing method in ISO 6508.2 and ASTM E18. These functions can meet the demand of precise and rapid Brinell hardness testing on-site of large steel and iron parts. Simplified operation of Rockwell hardness and depth-measuring Brinell hardness very simple with high efficiency.
This instrument stores an accurate basic hardness, that is depth curve made from plenty hardness blocks. It also stores several Brinell curves of common materials. We can supply the service of making precise Brinell curve of common material according to customers' requirement. Advanced curve correction methods can be used to test a variety of special material. This instrument can check and calibrate the accuracy on-site by precise indentation method at any time.
Only if there is suitable surface, it could test those too large or heavy iron and steel workpieces whereas the desk tester could not. It could test the hardness of steel plates, steel pipes, profile steel, bearings, moulds; boilers, pressure vessels, and weld bead on pressure pipes; castings, forge pieces and large and medium-sized heating parts with available surface.It is suitable for testing a large batch of parts piece by piece on site. In a wide range of manufacture industry, it could replace Leeb hardness tester which is not accurate or reliable enough.

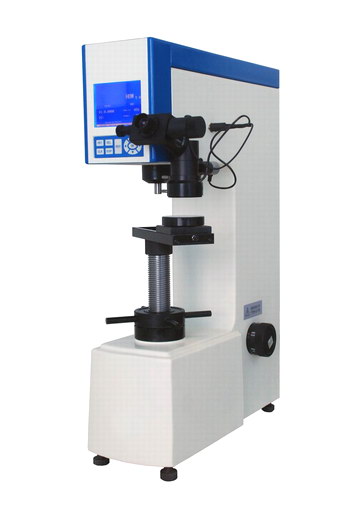

Model SRBR-570 Digital Multi-functional Hardness Tester (Brinell & Rockwell & Vicker Hardness Tester)

Technical specifications
1.The Power Source and the Voltage: AC220V±5%, 50-60 Hz
2.Time-delayed control: 0-60 seconds, adjustable
3.The Distance from the Indenter Center to the Instrument Body: 165mm
4.Overall Dimension (Length × Width × Height): 551×260×800 mm
5.The Net Weight of the Tester: 80kg (Approx)

Rockwell Hardness
6.Specifications of Rockwell Hardness

7.The Tolerance of Rockwell Hardness Display Value

Brinell Hardness
8.The Technical Specification of Brinell Hardness Tester

9. The Tolerance and Repetition of Displayed Value for Brinell Hardness Tester

Vickers Hardness
10. Technical Specifications of Vickers Hardness

11. The Tolerance and Repetition of Displayed Value for Vickers Hardness Tester

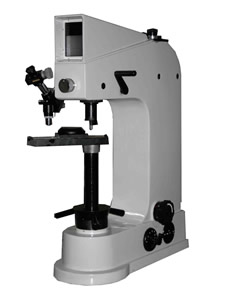

Model TH722 Brinell & Rockwell & Vickers Optical Hardness Tester

Features:

·Suitable for testing the hardness of ferrous, non-ferrous metals, hard metals, carburized layers and chemical treating layers
·Multiple testing method: Brinell & Rockwell & Vickers
·Different kinds of testing force and indenter can be selected
·Adopt test force transformation framework and optical measuring instruction system
·Equipped with indentation measuring device

Technical Specification:

Standard delivery:

Standard Accessories (The Packing List):

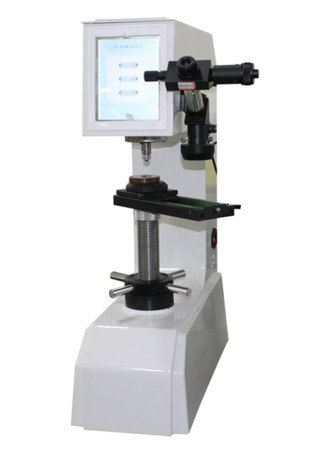

TH727 Universal hardness tester (Touch Screen)

Main Features:

Equipped Brinell, Rockwell, Vickers test methods;

Touch-screen interface, easy to operate, in any language version;

Boot with no need to install weights and no installation;

Electric load closed-loop control, automatic load is applied;

Test force automatic correction, each file is automatically compensated force, improve the accuracy of the force a number of levels;According to GB / ASTM hardness automatic conversion;

Rockwell automatically correct curvature radius;

Set a password to protect setup parameters, more samples and testing information;

Measuring U disk to save data to EXCEL format for easy editing and processing;

Modular design for easy maintenance.

Technic Parameter:
