Digital Clamp Meter

　

(Digital Clamp On Meter, Digital Clamp-On Meter, Digital Clamp Multimeter, Digital Clamp-On Multimeter, AC Clamp On Meter, Clamp-On Meter)

　

PAGE1          PAGE2          PAGE3          PAGE4          PAGE5          PAGE6

　

　

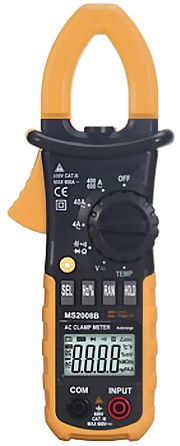

SR2008B Digital AC Clamp Meter

Specifications

Range

Accuracy

DC Voltage

400mV/4V/40V/400V

600V

±(0.8%+2)

±(1.0%+2)

AC Voltage

4V/40V/400V

600V

±(1.0%+10)

±(1.2%+10)

AC Current

4A/40A/400A/600A

±(3.0%+10)

Resistance

400Ω/4kΩ/40kΩ/400kΩ/4MΩ

40MΩ

±(1.2%+2)

±(2.0%+5)

Capacitance

50nF/500nF/5μF/50μF/100μF

±(4.0%+5)

Frequency

50Hz/500Hz/5kHz/50kHz/100kHz

±(1.0%+2)

Duty cycle

1%~99%

±(3.0%+2)

Temperature(°C)

-20°C~750°C

±(2.0%+2)

Feature

Display

4000 Counts

Auto and manual range

Yes

Data hold

Yes

Work light

Yes

Diode test

Yes

Continuity

Yes

Back light

Yes

General

Power supply

1.5V(AAA)x3 Batteries

Weight

Approx 245g

Size

280mm*78mm*35mm

Jaw Size

Ø26mm

Safety Rating

CE CAT.III600V RoHS

　

　

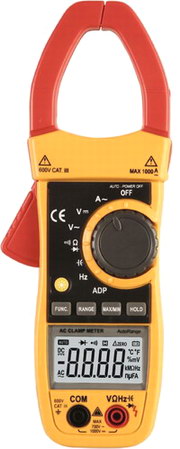

SRA315/SRA312 AC Digital Clamp Meter

Special Functions

SRA312

SRA315

Diode Test

YES

YES

Auto Range

YES

YES

Auto /Manual range

YES

YES

Ture RMS Measurenent

　

YES

Data Hold

YES

YES

MAX/MIN Value Measurement

YES

YES

Back Light

YES

YES

Continuity Buzzer

YES

YES

Auto Power Off

YES

YES

Max. Display

5999

5999

Basic Functions

Range

Accuracy

SRA312

SRA315

DC Voltage

6V/60V/600V
1000V

±(0.8%+5)
±(1%+2)

±(0.8%+5)
±(1%+2)

AC Voltage

6V/60V/600V/700V

±(1.2%+5)

±(1.2%+5)

AC Current

600A
1000A

±(2.5%+5)
±(3%+5)

±(2.5%+5)
±(3%+5)

Resistance

600Ω/6kΩ/60kΩ/600kΩ/6MΩ
60MΩ

±(1%+3)
±(5%+5)

±(1%+3)
±(5%+5)

Capacitance

600nF/6μF/60μF/600μF /1000μF

±(4%+5)

±(4%+5)

Frequency

40Hz/600Hz/6kHz/60kHz/100kHz

±(0.1%+2)

±(0.1%+2)

ADP Measurement

600mV

±(3%+5)

±(3%+5)
　 　

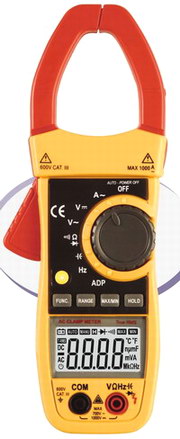

SRA310/SRA310C AC Clamp Meter

Basic Functions

Range

Accuracy

SRA310

SRA310C

DC Voltage

1000V

±(1%+2)

±(1%+2)

AC Voltage

750V

±(1%+2)

±(1%+2

AC Current

200mA/20A/1000A

±(2%+5)

±(2%+5)

Resistance

200Ω/2KΩ

±(1%+3)

±(1%+3)

Temperature

-40°C~750°C

　

±(1%+3)

Special Functions

SRA310

SRA310C

Diode Test

YES

YES

Back Light

YES

YES

Continuity Buzzer

YES

YES

Max. Display

1999

1999
　 　

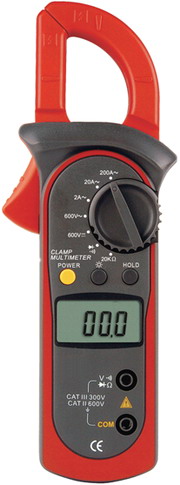

SRT200A

SRT200A Modern Digital Clamp Multimeters

SPECIFICATIONS

Basic Functions

Range

Best Accuracy

DC Voltage

600V

±(1%+3)

AC Voltage

600V

±(1.5%+5)

AC Current

2A/20A/200A

±(1.5%+5)

Resistance

20kΩ

±(1%+4)

Special Functions





Display Count

1999

Yes

Manual Range



Yes

Jaw Capacity



Yes

Diode

　

Yes

Continuity Buzzer



Yes

Low Battery Display



Yes

Data Hold



Yes

LCD Backlight



Yes

Input Impedance for DC
Voltage Measurement

Around 10MΩ

Yes

GENERAL CHARACTERISTICS

Power

9V Battery (6F22)

LCD Size

35.6 x 18mm

Product Colour

Red and Grey

Product Net Weight

260g

Product Size

208 x 76 x 30mm

Standard Accessories

Test Lead, Batteries, English Manual, Carrying Bag

Standard Individual Packing

Gift Box

Standard Quantity Per Carton

40pcs

Standard Carton Measurement

540 x 490 x 335mm (0.087 CBM Per Standard Carton)

Standard Carton Gross Weight

23kg
　 　

SRT201

SRT201 Digital Clamp Multimeters

SPECIFICATIONS

Basic Functions

Range

Best Accuracy

DC Voltage

200mV/2V/20V/200V/600V

±(0.8%+1)

AC Voltage

2V/20V/200V/600V

±(1.2%+5)

AC Current

2A/20A/200A/400A

±(1.5%+5)

Resistance

200Ω/2kΩ/20kΩ/200kΩ/2MΩ/20MΩ

±(1%+2)

Special Functions





Auto Ranging



Yes

Diode



Yes

Continuity Buzzer



Yes

Max Hold



Yes

Data Hold



Yes

Full Icon Display



Yes

Sleep Mode



Yes

Low Battery Display



Yes

Input Impedance for DC
Voltage Measurement

Around 10MΩ

Yes

Max Display

1999

Yes

GENERAL CHARACTERISTICS

Power

3V Battery (AAA x 2)

LCD Size

35.6 x 18mm

Product Colour

Red and Grey

Product Net Weight

220g

Product Size

210 x 75.6 x 30mm

Standard Accessories

Test Lead, Batteries, English Manual, Carrying Bag

Standard Individual Packing

Gift Box

Standard Quantity Per Carton

40pcs

Standard Carton Measurement

540 x 495 x 335mm (0.09 CBM Per Standard Carton)

Standard Carton Gross Weight

23kg
　 　

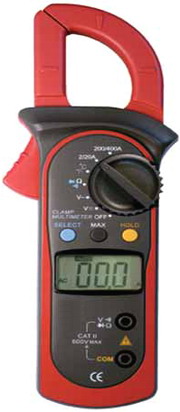

SRT202

SRT202 Digital Clamp Multimeters

SPECIFICATIONS

Basic Functions

Range

Best Accuracy

DC Voltage

200mV/2V/20V/200V/600V

±(0.8%+1)

AC Voltage

2V/20V/200V/600V

±(1.2%+5)

AC Current

2A/20A/200A/400A

±(1.5%+5)

Resistance

200Ω/2kΩ/20kΩ/200kΩ/2MΩ/20MΩ

±(1%+2)

Temperture(°C)

-40°C~1000°C

±(1%+3)

Temperture(°F)

-40oF~1832oF

±(1%+6)

Special Functions





Auto Ranging



Yes

Diode



Yes

Continuity Buzzer



Yes

Max Hold



Yes

Data Hold



Yes

Full Icon Display



Yes

Sleep Mode



Yes

Low Battery Display



Yes

Input Impedance for DC
Voltage Measurement

Around 10MΩ

Yes

Max Display

1999

Yes

GENERAL CHARACTERISTICS

Power

3V Battery (AAA x 2)

LCD Size

35.6 x 18mm

Product Colour

Red and Grey

Product Net Weight

220g

Product Size

210 x 75.6 x 30mm

Standard Accessories

Test Lead, Batteries, English Manual,
Point Contact Temperature Probe, Carrying Bag

Standard Individual Packing

Gift Box

Standard Quantity Per Carton

40pcs

Standard Carton Measurement

540 x 495 x 335mm (0.09 CBM Per Standard Carton)

Standard Carton Gross Weight

23kg
　 　

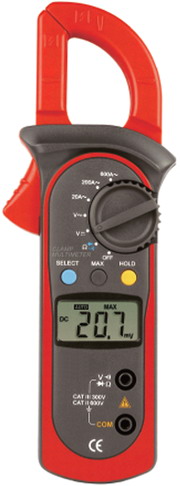

SRT202A

SRT202A Digital Clamp Multimeters

SPECIFICATIONS

Basic Functions

Range

Best Accuracy

DC Voltage

200mV/2V/20V/200V/600V

±(0.8%+1)

AC Voltage

2V/20V/200V/600V

±(1.2%+5)

AC Current

20A/200A/600A

±(1.5%+5)

Resistance

200Ω/2kΩ/20kΩ/200kΩ/2MΩ/20MΩ

±(1%+2)

Special Functions





Manual Range



Yes

Jaw Capacity

28mm

Yes

Diode



Yes

Continuity Buzzer



Yes

Low Battery Display



Yes

Data Hold



Yes

Max Mode



Yes

Min Mode



Yes

Input Impedance for DC
Voltage Measurement

Around 10MΩ

Yes

GENERAL CHARACTERISTICS

Power

9V Battery (6F22)

LCD Size

35.6 x 18mm

Product Colour

Red and Grey

Product Net Weight

220g

Product Size

210 x 75.6 x 30mm

Standard Accessories

Test Lead, Batteries, English Manual, Carrying Bag

Standard Individual Packing

Gift Box

Standard Quantity Per Carton

40pcs

Standard Carton Measurement

540 x 495 x 335mm (0.09 CBM Per Standard Carton)

Standard Carton Gross Weight

23kg
　 　

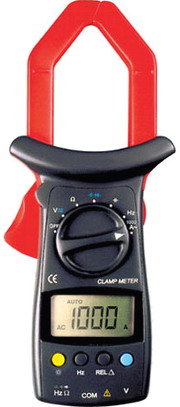

SRT205

SRT205 Digital Clamp Multimeters

SPECIFICATIONS

Basic Functions

Range

Best Accuracy

DC Voltage

400mV/4V/40V/400V/600V

±(0.8%+1)

AC Voltage

4V/40V/400V/600V

±(1.2%+5)

AC Current

400A/1000A

±(1.5%+5)

Resistance

400Ω/4kΩ/40kΩ/400kΩ/4MΩ/40MΩ

±(1%+2)

Capacity

40nF/400nF/4mF/40mF/200mF

±(3%+5)

Frequency

10Hz~10MHz

±(0.1%+3)

Duty Cycle

0.1%~99.9%

Yes

Special Functions





Relative Mode

Yes

Diode



Yes

Continuity Buzzer



Yes

Full Icon Display



Yes

Sleep Mode



Yes

Low Battery Display



Yes

Input Impedance for
DC Voltage Measurement

Around 10MΩ
　

Yes

Data Hold



Yes

Auto Ranging



Yes

Display Backlight



Yes

Max. Display

3999

Yes

GENERAL CHARACTERISTICS

Power

9V Battery (6F22)

LCD Size

52 x 27mm

Product Colour

Red and Grey

Product Net Weight

530g

Product Size

260 x 104 x 52mm

Standard Accessories

Test Lead, Battery, English Manual, Carrying Bag

Standard Individual Packing

Gift Box

Standard Quantity Per Carton

20pcs

Standard Carton Measurement

530 x 370 x 474mm (0.093 CBM Per Standard Carton)

Standard Carton Gross Weight

27.5kg

　 　

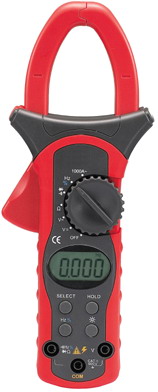

SRT205A

SRT205A Digital Clamp Multimeters

SPECIFICATIONS

Basic Functions

Range

Best Accuracy

DC Voltage

400mV/4V/40V/400V/600V

±(0.8%+1)

AC Voltage

4V/40V/400V/600V

±(1.2%+5)

AC Current

400A/1000A

±(1.5%+5)

Resistance

400Ω/4kΩ/40kΩ/400kΩ/4MΩ/40MΩ

±(1%+2)

Frequency

10Hz~10MHz

±(0.1%+3)

Duty Cycle

0.1%~99.9%

Yes

Special Functions





Auto Ranging



Yes

Diode



Yes

Continuity Buzzer



Yes

Relative Mode



Yes

Data Hold



Yes

Display Backlight



Yes

Full Icon Display



Yes

Sleep Mode



Yes

Low Battery Display



Yes

Input Impedance for
DC Voltage Measurement

Around 10MΩ
　

Yes

Max. Display

3999

Yes

GENERAL CHARACTERISTICS

Power

9V Battery (6F22)

LCD Size

37 x 18mm

Product Colour

Red and Grey

Product Net Weight

350g

Product Size

236 x 97 x 40mm

Standard Accessories

Test Lead, Battery, English Manual, Carrying Bag

Standard Individual Packing

Gift Box

Standard Quantity Per Carton

20pcs

Standard Carton Measurement

530 x 360 x 385mm (0.073 CBM Per Standard Carton)

Standard Carton Gross Weight

Around 17kg

　 　

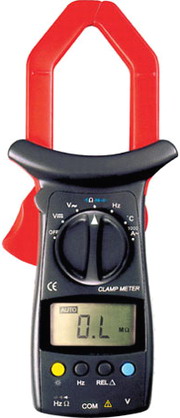

SRT206

SRT206 Digital Clamp Multimeters

SPECIFICATIONS

Basic Functions

Range

Best Accuracy

DC Voltage

400mV/4V/40V/400V/600V

±(0.8%+1)

AC Voltage

4V/40V/400V/600V

±(1.2%+5)

AC Current

400A/1000A

±(1%+5)

Resistance

400Ω/4kΩ/40kΩ/400kΩ/4MΩ/40MΩ

±(1%+2)

Capacity

40nF/400nF/4mF/40mF/200mF

±(3%+5)

Frequency

10Hz~10MHz

±(0.1%+3)

Temperature (°C)

-40°C~1000°C

±(1%+3)

Duty Cycle

0.1%~99.9%

Yes

Special Functions





Relative Mode

Yes

Diode



Yes

Continuity Buzzer



Yes

Full Icon Display



Yes

Sleep Mode



Yes

Low Battery Display



Yes

Input Impedance for
DC Voltage Measurement

Around 10MΩ
　

Yes

Data Hold



Yes

Auto Ranging



Yes

Display Backlight



Yes

Max. Display

3999

Yes

GENERAL CHARACTERISTICS

Power

9V Battery (6F22)

LCD Size

52 x 27mm

Product Colour

Red and Grey

Product Net Weight

530g

Product Size

260 x 104 x 52mm

Standard Accessories

Test Lead, Point Contact, Temperature Probe, Battery, English Manual, Carrying Bag

Standard Individual Packing

Gift Box

Standard Quantity Per Carton

20pcs

Standard Carton Measurement

530 x 370 x 474mm (0.093 CBM Per Standard Carton)

Standard Carton Gross Weight

27.5kg

　 　

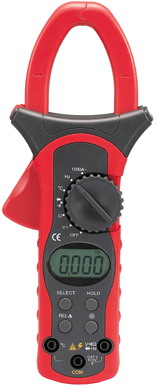

SRT206A

SRT206A Digital Clamp Multimeters

SPECIFICATIONS

Basic Functions

Range

Best Accuracy

DC Voltage

400mV/4V/40V/400V/600V

±(0.8%+1)

AC Voltage

4V/40V/400V/600V

±(1.2%+5)

AC Current

400A/1000A

±(1.5%+5)

Resistance

400Ω/4kΩ/40kΩ/400kΩ/4MΩ/40MΩ

±(1%+2)

Temperature (°C)

-40oC~1000oC

±(2%+8)

Frequency

10Hz~10MHz

±(0.1%+3)

Special Functions





Auto Ranging



Yes

Diode



Yes

Continuity Buzzer



Yes

Relative Mode



Yes

Data Hold



Yes

Display Backlight



Yes

Full Icon Display



Yes

Sleep Mode



Yes

Low Battery Display



Yes

Input Impedance for
DC Voltage Measurement

Around 10MΩ
　

Yes

Max. Display

3999

Yes

GENERAL CHARACTERISTICS

Power

9V Battery (6F22)

LCD Size

37 x 18mm

Product Colour

Red and Grey

Product Net Weight

350g

Product Size

236 x 97 x 40mm

Standard Accessories

Test Lead, Battery, English Manual, Point Contact, Temperature Probe, Carrying Bag

Standard Individual Packing

Gift Box

Standard Quantity Per Carton

20pcs

Standard Carton Measurement

530 x 360 x 385mm (0.073 CBM Per Standard Carton)

Standard Carton Gross Weight

Around 17kg

　 　

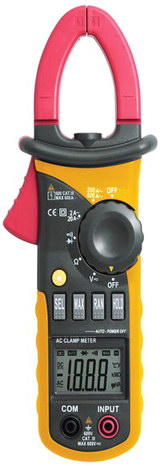

SRH330A (Fluke 321) AC MINI Digital Clamp Meter (Similar to FLUKE 321)

Specifications

• with CE certificate

• Conform to the IEC1010-1 standard CAT III 600V
• Secondary injection molding case
• Max display: 1999 counts with backlight
• SMT application
• Auto/Manual range
• Max/Min value measurement and hold
• Data hold Function
• Diode test
• Continuity test
• Backlight
• Clamp lighting
• Auto power off
• Power: 1.5v(AAA)x 3

• Operating temperature: 0°C to 40°C(32°F to 104°F)
• Storage temperature: -10°C to 50°C(10°F to 122°F)

• Jaw Max Diameter: 26mm

• Dimension:  208×78×35mm
• Weight: 340g



Technical Specification:

Measurement Function

Range

Resolution

Accuracy

DC Voltage

200mV

0.1mV

±(0.8% rdg +2)

2V

0.001V

20V

0.01V

200V

0.1V

600V

1V

±(1% rdg+2)

AC Voltage

2V

1mV

±(1% rdg+5)

20V

10mV

±(1.2% rdg+5)

200V

0.1V

600V

1V

AC Current

2A

0.001A

±(3% rdg+10)

20A

0.01A

200A

0.1A

±(2.5% rdg+10)

600A

1A

±(1.5% rdg+5)

Resistance

200Ω

0.1Ω

±(1.2% rdg+2)

2kΩ

0.001kΩ

20kΩ

0.01kΩ

200kΩ

0.1kΩ

2MΩ

0.001MΩ

20MΩ

0.01MΩ

±(2.0% rdg+5)
　

　

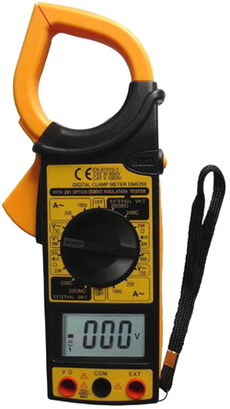

DM6266 Digital Clamp Meter

　

Technology features:

Basic function

Range

Basic accuracy

DCV

1000V

±0.5%

ACV

750V

±1.2%

ACA

200A/1000A

±2.5%

Resistance

200Ω/20kΩ/20MΩ/2000MΩ

±1.0%


Description:
Continuity Buzzer: yes
Data Hold: yes
Accept Plug-insulation tester adapter DT261
Jaw Caliber: 64.5mm
Power: (Size AAA)1.5V x 2 Battery 　
Size: 230 x 95 x 30mm
Weight: Around 330g
Accessories: test leads, battery, manual, gift box, multifunction test socket.

Packing:

1pcs in a Gift box
Standard Quantity Per Carton: 40pcs
Standard Carton Size: 52*27.5*52cm
G.W.:17.5kg, N.W.:16.5kg
　

　

　

266 Series

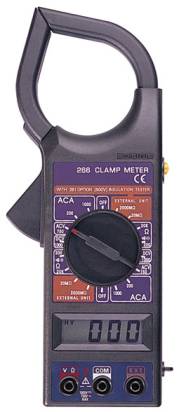

DT266 3 1/2 DIGITAL CLAMP METER

Function

Range

Accuracy

 DC Voltage

 1000V

 ±(0.5%+1dgt)

 AC Voltage

 750V

 ±(1%+4dgt)

 AC Current

 200A-1000A

 ±(2%+5dgt)

 Resistance

 200Ω-2000MΩ

 ±(2%+2dgt)

 Continuity Buzzer

 Yes

　

 Display Hold

 Yes

　

 Power Supply

 9V Battery 6F22

　

 Maximum Display

 1999

　

 Display Size

 14×47mm

　

 Product Net Weight

 350g

　

 Products Size

 237×95×40mm

　

 Clamp color available

 Red, Black

 Standard Accessories

 Test Lead, Battery, Manual, Holster

　

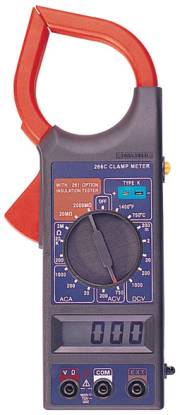

DT266C  3 1/2 DIGITAL CLAMP METER

Function

Range

Accuracy

 DC Voltage

 1000V

 ±(0.5%+1dgt)

 AC Voltage

 750V

 ±(1%+4dgt)

 AC Current

 20A-1000A

 ±(2%+5dgt)

 Resistance

 200Ω-2000MΩ

 ±(2%+2dgt)

 Temperature

 -40~750°C,

0~1382°F

 ±(3%+2dgt)

 Diode Test

 Yes

　

 Display Hold

 Yes

　

 Power Supply

 9V Battery 6F22

　

 Maximum Display

 1999

　

 Display Size

 14×47mm

　

 Product Net Weight

 350g

　

 Products Size

 237×95×40mm

　

 Clamp color available

 Red, Black

 Standard Accessories

 Test Lead, Battery, Manual, Holster

　

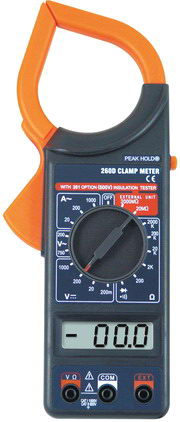

DT260D 3 1/2 DIGITAL CLAMP METER



Function

Range

Accuracy

 DC Voltage

 1000V

 ±(0.5%+1dgt)

 AC Voltage

 750V

 ±(1%+4dgt)

 AC Current

 20A-1000A

 ±(2%+5dgt)

 Resistance

 200Ω-2000MΩ

 ±(2%+2dgt)

 Temperature

 -40°C~750°C

 ±(3%+2dgt)

 Peak Hold

 Yes



 Continuity Buzzer

 Yes

　

 Display Hold

 Yes

　

 Power Supply

 9V Battery 6F22

　

 Maximum Display

 1999

　

 Display Size

 14×47mm

　

 Product Net Weight

 350g

　

 Products Size

 237×95×40mm

　

 Clamp color available

 Red, Black

 Standard Accessories

 Test Lead, Battery, Manual, Holster

　

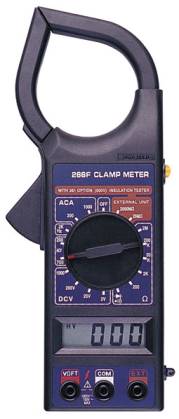

DT266F  3 1/2 DIGITAL CLAMP METER

Function

Range

Accuracy

 DC Voltage

 1000V

 ±(0.5%+1dgt)

 AC Voltage

 750V

 ±(1.0%+4dgt)

 AC Current

 200A-1000A

 ±(2.0%+5dgt)

 Resistance

 200Ω-2000MΩ

 ±(2.0%+2dgt)

 Frequency

 2KHz

 ±(1.0%+1dgt)

 Continuity Buzzer

 Yes

　

 Display Hold

 Yes

　

 Diode Test

 Yes



 Power Supply

 9V Battery 6F22

　

 Maximum Display

 1999

　

 Display Size

 14×47mm

　

 Product Net Weight

 350g

　

 Products Size

 237×95×40mm

　

 Clamp color available

 Red, Black

 Standard Accessories

 Test Lead, Battery, Manual, Holster

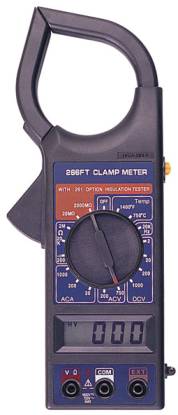

DT266FT  3 1/2 DIGITAL CLAMP METER

Function

Range

Accuracy

 DC Voltage

 2-1000V

 ±(0.5%+1dgt)

 AC Voltage

 200-750V

 ±(1%+4dgt)

 AC Current

 20A-1000A

 ±(2%+5dgt)

 Resistance

 200Ω-2000MΩ

 ±(2%+2dgt)

 Temperature

 -40°C~750°C

 ±(3%+2dgt)

 -40°F~1400°F

 ±(3%+2dgt)

 Frequency

 20KHz

 ±(1%+1dgt)

 Continuity Buzzer

 Yes

　

 Display Hold

 Yes

　

 Diode Test

 Yes



 Power Supply

 9V Battery 6F22

　

 Maximum Display

 1999

　

 Display Size

 14×47mm

　

 Product Net Weight

 350g

　

 Products Size

 237×95×40mm

　

 Clamp color available

 Red, Black

 Standard Accessories

 Test Lead, Battery, Manual,
K-type Thermocouple wire, Holster

　

PAGE1          PAGE2          PAGE3          PAGE4          PAGE5          PAGE6

 ( If you need user manual or E-catalogue for above meters, please ask for at: xiushunjie@163.com )
