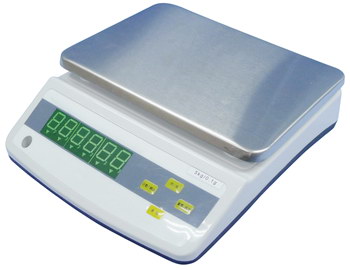

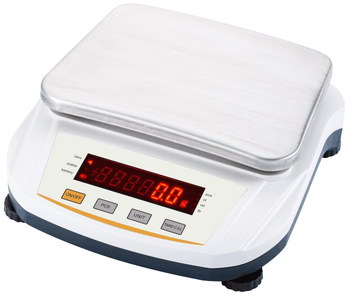

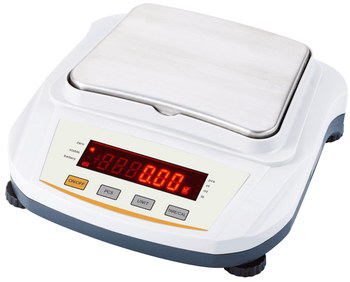

SYP2001, SYP1002 series LED Electronic Balance

Specifications:
1. High precision load cell.
2. Rugged Plastic Housing.
3. Big size Stainless Steel Platter.
4. High contrast easy to read LED display.
5. Built-in rechargeable battery.
6. Height adjustable feet.
7. Full capacity subtraction.
8. Stabilization time 1.5 seconds.
9. Overload Protection.
10. Below Balance Weighing Facility.
11. Checking Weighing, piece counting function.
12. Can be contain bubble level.
13. CE approval.
　

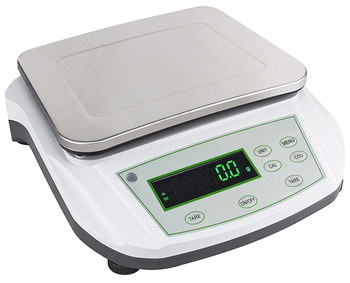

SYP60001D series Large Capacity LED Electronic Balance

Specifications:

1. High precision load cell.
2. Rugged Plastic Housing.
3. Big size Stainless Steel Platter.
4. High contrast easy to read LED display.
5. Built-in rechargeable battery last up to 7 days.
6. Height adjustable feet.
7. Full capacity subtraction.
8. Stabilization time 1.5 seconds.
9. Panel simple for easy operation.
10. Overload Protection.
11. Below Balance Weighing Facility.
12. Checking Weighing, piece counting function.
13. RS232 Interface. (Optional)
14. CE approval.

　

Model	Capacity (g)	Readability (g)	Repeatability(≤g)	Linearity (≤g)	Net Weight (kg)	Pan Size (mm)	Dimension (mm)	Power Supply
SYP60001D	6000	0.1	±0.2	±0.2	5.0	340*240	370*370*125	110V-240VAC
SYP100001D	10000	0.1	±0.2	±0.2
SYP150001D	15000	0.1	±0.2	±0.2
SYP200001D	20000	0.1	±0.2	±0.2
SYP300001D	30000	0.1	±0.2	±0.2
SYP15000D	15000	1	±2	±2
SYP30000D	30000	1	±2	±2

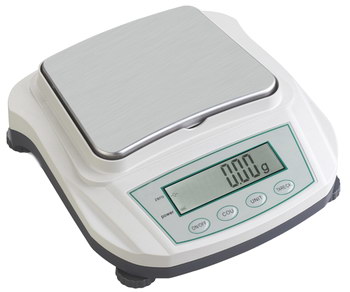

SYP2001D, SYP1002D series LCD Electronic Balance

Specifications:

1. High precision load cell, compact design.
2. Aluminum alloy die cast base and mains.
3. Big size stainless steel pan.

4. Bright LCD display with backlight.
5. Built-in rechargeable battery.
6. Height adjustable feet.

7. Overload Protection, Bubble level adjustment.
8. Stabilization time 1.5 seconds.
9. Checking weighting, piece counting function.
10. Certificated calibration weight supplied as standard.

11. RS232 Interface. (Optional)



Model	Capacity (g)	Readability (g)	Repeatability(≤g)	Linearity (≤g)	Net Weight (kg)	Pan Size (mm)	Dimension (mm)	Power Supply
SYP2001D	200	0.1	±0.2	±0.2	1.5	143*192	225*220*80	110V-240VAC
SYP6001D	600	0.1	±0.2	±0.2
SYP10001D	1000	0.1	±0.2	±0.2
SYP15001D	1500	0.1	±0.2	±0.2
SYP20001D	2000	0.1	±0.2	±0.2
SYP30001D	3000	0.1	±0.2	±0.2
SYP50001D	5000	0.1	±0.2	±0.2
SYP1002D	100	0.01	±0.02	±0.02		125*163
SYP2002D	200	0.01	±0.02	±0.02
SYP3002D	300	0.01	±0.02	±0.02
SYP5002D	500	0.01	±0.02	±0.02
SYP1002D	600	0.01	±0.02	±0.02
SYP10002D	1000	0.01	±0.02	±0.02
SYP20002D	2000	0.01	±0.02	±0.02

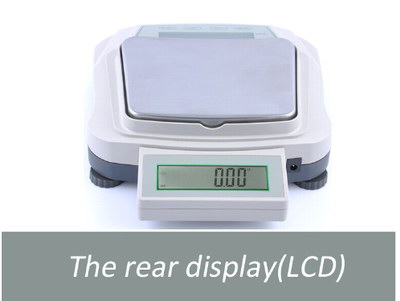

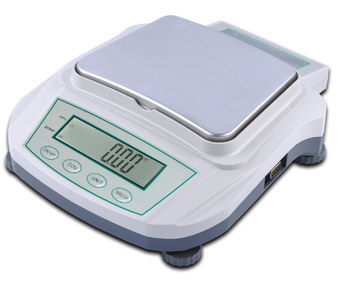

SYP1002S series Dual LCD Electronic Balance

Specifications:

1. High precision load cell.
2. Rugged Plastic Housing.
3. Big size Stainless Steel Platter.
4. High contrast easy to read LED display.
5. Built-in rechargeable battery.
6. Height adjustable feet.
7. Full capacity subtraction.
8. Stabilization time 1.5 seconds.
9. Overload Protection.
10. Below Balance Weighing Facility.
11. Checking Weighing, piece counting function.
12. Can be contain bubble level.
13. CE approval.

14. RS232 Interface. (Optional)

　

Model	Capacity (g)	Readability (g)	Repeatability(≤g)	Linearity (≤g)	Net Weight (kg)	Pan Size (mm)	Dimension (mm)	Power Supply
SYP1002S	100	0.01	±0.02	±0.02	1.5	125*163	225*220*80	110V-240VAC
SYP2002S	200	0.01	±0.02	±0.02
SYP3002S	300	0.01	±0.02	±0.02
SYP5002S	500	0.01	±0.02	±0.02
SYP6002S	600	0.01	±0.02	±0.02
SYP10002S	1000	0.01	±0.02	±0.02
SYP20002S	2000	0.01	±0.02	±0.02

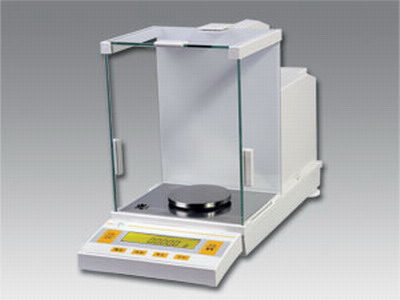

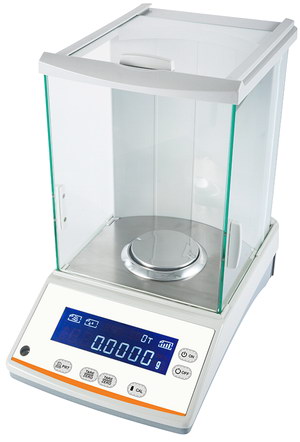

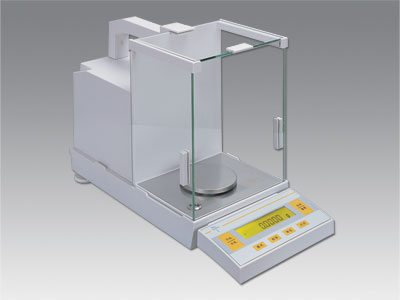

SFA3204/ SFA3204N series Magnetic Analytical Balance

Specifications:

1. Electromagnetic Force Compensation Technology.
2. Aluminum Alloy die cast base and ss platter.
3. Super Bright LCD display with backlight.
4. RS232C Interface
5. Clear Glass Windshield as standard.
6. Over load protection, Bubble Level Adjustment, Under hook
7. Full capacity Subtraction
8. Multi Weighing unit conversation g/mg/ct/oz.
9. Check Weighing, Parts counting, percentage weighing
10. Universal power adaptor supplied as standard
11. Certificated calibration weight supplied as standard.
12. CE approval.
13. Internal calibration or external calibration for your choice.

(SFA3204 series with External calibration; SFA3204N series with Internal calibration.)


Model	Capacity (g)	Readability (mg)	Repeatability(≤mg)	Linearity (≤mg)	Net Weight (kg)	Pan Size (mm)	Dimension (mm)	Power Supply
SFA3204/ SFA3204N	320	0.1	±0.2	±0.2	6.8	Φ80mm	340*215*350	110V-240VAC
SFA3104/ SFA3104N	310	0.1	±0.2	±0.2
SFA2204/ SFA2204N	220	0.1	±0.2	±0.2
SFA2104/ SFA2104N	210	0.1	±0.2	±0.2
SFA2004/ SFA2004N	200	0.1	±0.2	±0.2
SFA1804/ SFA1804N	180	0.1	±0.2	±0.2
SFA1604/ SFA1604N	160	0.1	±0.2	±0.2
SFA1204/ SFA1204N	120	0.1	±0.2	±0.2
SFA1004/ SFA1004N	100	0.1	±0.2	±0.2

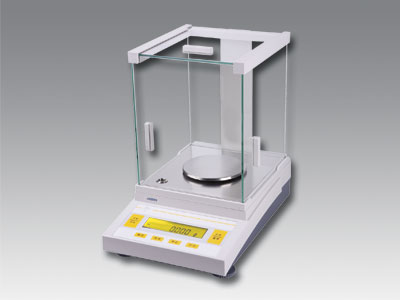

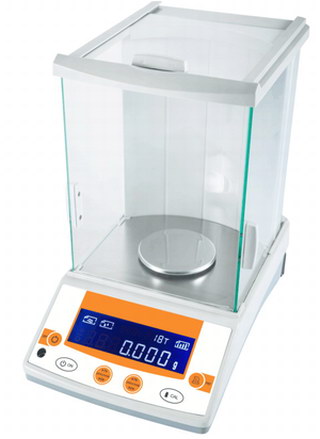

SJA10003A/ SJA10003N series Magnetic Analytical Balance

Specifications:

1. Electromagnetic Force Compensation Technology.
2. Aluminum Alloy die cast base and ss platter.
3. Super Bright LCD display with backlight.
4. RS232C Interface
5. Clear Glass Windshield as standard.
6. Over load protection, Bubble Level Adjustment, Under hook
7. Full capacity Subtraction
8. Multi Weighing unit conversation g/mg/ct/oz.
9. Check Weighing, Parts counting, percentage weighing
10. Universal power adaptor supplied as standard
11. Certificated calibration weight supplied as standard.
12. CE approval.
13. Internal calibration or external calibration for your choice.

(SFA10003A series with External calibration; SFA10003N series with Internal calibration.)


Model	Capacity (g)	Readability (mg)	Repeatability(≤mg)	Linearity (≤mg)	Net Weight (kg)	Pan Size (mm)	Dimension (mm)	Power Supply
SJA10003A/ SJA10003N	1000	1	±2	±2	6.8	Φ90mm	340*215*350	110V-240VAC
SJA6003A/ SJA6003N	600	1	±2	±2
SJA5003A/ SJA5003N	500	1	±2	±2
SJA4003A/ SJA4003N	400	1	±2	±2
SJA3003A/ SJA3003N	300	1	±2	±2
SJA2003A/ SJA2003N	200	1	±2	±2
SJA1003A/ SJA1003N	100	1	±2	±2

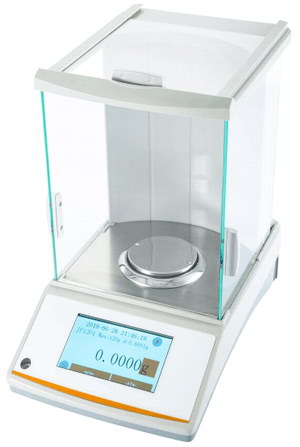

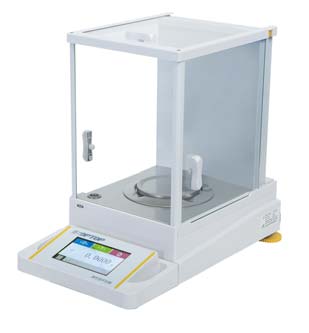

SFA3204C/ SFA3204CN, SJA10003C/ SJA10003CN series Touch Screen Electronic Analytical Balance

Specifications:

1. Electromagnetic Force Compensation Technology.
2. Aluminum Alloy die cast base and ss platter.
3. Super Bright LCD display with backlight. (5.0 inch Touch screen)
4. RS232C Interface
5. Clear Glass Windshield as standard.
6. Over load protection, Bubble Level Adjustment, Under hook
7. Full capacity Subtraction
8. Multi Weighing unit conversation g/mg/ct/oz.
9. Check Weighing, Parts counting, percentage weighing
10. Universal power adaptor supplied as standard
11. Certificated calibration weight supplied as standard.
12. Internal calibration or external calibration for your choice.

(SFA3204C, SJA10003C series with External calibration; SFA3204CN, SJA10003CN series with Internal calibration.)


Model	Capacity (g)	Readability (mg)	Repeatability(≤mg)	Linearity (≤mg)	Net Weight (kg)	Pan Size (mm)	Dimension (mm)	Power Supply
SFA3204C/ SFA3204CN	320	0.1	±0.2	±0.2	6.8	Φ80mm	340*215*350	110V-240VAC
SFA3104C/ SFA3104CN	310	0.1	±0.2	±0.2
SFA2204C/ SFA2204CN	220	0.1	±0.2	±0.2
SFA2104C/ SFA2104CN	210	0.1	±0.2	±0.2
SFA2004C/ SFA2004CN	200	0.1	±0.2	±0.2
SFA1804C/ SFA1804CN	180	0.1	±0.2	±0.2
SFA1604C/ SFA1604CN	160	0.1	±0.2	±0.2
SFA1204C/ SFA1204CN	120	0.1	±0.2	±0.2
SFA1004C/ SFA1004CN	100	0.1	±0.2	±0.2
SJA10003C/ SJA10003CN	1000	1	±2	±2		Φ90mm
SJA6003C/ SJA6003CN	600	1	±2	±2
SJA5003C/ SJA5003CN	500	1	±2	±2
SJA4003C/ SJA4003CN	400	1	±2	±2
SJA3003C/ SJA3003CN	300	1	±2	±2
SJA2003C/ SJA2003CN	200	1	±2	±2
SJA1003C/ SJA1003CN	100	1	±2	±2

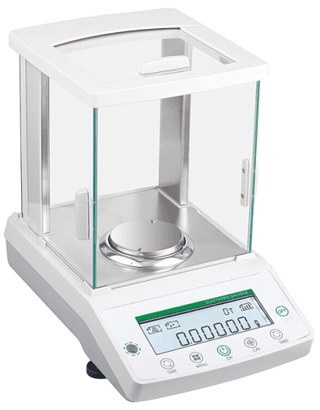

SFA3204M/ SFA3204IM, SJA10003M/ SJA10003IM series Magnetic Analytical Balance

Specifications:

1. Electronic force compensation technology

2. Aluminum alloy die cast and stainless pan
3. Supper bright LCD display with backlight
4. RS232C interface
5. Clear glass windshield as standard
6. Overload protection, bubble level adjustment, under hook
7. Full capacity subtraction
8. Multi weighing unit conversation g/mg/ct/oz
9. Stabilization time 3-5 seconds
10. Check weighing, parts counting, percentage weighing
11. Universal power adaptor supplied as standard
12. Certificated calibration weight supplied as standard for electronic balance
13. Internal calibration or external calibration for your choice.

(SFA3204M, SJA10003M series with External calibration; SFA3204IM, SJA10003IM series with Internal calibration.)


Model	Capacity (g)	Readability (mg)	Repeatability(≤mg)	Linearity (≤mg)	Net Weight (kg)	Pan Size (mm)	Dimension (mm)	Power Supply
SFA3204M/ SFA3204IM	320	0.1	±0.2	±0.2	5.0	Φ80mm	340*215*330	110V-240VAC
SFA3104M/ SFA3104IM	310	0.1	±0.2	±0.2
SFA2204M/ SFA2204IM	220	0.1	±0.2	±0.2
SFA2104M/ SFA2104IM	210	0.1	±0.2	±0.2
SFA2004M/ SFA2004IM	200	0.1	±0.2	±0.2
SFA1804M/ SFA1804IM	180	0.1	±0.2	±0.2
SFA1604M/ SFA1604IM	160	0.1	±0.2	±0.2
SFA1204M/ SFA1204IM	120	0.1	±0.2	±0.2		Φ90mm
SFA1004M/ SFA1004IM	100	0.1	±0.2	±0.2
SJA10003M/ SJA10003IM	1000	1	±2	±2
SJA6003M/ SJA6003IM	600	1	±2	±2
SJA5003M/ SJA5003IM	500	1	±2	±2
SJA4003M/ SJA4003IM	400	1	±2	±2
SJA3003M/ SJA3003IM	300	1	±2	±2
SJA2003M/ SJA2003IM	200	1	±2	±2
SJA1003M/ SJA1003IM	100	1	±2	±2

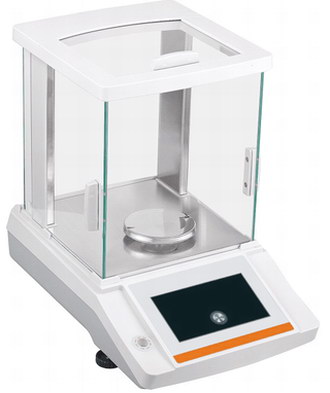

SFA3204CM/ SFA3204CI, SJA10003CM/ SJA10003CI series Touch Screen Analytical Balance

Specifications:

1. Electronic force compensation technology

2. Aluminum alloy die cast and stainless pan
3. Supper bright LCD display with backlight (5 inch Touch Screen)
4. RS232C interface
5. Clear glass windshield as standard
6. Overload protection, bubble level adjustment, under hook
7. Full capacity subtraction
8. Multi weighing unit conversation g/mg/ct/oz
9. Stabilization time 3-5 seconds
10. Check weighing, parts counting, percentage weighing
11. Universal power adaptor supplied as standard
12. Certificated calibration weight supplied as standard for electronic balance

 13. Internal calibration or external calibration for your choice.

(SFA3204CM, SJA10003CM series with External calibration; SFA3204CI, SJA10003CI series with Internal calibration.)


Model	Capacity (g)	Readability (mg)	Repeatability(≤mg)	Linearity (≤mg)	Net Weight (kg)	Pan Size (mm)	Dimension (mm)	Power Supply
SFA3204CM/ SFA3204CI	320	0.1	±0.2	±0.2	6.8	Φ80mm	340*215*330	110V-240VAC
SFA3104CM/ SFA3104CI	310	0.1	±0.2	±0.2
SFA2204CM/ SFA2204CI	220	0.1	±0.2	±0.2
SFA2104CM/ SFA2104CI	210	0.1	±0.2	±0.2
SFA2004CM/ SFA2004CI	200	0.1	±0.2	±0.2
SFA1804CM/ SFA1804CI	180	0.1	±0.2	±0.2
SFA1604CM/ SFA1604CI	160	0.1	±0.2	±0.2
SFA1204CM/ SFA1204CI	120	0.1	±0.2	±0.2
SFA1004CM/ SFA1004CI	100	0.1	±0.2	±0.2
SJA10003CM/ SJA10003CI	1000	1	±2	±2		Φ90mm
SJA6003CM/ SJA6003CI	600	1	±2	±2
SJA5003CM/ SJA5003CI	500	1	±2	±2
SJA4003CM/ SJA4003CI	400	1	±2	±2
SJA3003M/ SJA3003CI	300	1	±2	±2
SJA2003M/ SJA2003CI	200	1	±2	±2
SJA1003CM/ SJA1003CI	100	1	±2	±2

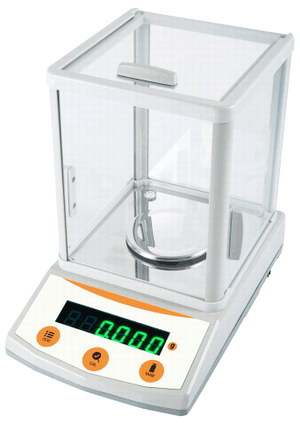

SJA1003B series Digital Precision Scale

FEATURES:
♦ High precision load cell, compact design.
♦ Aluminum alloy die cast base and mains.
♦ Electronic force compensation technology.
♦ Clear glass windshield supplied as standard.
♦ Supper bright LED display with backlight.
♦ Clear glass windshield as standard
♦ Overload protection, Bubble level adjustment.
♦ Stabilization time 1.5 seconds.
♦ Universal power adaptor supplied as standard
♦ Certificated calibration weight supplied as standard.

Specifications:

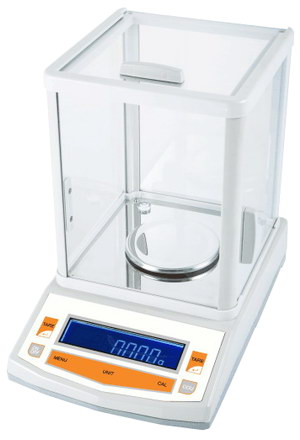

SJA1003D series Electronic Balance

FEATURES:
1.High precision load cell, compact design.
2.Aluminum Alloy die cast base and mains.
3.Stainless steel Platter.
4.LCD display.
5.Clear Glass Windshield
6.Height adjustable feet.
7.Full capacity subtraction.
8.Stabilization time 1.5 seconds.
9.Overload protection.
10.Below balance Weighing Facility.
11.Checking Weighing, piece counting function.
12.Certificated calibration weight supplied as standard.

Specifications:

　

Model	SJA1003D	SJA2003D	SJA3003D
Capacity	0-100g	0-200g	0-300g
Readability	1mg
Repeatability	±2mg
Linearity	±2mg
Output Interface	RS232C
Pan size	Φ90mm
Dimensions (L*W*H)	29mm*18.5mm*27mm
Packing Size (L*W*H)	35.5mm*26.5mm*35mm
Net Weight	3000g
Glass Weight	3800g
Power Supply	110V/220-240V AC

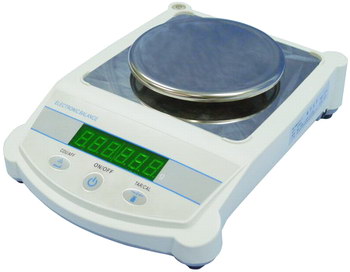

YP601N, JY1002 series Electronic Balance

Specifications:

* RS232 communication (optional)
* Double sided display (optional)
* Pan size: Φ128mm
* LCD display
* Weighting setting time ≤3s
* DC/AC
* Count function
* Gram, carat, pound and ounce to convert

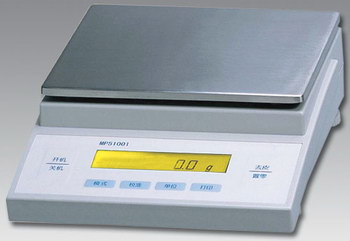

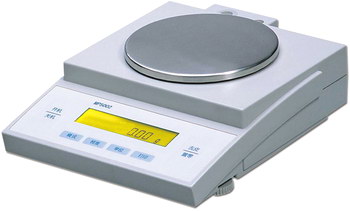

YP5001N, YP6001N Electronic Balance

Specifications:

* RS232 communication (optional)
* Double sided display (optional)
* Pan size: 250*180mm
* LCD display
* Weighting setting time≤3s
* DC/AC
* Count function
* Gram, carat, pound and ounce to convert

MP1002 series Electronic Balance

Specifications:

* LCD display
* Zero in range ability
* Auto zero-tracking
* Auto-calibration
* Automatic trouble diagnosis
* Built-in under hook (optional)
* Over-loading protection
* RS232 communication (optional)
* Weighing / piece counting / percentage weighing
* Pan Size: Φ125

MP2000D series Electronic Balance

Specifications:

* LCD display
* Zero in range ability
* Auto zero-tracking
* Auto-calibration
* Automatic trouble diagnosis
* Built-in under hook (optional)
* Over-loading protection
* RS232 communication (optional)
* Weighing / piece counting / percentage weighing
* Pan Size: 174*143

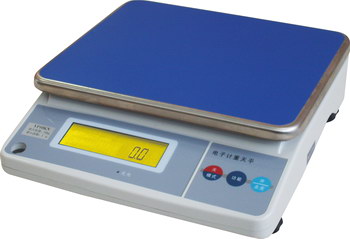

YP10K-1 series & YP10KN series Electronic Balance

Specifications:

* AC/DC
* LCD Display
* RS232 communication (optional)
* Calibration Weights (optional)
* Tally Function
* Self-Calibration
* Unit Convert

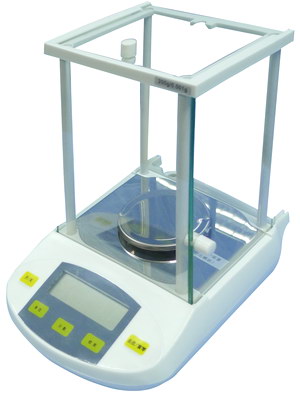

YP102N series & JY1003 series Electronic Balance

Specifications:

* DC/AC
* LCD display
* Pan size Φ94mm
* RS232 communication
* Calibration weight (optional)
* Count function
* Auto calibration
* Unit conversion

JA Electronic Precision Balance

Specifications:
1.Electric magnetic force balanced principle;
2.Dynamic temperature compensation;
3.Zero in range ability;
4.LCD display;
5.Built-in under hook;
6.RS232 communication;
7.Unit conversion (g oz ct kg lb).

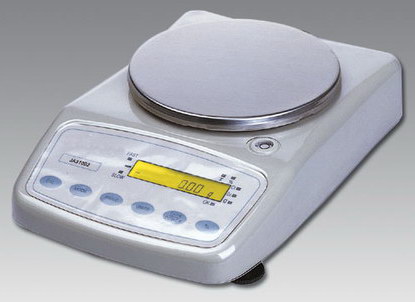

JA Electronic Precision Balance

Specifications:
1.Patented sensing technology - ceramic variable capacitance;
2.Temperature compensation;
3.Remote control via RS232 interface;
4.Over-loading / impact protection.
　

Model	MP1100B	JA12002	JA21002	JA31002	JA41002	JA50002
Weighing Capacity (g)	1100	1200	2100	3100	4100	5000
Readability (g)	0.01	0.01	0.01	0.01	0.01	0.01
Repeatability (≤g)	±0.01	±0.01	±0.01	±0.01	±0.01	±0.01
Linearity (≤g)	±0.02	±0.02	±0.02	±0.02	±0.02	±0.02
Pan Size (mm)	Φ158	Φ158	Φ158	Φ158	Φ158	Φ158

FA Electronic Analytical Balance

Specifications:
1.Electric magnetic force balanced principle
2.Auto zero-tracking
3.Dynamic temperature compensation
4.Zero in range ability
5.LCD display
6.Function of piece counting
7.Over-loading warning
8.RS232 communication
9.Unit conversion (g  oz  ct  kg  lb)

FB Auto Internal Calibration Electronic Analytical Balance

Specifications:

1.High-sensitivity electric magnetic force balanced principle for ultra resolution
2.Built-in dual-weight balanced calibration technology for ultra accuracy
3.Digital multi-point linear calibration, which is convenient for balance calibration
4.Internal weight calibration technology, which is convenient for periodical calibration and adjustment without dismantling the balance
5.Pillar-free transparent glass draft shields for comfortable operation with enlarge weighting space
6.Advanced design with SMT and switch power supply technology, which reduces the dimensions op the rear sensor, and leads to a compact appearance of the balance
7.Six-key integrated display panel for easy operation
8.Big handles for easy movement

AE Touch Color Screen Electronic Analytic Balance

Specifications:

1. Big color screen: Large screen, TFT LCD monitor, provide abundant weighing display information, convenient to read.
2. Full screen touch: in line with the laboratory touch solutions for work habits, even wear gloves more pieces, it can be operated.
3. User interface: application of Metro color scheme, using the green color, the eye won’t tired long for long time work.
4. User operation: abundant operation information tips, help users to finish the work more efficient.
5. The built-in programs: the standard for easy to use the built-in applications, for all kinds of weighing task.
6. Screen protective cover: provide additional dustproof and stroke prevention; prolong the service life of balance
7. The glass door transportation protection lock: effective provide balance protection of transportation.
8. The overload protection scale: the unique structure design can effectively protect the sensor.
9. Level regulating system and level indicator: fit ergonomic level regulating system and leading level indicator, convenient user level adjustment.
10. Unit conversion: fast unit conversion makes the operation more convenient, clear and intuitive.

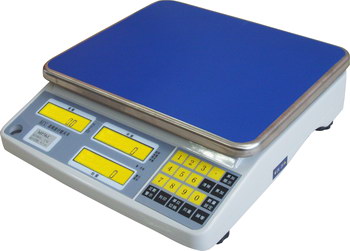

MP3KC series Electronic Counting Balance

Specifications:
* Three display windows: Quantity, Piece Weight, Weight;
* LCD backlight display;

* Built-in rechargeable battery;

* RS232 communication;

* Unit conversion

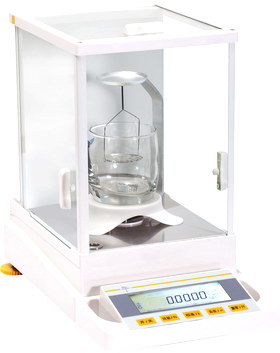

FA1104J/FA2104J Electronic Density Balance

Electronic balance with density measuring device measure density (g/cm3).

Directly Read density, less cumbersome calculation.
Measure: density of solid, liquid.

Specifications:

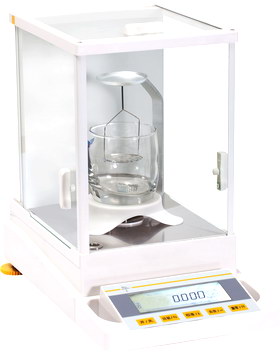

JA3003J/JA5003J Electronic Density Balance

Electronic balance with density measuring device measure density (g/cm3).

Directly Read density, less cumbersome calculation.
Measure: density of solid, liquid.

Specifications:

MP3002J/MP4002J/MP5002J Electronic Density Balance

Electronic balance with density measuring device measure density (g/cm3).

Directly Read density, less cumbersome calculation.

Measure density of solid and liquid.

Specifications:

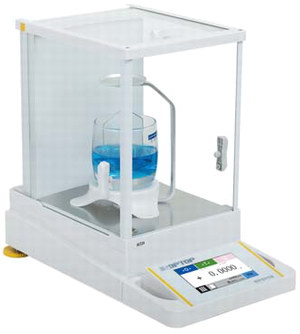

AE Touch Color Screen Electronic Density Balance

Specifications:

1. Electronic balance with density measuring device measure density (g/cm3)
2. With the characteristics of AE Electronic Analytical Balance
3. Cooperate with density measurement devices, can be easily measured the density of solid and liquid.
4. Process measurement can show the buoyancy in air quality, in the medium and density values.
5. Built-in 8 different density of liquid and solid, you can customize the density of solid and liquid.
