SR-2G/ SR4G Wood Moisture Meter

Specifications:

Measurement Range: 5~90%

Resolution: 1%

Accuracy: 5%~40%: ±1%;  40%~70%: ±2%;  70%~90%: ±4%

Probe Length: 14mm

Probe: Changeable dual probes (SR-2G) or four probes (SR-4G)

Tree Species Selection

Building Material Selection

Low Voltage Warning

Dimension: 154*68*26mm (L*W*H)

Weight: 98g

Accessories: user's manual, carrying pouch

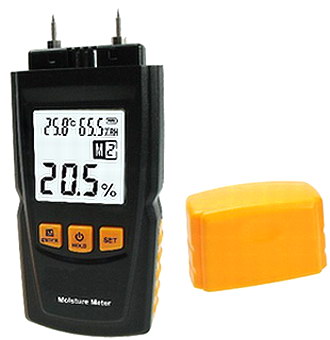

MD610 Wood Moisture Meter

Technical Specifications

1.Measuring Range:2~40%/50%/60%/70%
2.Resolution:0.5%
3.Temperature Range:-10~60℃
4.Humidity Range:20%RH~90%RH
5.Moisture Response Speed:<1s
6.Measuring Error:±1%
7.Display:LCD
8.Power:2*1.5V AAA Battery

9.Unit size: 135.6*55*29.4,

10.Testing handle probe: 278*36*36mm.

MD620 Wood Moisture Meter

Technical Specifications

1.Measuring Range:2~40%/50%/60%/70%
2.Resolution:0.5%
3.Temperature Range:-10~60℃
4.Humidity Range:20%RH~90%RH
5.Moisture Response Speed:<1s
6.Measuring Error:±1%
7.Display:LCD
8.Power:2*1.5V AAA Battery

9.Unit size: 144*55*29.4mm(main unit),

                  278*36*36mm(Testing handle probe)

MD630 Wood Moisture Meter

Technical Specifications

Moisture measurement range: 0~50%

Resolution:0.5%

Temperature measurement range: 0~50°C

Moisture Error: ±1.5%

Wood density range: 0.27~1.05g/cm³

Detection depth: 0~50cm

Display: 3-1/2 Digital LCD

Unit Size: 63.6*31*125.8mm

Power: 6F22 9V Battery

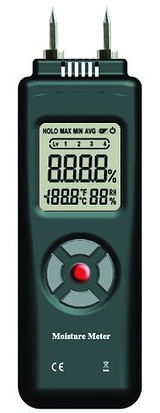

MD700  Moisture Meter

Technical Specifications

Large LCD with backlight

Low Battery indication

Temperature and humidity measurement

MIN/MAX/AVG record and hold function

4 Adjustment for different trees and different material

Auto turn-off  for 10 minutes

 Temperature Range:-10~60℃

Accuracy:+1C

Humidity Range:20%RH~90%RH

Accuracy:+5%

Moisture measuring Range:2~40%/50%/60%/70%

Accuracy:+1%

Moisture Response Speed:<1s

MD310A Wood Moisture Meter
Technical Specifications

Product name	Wood Moisture Meter
Model	MD310A
Measuring range	8%~22%
Measuring accuracy	+/-2%
Power supply	One 9V block battery (6F22/6LR6) not included
Max power consumption	<25mA
Auto power off	3 minutes after no action
Low battery indicator	<7V
Working temperature	0ºC~50ºC
Working humidity	<90%RH non-condensing
Storage	-20 ºC~60 ºC, </=85% (w/o battery)
Dimension	145mm*62mm*27 mm
Weight	About 120g (w/o battery)

MD310B-1 Wood Moisture Meter

Technical Specifications

Measuring range	Wood: 5-30%
	Building Materials: 1.5-33%
Measuring accuracy	+/-2%
Power supply	One 9V block battery (6F22/6LR6) not included
Max power consumption	<25mA
Auto power off	3 minutes after no action
Backlight shut off	About 15 seconds
Low battery indicator	<7V
Calibration Function	External calibration
Working temperature	0 ºC~50 ºC
Working humidity	<90%RH non-condensing
Storage	-20 ºC~60 ºC, </=85% (w/o battery)
Dimension	145mm*62mm*27 mm
Weight	About 120g (w/o battery)

MD-9032C+ Intelligent wood moisture tester
Product Features
Secondary injection Shell, aesthetics solid
Three species of intelligent choice, remove the user computing
Wide measurement range to 5% ~ 40%
Onboard zero and calibration functions, simple operation
LCD figures show that the visual clarity
Two acupuncture needles.
General characteristics
Show : 2 LCD figures show that the character height of 15mm
Sampling rate : 3 times / second
Resolution : 1%
Its range : 5% ~ 40%
Measurement accuracy : ± 1% RDG d +1
Instrument Size : 147 (L), Brewer (W) x32 devices (H) mm
Annex : Packed boxes Power : 9V batteries stacked one, the models : 6F22
Weight : About Motorola (excluding batteries)

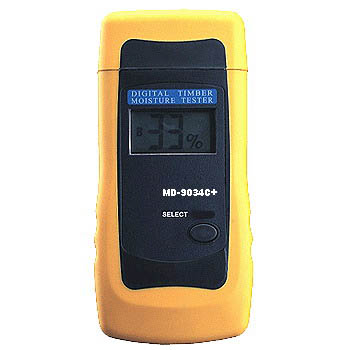

MD-9034C+ Intelligent wood moisture tester
Product Features
Secondary injection Shell, aesthetics solid
Three species of intelligent choice, remove the user computing
Wide measurement range to 5% ~ 40%
Onboard zero and calibration functions, simple operation
LCD figures show that the visual clarity
Four acupuncture needles.
General characteristics
Show : 2 LCD figures show that the character height of 15mm
Sampling rate : 3 times / second
Resolution : 1%
Its range : 5% ~ 40%
Measurement accuracy : ± 1% RDG d +1
Instrument Size : 147 (L), Brewer (W) x32 devices (H) mm
Annex : Packed boxes Power : 9V batteries stacked one, the models : 6F22
Weight : About Motorola (excluding batteries)

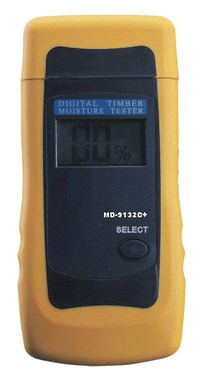

MD-9132C+ Several significant new European standards LCD Wood Moisture
Product Features
Secondary injection Shell, aesthetics solid
Double standard display options, so users can choose to show 5% to 40% or 0 to 100 (the European standard), to meet different customer needs
Onboard zero and calibration functions, simple operation
LCD figures show that the visual clarity
Two acupuncture needles.
General characteristics
Show : 2 LCD figures show that the character height of 15mm
Resolution : 1 or 1%
Range : 1 ~ 100 or 5% ~ 40%
Accuracy : ± d +1% RDG
Power : 9V batteries stacked one, the models : 6F22

MD-9134C+ Several significant new European standards LCD Wood Moisture
Product Features
Secondary injection Shell, aesthetics solid
Double standard display options, so users can choose to show 5% to 40% or 0 to 100 (the European standard), to meet different customer needs
Onboard zero and calibration functions, simple operation
LCD figures show that the visual clarity
Four acupuncture needles.
General characteristics
Show : 2 LCD figures show that the character height of 15mm
Resolution : 1 or 1%
Range : 1 ~ 100 or 5% ~ 40%
Accuracy : ± d +1% RDG
Power : 9V batteries stacked one, the models : 6F22

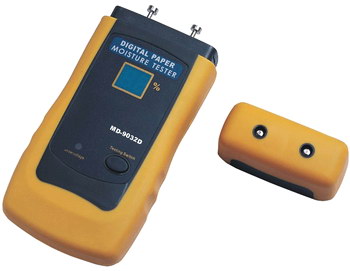

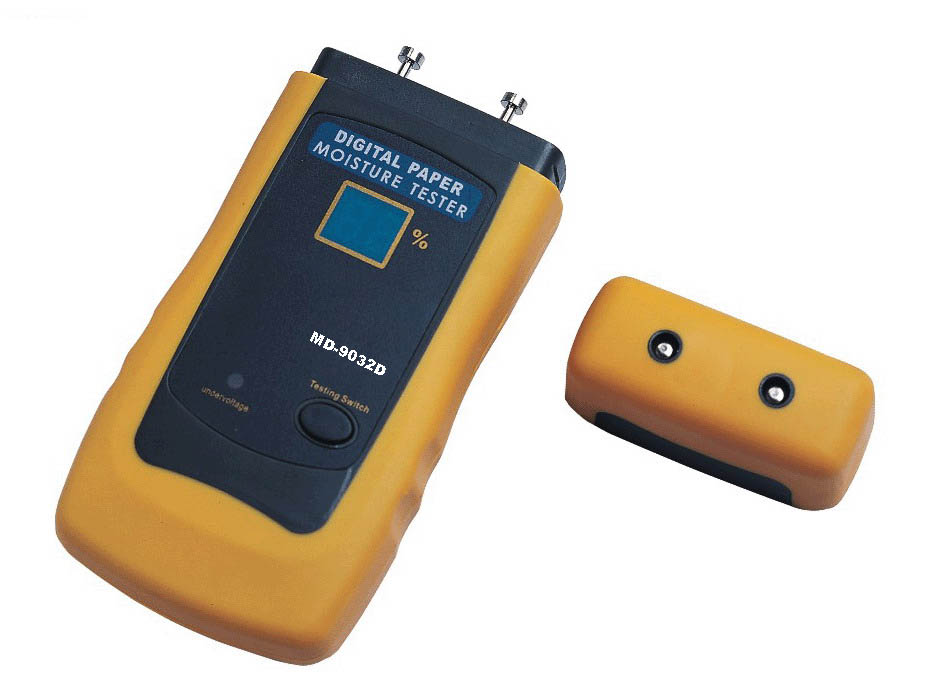

MD-9032D Paper moisture tester
Product Features
Secondary injection Shell, aesthetics solid
Wide measurement range to 5% ~ 40%
Onboard zero and calibration functions, simple operation
LCD figures show that the visual clarity
General characteristics
Show : 2 LCD figures show that the character height of 15mm
Resolution : 1%
Its range : 5% ~ 40%
Accuracy : ± 1% RDG d +1
Power : 9V batteries stacked one, the models : 6F22

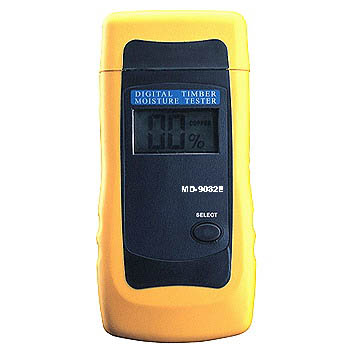

MD-9032E  Intelligent smart optional paper moisture tester
Product Features
Secondary injection Shell, aesthetics solid
Three species of intelligent choice, remove the user computing
Wide measurement range to 5% ~ 40%
Onboard zero and calibration functions, simple operation
LCD figures show that the visual clarity
General characteristics
Show : 2 LCD figures show that the character height of 15mm
Resolution : 1%
Its range : 5% ~ 40%
Accuracy :±d +1% RDG
Power : 9V batteries stacked one, the models : 6F22

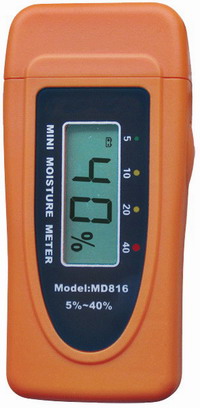

Model: MD816
Digital LCD screen
Low power consumption
Auto indication of low voltage
Scope of Moisture Measurement: 5~40%
Resolution: 1%
Operating Ambient: -15ºC~35ºC, 20~90%Rh
Power Supply: 23A 12V alkaline battery
Dimensions: 85L×40W×16H(mm)

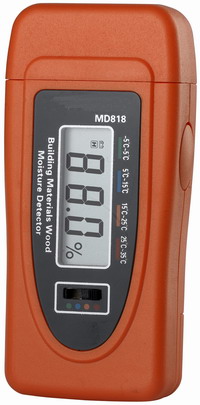

Model: MD818
The meter is a miniature intelligent wood moisture meter adopting pin contact mode, suitable for measuring water content in wooden fiber articles such as wooden and bamboo objects, cotton, tobacco, paper and Chinese medical materials, etc.
* Adopts micro computer (CPU) technology, realizing rapid and accurate measurement.
* Digital LCD screen
* Ambient temperature compensation
* Concise and delicate fashionable appearance
* Wide measurement scope (5%--60%)
* Low power consumption, high resolution (0.5%)
* Auto indication of low voltage

WOOD Moisture meter
Model: MD912
Double color pocket size meter,
autocorrect environmental temperature,
and could select 4 species of the wood test.
Measuring Range: 2%~60%
Resolution: 0.5%
Date hold and can hold value.
Low power indicating and can select in
2pins sensor or 4pins sensor
Can change the testing sensor pins
conveniently dispense with the plastic.
Battery: one 9V battery
Dimension: 130Lx64Wx32H(mm)

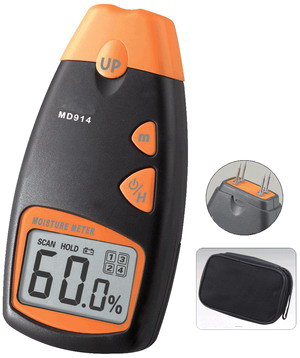

WOOD Moisture meter
Model: MD914
Double color pocket size meter,
autocorrect environmental temperature,
and could select 4 species of the wood test.
Measuring Range: 2%~60%
Resolution: 0.5%
Date hold and can hold value.
Low power indicating and can select in
2pins sensor or 4pins sensor
Can change the testing sensor pins
conveniently dispense with the plastic.
Battery: one 9V battery
Dimension: 130Lx64Wx32H(mm)

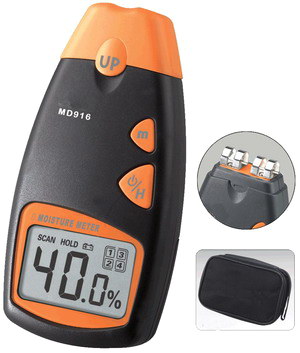

PAPER MOISTURE METER
Model: MD916
It is used the microcomputer (CPU) technique
to measure quickly, accurate.
Digital intelligent MCU paper moisture meter
can work on 4 types paper (carton, copperplate
paper, writing paper, newsprint) through the
spring contact.
precise measuring.
Digital large size LCD display
Test Range: 2%~40%
Accuracy: 0.5%
Date hold and can hold value
Low power symbol automatic indicating.
Battery: one 9V battery
Dimension: 130Lx64Wx32H(mm)

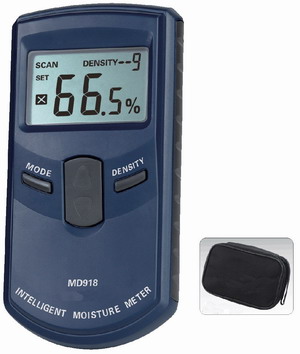

INDUCTIVE MOISTURE METER
MODEL: MD918
Make inductive measurement of the moisture
content of wood using the high-frequency
electromagnetic waves.
10 grades of wood density available.
It has the functions of setting the moisture
upper limit and warning.
Automatic compensation for environmental
temperature.
Measuring Range: 4%~80%
Resolution: 0.5%
Battery: 3x1.5V AAA alkaline battery
Dimension: 132Lx67Wx26H(mm)

MD918 is suitable for testing moisture of hard wood floor.

50PCS/CTN, CTN SIZE: 47*33*31CM, G.W:12KGS;

20PCS/CTN, CTN SIZE: 39*34*24CM, G.W: 5KGS;

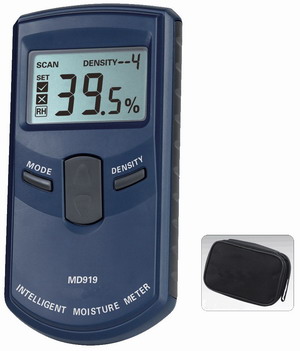

INDUCTIVE PAPER MOISTURE METER
MODEL: MD919
Make inductive measurement of the moisture
content of paper using the high-frequency
electromagnetic waves.
4 grades of paper density available.
It has the functions of setting the moisture
upper limit and warning.
Automatic compensation for environmental
temperature.
Measuring Range: 4%~40%RH
Resolution: 0.5%
Battery: 3x1.5V AAA alkaline battery
Dimension: 132Lx67Wx26H(mm)
Can indicate the environmental moisture.

50PCS/CTN, CTN SIZE: 47*33*31CM, G.W:12KGS;

20PCS/CTN, CTN SIZE: 39*34*24CM, G.W: 5KGS;

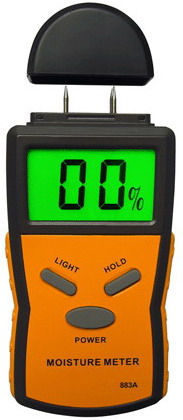

MD883A New type Wood Moisture Meter
Basic function
Range
Display: LCD
Range: 5%~40%
Operation temperature: 0~50ºC/20~90%RH
Accuracy: ±1%
Resolution: 1%
Date Hold: √
General Features
Battery Type: 9V(6F22)×1
Dimension: 126×70×29mm
Weight: 82g
MOQ: 100
Ctn Size: 478×318×315mm
Q' TY / Ctn: 54PCS
GW/NW: 10KG/9KG

Digital Wood Moisture Meter Model: MD830

Influence of humidity: Not important within 0 to 70% of relative humidity
1) Large LCD display for easy reading 2) Data-Hold function for holding measured values
3) With 4 pins 4) Manual power off, auto power off 5) Power: one 6F22 9V battery
6) Dimension: 49mm x 148mm x 21mm 7) Influence of humidity: Not important within 0 to 70% of relative humidity
Note: When the ambient humidity is more than 60% RH,this product will appear 8% of the value which won't affect the product's performance and accuracy ,due to its high sensitivity.

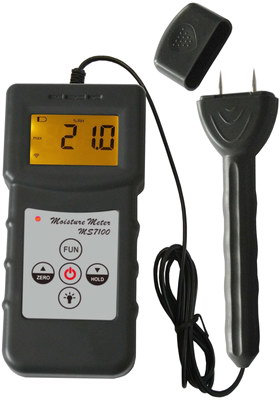

Pin Wood Moisture Meter MM7100

Application: applicable of woodwork, paper making, flakeboard, furniture, timber traders and other relevant industry.

Features:

Compact,portable ,easy to use.

Digital display with backlight.

Manual power off & Auto power off.

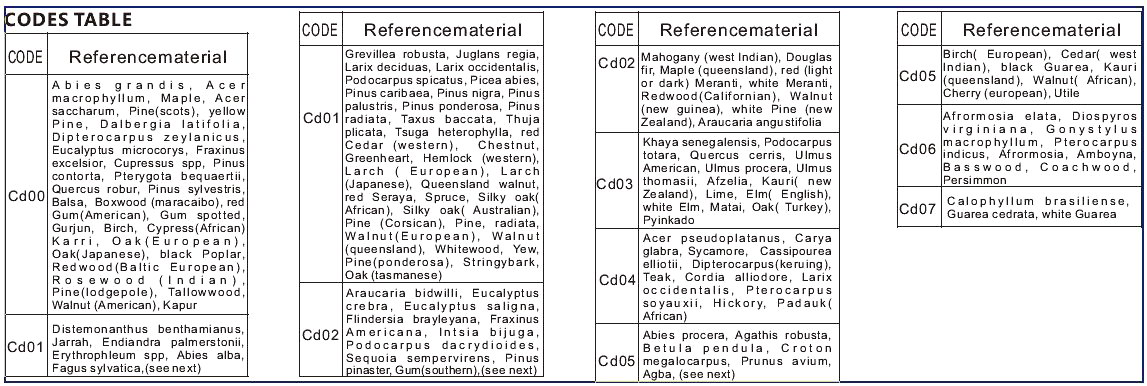

Specifications: wood over 150 species

Measuring range: 0-80%

Resolution: 0.1

Display: LCD display

Accuracy: ±(0.5%n+0.1)

Power supply: 4x1.5V AAA (UM-4) battery

Battery indicator: low battery indicator

MODEL: MM100W

WOOD POWDER MOISTURE METER

WOOD DUST MOISTURE METER

Specification
Display:4 digital LCD
Measuring range :0-80%
Temperature:0-60 ºC
Humidity:5%-90%
Resolusion:0.1
Accuracy: ± 0.5%n
Operation: Electrical Resistance Method, Automatic temperature Compensation
Power supply: 4x1.5 AAA size (UM-4) battery
Dimensions:
460mm×75mm×35mm
Weight:203g (not including batteries)
Guarantee:1 year

Packing: 24PCS/CTN, CTN SIZE: 51*34*44CM, G.W: 15.8KGS

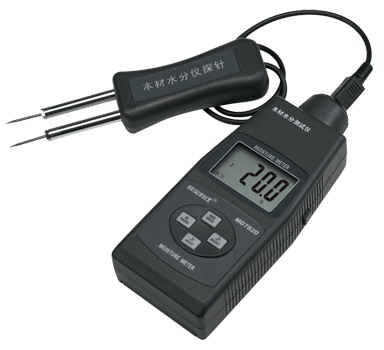

WOOD MOISTURE METER MD7820

Double color pocket size meter,
autocorrect environmental temperature,
and could select 4 species of the wood test.
Moisture measuring Range:
　　　2%~40%, 2%~50%,
　　　2%~60%, 2%~70%
　　　Resolution: 0.5%
Temperature measuring Range:
　　　-10~60°C(14~140°F)
　　　Accuracy: ±2°C(±4°F)
　　　Resolution: 1°C(2°F)
Date hold and can hold value.
Low power symbol automatic indicating.
Battery: 4x1.5V AA battery
Dimensions:
　174L×73W×38Hmm (for main unit)
　180Lx43Wx25Hmm (for measurement probe)

SR-G1 High Frequency Paper Moisture Meter

(professional for paper)

Technical Parameter:

Range of measuring moisture: 0 to 60%
Measuring Method: High Frequency induction
Display: Digital LCD Liquid Crystal Digital Display
Resolution: 0.1%
Measure Depth: 50mm
Variety: 6 stalls
Dimension: 160×60×27(mm)
Power: 9V(6F22 Type) With a laminated battery
Weight: 200 Gram

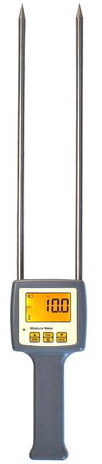

MM100M Paper Bale Moisture Meter

Waste Paper moisture meter MM100M used for measuring moisture content of paper materials (such as paper parcel, paper bale, paper dust). It applicable of paper making, flake board, furniture and mechanism of charcoal industry.
Features:
Compact, portable, easy to use.
Digital display with backlight.
Manual power off & Auto power off.
Specification:
Display:4 digital LCD
Measuring range :0-95%
Operation Condition:
Temperature:0-60
Humidity:5%-90%
Resolusion:0.1
Accuracy: ± 0.5%n
Operation: Electrical Resistance Method, Automatic temperature Compensation
Power supply: 4x1.5 AAA size battery
Dimensions: 460mm×75mm×35mm
Weight: 203g (not including batteries)
