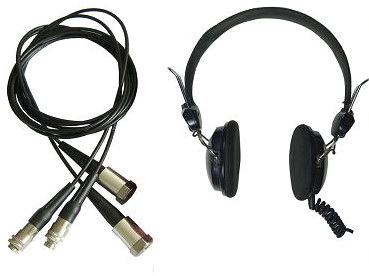

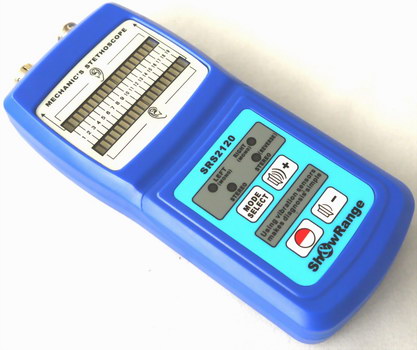

SRS2120 Mechanic Stethoscope

1. General Description

A. Widely used in ship, automobile, chemical manufacture, metallurgy, machine, household appliance and many other fields. It can pick up and amplify the weak audio signals via a sensitive piezoelectric sensor, and distinguish the normal/abnormal signal and its location.

B. Designed to help locate the source of excess bearing and machine noise easily at low cost. It is an ideal easy to use listening device for mechanical generated noise in all types of applications.

C. Used to quickly locate the source of engine noise such as piston slap, worn gears and bearings, damaged valves, water pump failure, blown gaskets. Also useful tracking down dashboard rattles and squeaks.

2. Main applications

A. Rapidly detect the machine noise from a diesel engine, an air cylinder or an automobile, and exactly find out the malfunction position.

B. Used to check the piston slap, worn gears, damaged valves and bearings, water pump failure in industry.

C. Monitor the automatic assembly line to ensure proper operation.

D. Identify the abnormal noise from an engine or a motor to avoid accident.

E. Monitor the working of all kinds of axletrees.

F. Monitor the working of a ship or vessel.

G. Used in chemical industry to check whether the liquid in a pipe is flowing or blocked.

I. Used in the maintenance of various vehicles and household appliances.

3. Specifications

Frequency range: 10-10KHz

Input Impedance: over 20M

Ambient Noise permitted: 100dB

Working Temperature: -10~60Celsius degree

Power supply: 4x1.5 AAA batteries

Size: 156〜67〜28mm

Weight: 270 g(including sensors)

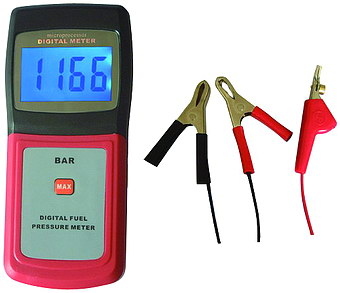

SR2680 Fuel Pressure Meter
Simple-to-use digital meter indicates diesel fuel pressure. Connect to battery terminals and fuel pressure sensor signal wire and digital display will show current fuel pressure and, if required, maximum pressure detected.
Measurement Range:

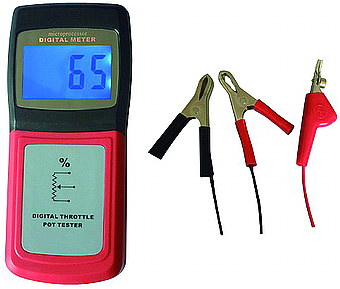

SR2690 Throttle Potentiometer Tester
Fast diagnosis of a common electronic fault. Simple-to-use digital meter indicates throttle position sensor output voltage. Connect to battery terminals and sensor signal wire and digital display will show output voltage as a percentage.
Measurement Range:

( If you need user manual, E-catalogue or picture without watermark for above meters, please ask for at: )
