TACHOMETER

SR2740 Digital Tachometer

Features:
MCU Embedded, and based on optoelectronic, semiconductor laser and other advanced technology, measuring RPM is accurate non-contact.
Wide range of the measurement and high-resolution.
Automatic measurement and manual measuring selection.
The power of laser is of high and low selection to adapt the far and near distance.
Automatic to record 50 sets of data, and the sampling interval time could be changed.
Automatic to record the Max, Min and Average data.
LCD light helping work in the dark.
Auto shut off after 30seconds without operation.
Specifications:

Measuring Range	2.5RPM~99,999RPM
Resolution	2.5RPM~999.9RPM(0.1RPM) 1000RPM~99,999RPM(1RPM)
Accuracy	±0.05%+1d
Sampling Time	0.5s(over 120RPM)
Available Distance	50mm~500mm
Range Selection	Automatic measurement / manual measurement
LCD Display	5 digit LCD display with maximum reading of 99999
Time base	Crystal Oscillator
Power	2*1.5V AAA alkaline batteries
Power Consumption	Laser in Low power 25mA Laser in High power 40mA
Data Hold	Display "HOLD"
MAX/MIN Record	Yes
Data Logging	Yes (50data)
Working Temperature	0ºC~50ºC (32ºF to 118ºF) <70% R.H.
Deposited Temperature	-10ºC to 55ºC (14ºF to 122ºF) <70% R.H.
LCD size	35*32mm
Dimensions	108mm(L)60mm(W)32mm(H)
Weight	Approx.73g

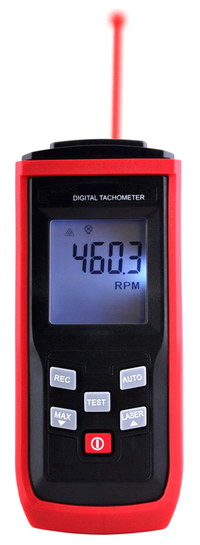

SR1141 Digital Tachometer

Model	SR1141
Measuring Range	2.5RPM~59,999RPM
Resolution	2.5RPM~999.9RPM(0.1RPM) 1000RPM~59,999RPM(1RPM)
Accuracy	±0.05%+1d
Sampling Time	0.5s(over 120RPM)
Available Distance	50mm~500mm
Range Selection	Automatic measurement / manual measurement
LCD Display	5 digit LCD display with maximum reading of 59999/99999
Time base	Crystal Oscillator
Power	2*1.5V AAA alkaline batteries
Power Consumption	Laser in Low power 25mA Laser in High power 40mA
Working Temperature	0ºC~50ºC (32ºF to 118ºF) <70% R.H.
Dimensions	130mm(L)55mm(W)30mm(H)
Weight	Approx.115g

SR1142 Digital Tachometer

Model	SR1142
Measuring Range	2.5RPM~99,999RPM
Resolution	2.5RPM~999.9RPM(0.1RPM) 1000RPM~99,999RPM(1RPM)
Accuracy	±0.05%+1d
Sampling Time	0.5s(over 120RPM)
Available Distance	50mm~500mm
Range Selection	Automatic measurement / manual measurement
LCD Display	5 digit LCD display with maximum reading of 59999/99999
Time base	Crystal Oscillator
Power	2*1.5V AAA alkaline batteries
Power Consumption	Laser in Low power 25mA Laser in High power 40mA
Working Temperature	0ºC~50ºC (32ºF to 118ºF) <70% R.H.
Dimensions	130mm(L)55mm(W)30mm(H)
Weight	Approx.115g

SR8905 Digital Tachometer

LCD	5-digital LCD with 18mm character in height
Unit	rpm
Measuring Range	2.5-99999rpm
Resolution	0.1rpm(2.5~999.9rpm) 1rpm(1000~99999rpm)
Basic Precision	+/-(0.1%n+5d)rpm;(2.5~999.9rpm) +/-(1%n+5d)rpm;(1000~99999rpm)
Laser Power	CLASS2 2-5mW
Sampling Rate	1second/time
Measuring Distance	50-500mm
Time Base	quartz crystal
Auto Power Off	1 minutes without any operation
MAX/MIN/AVG/LAST	YES
Low Battery Alert	YES
LCD Backlight	YES
Memory	YES
Operating Environment	0~50ºC;32~122ºF;10%~90%RH
Storage Environment	-10~80ºC;-14~176ºF;10%~75%RH
Power	2*1.5V AAA batteries
Size	55.729.9127mm
Weight	106g
3 Stripes Of Silver Reflective Paper Included
Remark: contact Us If You Need More Reflective Paper(200mm*12mm)

SR8906 Contact Type Tachometer

Introduction:

Tachometer is one of the necessary instruments in machinery industry, which is used to measure rotation speed, linear speed or frequency of electric motor, as well as rotation speed of impeller blades, roller and shaft. It is widely used in industries like electric motor, fan, washing machine, textile, automobile, aircraft, ships, etc.

Features:
1. Maximum value, minimum value, average value, last measured value holding.
2. Clear operation instructions and full display of unit symbol
3. A wide range of measurement, high resolution.
4. Low battery indicator, LCD backlight display, automatic shutdown.
5. With combination of latest microprocessor technology and laser technology, the instrument is more intelligent and more reliable.
6. Large LCD screen display, clear reading.
7. Solid and ingenious structure. The whole machine adopts durable and optimized electronic
components, and light but hard ABS plastic for the shell, which is good-shaped and user-friendly.

Technician Parameters:

Measure range: 0. 5~19999rpm
Resolution rate: 0.1rpm(0.5~999.9rpm), 1rpm(1000~19999rpm)
Accuracy rate: +/-0. 05% + 1
Sample interval: 0.8s (60RPM or above)
Power: 2* 1.5V AAA batteries
Size: 55.0*33. 0*157. 8mm

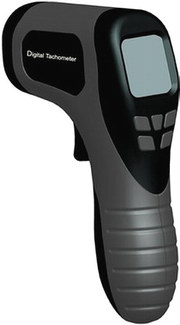

SR5900 Tachometer

Specification:

Gun type design.

Backlight.

Max, Min, Avg.

Data display.

5 digits LCD Display, Max 99999.

Measuring Range: 1-99999.

Resolution: 0.1RPM at 2.5~999.9RPM;

1RPM at 1000~99,999 RPM.

Accuracy: ±0.02%+1digtal.

Measuring distance: 50~500mm.

Sampling Time: 0.5s(above120RPM).

SR6208A Digital Tachometer Contact (same as MASTECH MS6208A)

General specifications

1. Rotation speed display is five-digit LCD number with maximum of 19999

2. Display 0 below 50 RPM

3. Measurement mode 0-5

4. Display voltage lower than 4.5V when batteries are low

5. Dimension: 155mm * 60mm * 27mm

6. Weight: 120g

7. Power supply: 4 X 1.5V SIZEAAA battery

8. Auto off time is 30 sec

Technical parameter

Measuring scope	Resolution	Accuracy
50-99.99RPM	0.01RPM	+/-(0.03%+/-2d)
100-9999.9RPM	0.1RPM
10000-19999RPM	1RPM

Accessories

1. 1 SR6208A bare machine

2. 1 Operation Manual

3. 2 measurement idler wheels

4. 2 measurement touch tips

5. 1 lengthening bar

6. 4 X1.5V AAA battery

SR6208B Digital Tachometer Non-contact (same as MASTECH MS6208B)

General specifications

1. Rotation speed display is five-digit LCD number with maximum of 99999

2. Display 0 below 50 RPM

3. Measuring distance is 50mm--250mm (when the battery voltage is sufficient)

4. Display voltage lower than 4.5V when batteries are low

5. Dimension: 155mm*60mm*27mm

6. Weight: 120g

7. Power supply: 4 X 1.5V SIZEAAA battery

8. Auto off time is 30 sec

Technical parameter

Measuring scope	Resolution	Accuracy
50-99.99RPM	0.01RPM	±(0.03%±2d）
100-9999.9RPM	0.1RPM
10000-99999RPM	1RPM

Accessories

1. 1 SR6208B bare machine

2. 1 Operation Manual

3. 1 reflective sheeting

4. 4 x 1.5V AAA battery

SR6234E Photo Tachometer

Specification:
5 digits 18 mm(0.6″)white backlight LCD
Accuracy: ±(0.05%+1digit)
Sampling Time: 0.5sec(over 120RPM)
Range Select: Auto-Switch
Memory: Max. value, Min. value, Last value
Can store 96s data
Time Base: 6MHz Quartz crystal
Detecting Distance: 50~500mm
Power Consumption: Approx 55mA
Measuring range: 2.5~99999RPM
Resolution: 0.1RPM (2.5~999.9RPM)
1RPM (over1000RPM)
Total Test Range: 1~99999
Frequency Range: 1~1666.6Hz
Resolution: 0.01Hz
Time Base Accuracy: 10x10-6(0~50°C)
Power: 3×1.5V AA battery

SR2235A Contact Tachometer

Specification:

5 digits 18 mm(0.6″)white backlight LCD
Accuracy: ±(0.05%+1digit)
Sampling Time: 0.5sec(over 120RPM)
Range Select: Auto-Switch
Memory: Max. value, Min. value, Last value
Can store 96s data, Power Consumption: Approx 45mA
Time Base: 6MHz Quartz crystal, Time Base Accuracy: 10×10-6(0~50°C)
Measuring range:
Contact tach: 0.5~19999 RPM
Surface speed: 0.05~1999.9 m/min
Contact length: 0.05~99999m
Resolution:
Contact tach:
0.1RPM (0.5~999.9RPM), 1RPM (over1000RPM)
Surface speed:
0.01m/min (0.05~99.99m /min), 0.1m/min (100m/min)
Contact length: 0.02m(0.05~99999m), Power : 3×1.5V AA battery

SR5371 Tachometer

Technical Specifications	SR5371
Measurement	10 to 99,999 RPM
Range Selection	10 to 99 RPM,100 to 999 RPM,1000 to 9999 RPM, 10000 to 99999 RPM
Best Accuracy	0.04% ± 2dgt
Display	99999 counts
Target Distance	50mm to 200mm
Start/Hold	Start and Stop Measurement, Data Hold
MAX/MIN/AVE/ZERO	Maximum Value, Minimum Value, Average Value, Zeroing
Sleep Mode	Around 15 minutes
Low Battery Display	4.8V

GENERAL CHARACTERISTICS

Power	1.5V Battery (AA) x 4
LCD Size	53 x 41mm
Product Color	Red and Grey
Product Net Weight	100g
Product Size	184 x 56 x 34mm
Standard Accessories	Batteries, English Manual, Reflecting Tape
Standard Individual Packing	Blister
Standard Quantity Per Carton	20pcs
Standard Carton Measurement	420 x 305 x 370mm (0.047 CBM Per Standard Carton)
Standard Carton Gross Weight	5kg

SR5372 Tachometer (USB Interface)

Technical Specifications	SR5372
Measurement	10 to 99,999 RPM
Range Selection	10 to 99 RPM,100 to 999 RPM,1000 to 9999 RPM, 10000 to 99999 RPM
Best Accuracy	0.04% ± 2dgt
Display	99999 counts
Target Distance	50mm to 200mm
Start/Hold	Start and Stop Measurement, Data Hold
MAX/MIN/AVE/ZERO	Maximum Value, Minimum Value, Average Value, Zeroing
Sleep Mode	Around 15 minutes
Low Battery Display	4.8V
USB	Yes

GENERAL CHARACTERISTICS

Power	1.5V Battery (AA) x 4
LCD Size	53 x 41mm
Product Color	Red and Grey
Product Net Weight	100g
Product Size	184 x 56 x 34mm
Standard Accessories	Batteries, English Manual, Reflecting Tape, USB Interface Cable
Standard Individual Packing	Blister
Standard Quantity Per Carton	20pcs
Standard Carton Measurement	420 x 305 x 370mm (0.047 CBM Per Standard Carton)
Standard Carton Gross Weight	5kg

DT-2236,DT-2236L Tachometer

DT-2236 with photo, contact and surface speed functions.

DT-2236L with laser, contact and surface speed functions.

The biggest difference between model DT-2236 and DT-2236L is the measuring way, DT-2236 is LED photoelectric; DT-2236L is Laser photoelectric.

Specification		Model	DT-2236/DT-2236L(Laser type) (Photo/Touch/Surface Speed)
Measuring range	Rotative Velocity	Photo	2.5~99,99 rpm
		Contact	0.5~19,999 r/min
	Surface Speed	Metric	0.05~1999.9 m/min
		Imperial	0.2~6560 inch/min
Laser Tachometer Detecting distance		Laser	50~600mm(DT-2236L)
		LED	50~200mm(DT-2236)
Accuracy			±(0.05％n+1d)
Resolution			0.01/0.1/1
Memory			MAX/MIN/LAST Value
Power supply			4×1.5V AA(UM-3)
Battery indicator			Low battery indicator
Dimension			220×68×38mm
Weight (Not including bettery)			194g
Standard delivery	Main unit		1
	Carrying case type		B01
	Instruction manual		1
	Reflective type 350mm		2
	Cone Adapter (AS35A)		1
	Funnel Adapter (AS35B)		1
	Surface speed test wheel (AS35C)		1
Optional accessories			Concave speed test wheel

DT-2858

DT-2857

DT-2856

Specifications		Model	DT-2858 (Laser/Contact/Surface speed)	DT-2857 (Laser type)	DT-2856 (Laser/Contact)
Measuring range	Rotative Velocity	Laser r/min	2.5~99.999	2.5~99.999	2.5~99.999
		Contact r/min	0.5~19.999	--	0.5~19.999
	Surface Speed	m/min	0.05~199.9	--	--
		ft/min	0.2~6560	--	--
Laser Tach Detecting distance			50~600mm
Accuracy			±(0.05%n+1d)
Resolution			0.01/0.1/1
Memory			max/min/last value
Power supply			4*1.5V AA(UM-3) battery
Battery indicator			Low battery indicator
Dimension			2207529mm	1467125mm	2207529mm
Wergit(Not including battery)			174g	114g	171g
Standard delivery	Main unit		1
	Carrying case type		1
	Instruction manual		1
	Reflective tape 350mm		2
	Cone Adapter (AS35A)		--	1	1
	Funnel Adapter (AS35B)		--	1	1
	Surface speed test Wheel (AS35C)		--	--	1
Optional accessories			Concave speed test wheel(AS35D)		Concave speed test wheel (AS35D)

DT-2859 Tachometer

Used to measure rotative velocity, surface speed, frequency of motor. Applicable to the product departments of motor, fan, chemical fiber, washing-machine, automobile, airplane, steamer etc.

Features:
* Multifunctional, one instrument combines PHOTO TACH. (RPM) & CONTACT TACH. (RPM , m / min, ft / min ). It can also be applied to the measurement of Frequency, Cycle, Pulse Times, Pulse Distance, User-defined Pulse Distance, etc.
* Digital display with no guessing errors.
* Wide measuring range and high resolution.
* The last value / max. value / min. value will be automatically stored in memory.
* The use of durable, long-lasting components, including a strong, light weight ABS-plastic housing assures elegant shape and ease of use.
* Use USB data output to connect with PC.
* Provide Bluetooth data output choice.

Specifications:

Measuring Range	Laser	2.5~99,999 r/min
	Contact	0.5~19,999 r/min
	Surface Speed	0.05~1999.9 m/min0.2~6560 ft/min
	Frequency	0.04~1666.65 Hz
Resolution	Rotative Velocity	0.1 r/min (0.5~999.9 r/min)
		1 r/min (Over 100 m/min)
	Surface Speed	0.01 m/min (0.05~99.9 m/min) 1 m/min (Over 1000 r/min)
		0.1 ft/min (0.1~999.9 ft/min) 1 ft/min (Over 1000 ft/min)
Accuracy	±(0.05%n+1d)
Sampling Time	1.0s(Over 60 r/min)
Test Range Select	Automation
Memory	Max Value /Min Value /Last Value
Time Base	Quartz Crystal
Laser Tach	50~250 mm/2~10 inch (Typical)
Detecting Distance	Max 600 mm/24 inch
Power Consumption	80 mA (Testing)
Operating Temperature	0~50ºC(32~122ºF)
Power Supply	4x1.5V AAA Size Battery
Dimensions	Main Unit	140x72x34 mm(5.5x2.8x1.3 inch)
	Sensor	Φ45x195 mm(Φ1.8x7.7 inch)
Weight	245g/0.540lb (Not Including Batteries)

SR7370T Vibration Tachometer

Used for measuring periodic motion, to check the imbalance and deflecting of moving machinery. Also can be used as contact tachometer and photo tachometer.

Features:
* In accordance with ISO 2954, used for periodic measurements, to detect out-of-balance, misalignment and other mechanical faults in rotating machines.
* Specially designed for easy on site vibration measurement of all rotating machinery for quality control, commissioning, and predictive maintenance purposes.
* Multifunctional, one instrument combines Photo Tachometer & Contact Tachometer. Be able to measure rotation rate RPM(r/min) & Frequency Hz.
* Individual high quality accelerometer for accurate and repeatable measurements.
* Wide frequency range (10Hz~10kHz) in acceleration mode.
* Optional headphones for use as electronic stethoscope.
* Bearing condition monitoring function.
* Use USB data output to connect with PC.
* Provide Bluetooth data output choice.

Specifications:

Sensor	Piezoelectric Transducer
Measuring Range	Acceleration: 0.1~400m/s², 0.3~1312ft/s², 0.0~40g Equivalent Peak
	Velocity: 0.01~400mm/s, 0.004~16.0inch/s True RMS
	Displacement: 0.001~4.0mm, 0.04~160.0mil Equivalent Peak-peak
Frequency Range	Acceleration: 10Hz ~ 10kHz
	Velocity: 10Hz ~ 1kHz
	Displacement: 10Hz ~ 1kHz
Rotation Rate Range	60~99,990RPM(r/min) (Reading should be multiplied by 10 if the display shows ‘10’)
Frequency Range	1~20,000Hz (Reading should be multiplied by 10 if the display shows ‘10’)
Accuracy	5 % of Reading + 2 digits
Data Output	USB
Operating Conditions	Temperature: 0~50 °C Humidity: <90 %RH
Power Supply	4 x 1.5V AAA size Battery
Dimensions	140 x 72 x 34 mm
Weight	380g (Not Including Batteries)
Standard delivery	1. Main Unit
	2. Powerful Rare Earth Magnet
	3. Piezoelectric Transducer
	4. Probe (Cone)
	5. Probe (Spherical)
	6. Contact Tachometer Sensor
	7. Photo Tachometer Sensor
	8. Reflective Tape Marks (350mm)
	9. Carrying Case
	10. Manual Book
Optional accessories	Headset, USB data cable with software, Bluetooth Data Adapter with Software

Basic function	Range	Basic accuracy
		DT-2234C	DT-2235B
Photoelectric rotation speed	2.5~99999RPM(r/min)	±(0.05%+1digit)
Contact rotation speed	0.5~19,999RPM(r/min)	-	±(0.05%+1digit)
Special function		DT-2234C	DT-2235B
Measuring way		Laser photoelectric	touched
Resolution		0.1RPM(2.5~999.9PM) 1RPM(over 1000RPM)	Contact rotation speed: 0.1RPM(0.5~999.9RPM) 1RPM(over 1000RPM)
Sampling time		0.5s(over 120RPM)	0.5s(over 120RPM)
Range selection		Auto switch	Auto switch
Effective distance		50mm~250mm	-
Power Consumption		Max.45mA	Max.45mA
Memory		Auto memory Max./Min. last value	Auto memory Max./Min. last value
Time Base		6MHz Quartz crystal	6MHz Quartz crystal
Battery Accuracy of time base		10*10^-6(0ºC~50ºC)	10*10^-6(0ºC~50ºC)
Battery		4*1.5V AA Size Battery	4*1.5V AA Size Battery
Size		184mm76mm30mm	184mm76mm30mm
Max.display		99999	99999
LCD size		5digits 18mm	5digits 18mm

Basic function	Range	Basic accuracy
Basic function	Range	DT-2235B+	DT-2236C
Photoelectric rotation speed	2.5~99999RPM(r/min)		±(0.05%+1digit)
Contact rotation speed	0.5~19,999RPM(r/min)	±(0.05%+1digit)	±(0.05%+1digit)
Contact rotation speed	0.5~1999.9RPM(r/min)	±(0.05%+1digit)	±(0.05%+1digit)
Special function		DT-2235B+	DT-2236C
Measuring way		Laser touched	Photoelectric, Touched
Resolution		Rotation speed: 0.1RPM(2.5~19.999RPM) 1RPM(over 1000RPM) Line speed: 0.01m/min(0.05~99.99m/min) 0.1m/min(over 100m/min)	Photoelectric rotation speed: 0.1RPM(2.5~999.9RPM) 1RPM(over 1000RPM) Contact rotation speed: 0.1RPM(0.5~1999.9RPM) 1RPM(over 1000RPM) Contact line speed: 0.01m/min(0.05~99.99m/min) 0.1m/min(over 100m/min)
Sampling time		0.5s(over 120RPM)	0.5s(over 120RPM)
Range selection		Auto switch	Auto switch
Effective distance			50mm~500mm
Power Consumption		Max.45mA	Max.55mA
Memory		Auto memory Max./Min. last value	Auto memory Max./Min. last value
Time Base		6MHz Quartz crystal	6MHz Quartz crystal
Battery Accuracy of time base		10*10^-6(0ºC~50ºC)	10*10^-6(0ºC~50ºC)
Battery		4*1.5V AA Size Battery	4*1.5V AA Size Battery
Size		190mm72mm37mm	215mm65mm38mm
Max.display		99999	99999
LCD size		5digits 18mm	5digits 18mm

Basic function	Range	Basic accuracy
Basic function	Range	DT-6234B	DT-6234C	DT-6235B	DT-6236B	DT-6236C
Photoelectric rotation speed	2.5~99999RPM(r/min)	±(0.05%+1digit)	±(0.05%+1digit)		±(0.05%+1digit)	±(0.05%+1digit)
Contact rotation speed	0.5~19,999RPM(r/min)			±(0.05%+1digit)	±(0.05%+1digit)	±(0.05%+1digit)
Contact line speed(metric)	0.05~1999.9m/min(r/min)			±(0.05%+1digit)	±(0.05%+1digit)	±(0.05%+1digit)
Contact line speed(imperial)	0.2~6560ft/min(r/min)			±(0.05%+1digit)
Special function		DT-6234B	DT-6234C	DT-6235B	DT-6236B	DT-6236C
Measuring way		LED photoelectric	Laser Photoelectric	touched	LED photoelectric	Laser Photoelectric
Resolution		0.1RPM (2.5~999.9PM) 1RPM(over 1000RPM)	0.1RPM (2.5~999.9PM) 1RPM(over 1000RPM)	Rotation speed: 0.1RPM(r/min) (0.5~999.9RPM) 1RPM(r/min) (over1000RPM) Line speed: 0.01m/min (0.05~99.99m/min) 0.1m/min (over100m/min) 0.1ft/min (0.1~999.9ft/min) 1ft/min (over1000ft/min)	Photoelectric rotation speed: 0.1RPM (2.5~999.9RPM) 1RPM (over1000RPM) Contact rotation speed: 0.1RPM (0.5~999.9RPM) 1RPM(over 1000RPM) Contact line speed: 0.01m/min (0.05~99.99m/min) 0.1m/min(over 100m/min)	Photoelectric rotation speed: 0.1RPM (2.5~999.9RPM) 1RPM (over1000RPM) Contact rotation speed: 0.1RPM (0.5~999.9RPM) 1RPM(over 1000RPM) Contact line speed: 0.01m/min (0.05~99.99m/min) 0.1m/min(over 100m/min)
Cumulation function		1~99999	1~99999
Sampling time		0.5s(over 120RPM)	0.5s(over 120RPM)	0.5s(over 120RPM)	0.5s(over 120RPM)	0.5s(over 120RPM)
Range selection		Auto switch	Auto switch	Auto switch	Auto switch	Auto switch
Effective distance		50mm~250mm	50mm~500mm		50mm~250mm	50mm~500mm
Power Consumption		Max.40mA	Max.55mA	Max.45mA	Max.45mA	Max.55mA
Memory		Auto memory Max./Min. last value	Auto memory Max./Min. last value and auto store 96teams data	Auto memory Max./Min. last value and auto store 96teams data	Auto memory Max./Min. last value	Auto memory Max./Min. last value
Time Base		6MHz Quartz crystal	6MHz Quartz crystal	6MHz Quartz crystal	6MHz Quartz crystal	6MHz Quartz crystal
Battery Accuracy of time base		10*10^-6(0ºC~50ºC)	10*10^-6(0ºC~50ºC)	10*10^-6(0ºC~50ºC)	10*10^-6(0ºC~50ºC)	10*10^-6(0ºC~50ºC)
Battery		4*1.5V AA Size Battery	4*1.5V AA Size Battery or to external DC6V	4*1.5V AA Size Battery or to external DC6V	4*1.5V AA Size Battery or to external DC6V	4*1.5V AA Size Battery or to external DC6V
Size		1607237mm	1607237mm	1607237mm	1607237mm	1607237mm
Max.display		99999	99999	99999	99999	99999
LCD size		5digits 18mm	5digits 18mm	5digits 18mm	5digits 18mm	5digits 18mm
Backlight		Yellow green backlignt LCD	Yellow green backlignt LCD		Yellow green backlignt LCD	Yellow green backlignt LCD

DT-2236B photoelectric contact Tachometer

Product Features

The stylish, comfortable to use and easy to operate

PV / contactless ID cards, meet the needs of measurement occasions

Wide measurement range, high resolution, fully functional

The largest / smallest / final value record inquiries

General characteristics

Show : 5 LCD display, the subtitles 10mm

Power : 4 on the 5th alkaline batteries

Instrument Size : 215 (L) Bob (w) x38 (H) mm

Weight : about 209g (without batteries)

Annex : portable Paper boxes, reflective paper (9 centimeters x2), tapered adapter, funnel-shaped adapter, wire-speed ferry.

Specifications

Functional	Range	Resolution	Uncertainty
Speed	2.5~999.9	0.1RPM	±(0.05%+1d)
Speed	1000~99999	1RPM
Speed Line	0.05~99.99	0.01M/min
Speed Line	100.0 More	0.1M/min

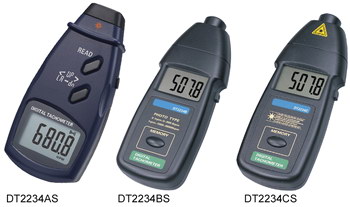

DT2234AS, DT2234BS, DT2234CS Tachometer

Display: 5 digits 18mm (0.6") LCD
Accuracy: ±(0.05%+1 digit)
Sampling Time: 0.5sec(over 120RPM)
Range Select: Auto-Ranging
Memory: Max. value, Min. value, Last value
Measuring Range: 2.5~99,999RPM
Resolution: 0.1RPM(2.5~999.9RPM)
　　　　　 1RPM(over 1,000RPM)
Detecting Distance: 50~500mm (Laser, DT2234AS/DT2234CS)
Detecting Distance: 50~250mm (LED, DT2234BS)
Battery: 3x1.5V AA battery (DT2234AS)
　　　　3x1.5V AAA battery (DT2234BS/DT2234CS)
Time Base: 6MHz Quartz crystal
Time Base Accuracy: 10x10-6(0~50°C)
Power Consumption: Approx 40mA
Dimension: 160Lx72Wx37H(mm) (DT2234AS)
　　 184Lx76Wx30H(mm) (DT2234BS/DT2234CS)

DT-2234A+, DT-2234C+ Tachometer
Display: 5 digits, 18mm LCD
Test Range:2 .5 to 99,999 RPM (r/min)
Resolution: 0.1 RPM (2.5 to 999.9 RPM)
1 RPM (over 1,000 RPM)
Accuracy: ±(0.05%+1 digit)
Sampling Time: 0.8 sec. (over 60 RPM)
Test Range Select: Automatic
Detecting Distance: 50 to 200mm/2 to10inch (LED, DT-2234A+)
50 to 500 mm/2 to 20inch (Laser, DT-2234C+)
Battery: 6F22 9V
Power Consumption: Approx. 35mA (LED, DT-2234A+)
Power Consumption:Approx.30mA (Laser, DT-2234C+)
Operation Temp.: 0 to 50ºC (32 to 122ºF)
Size:131×70×29mm
Weight:160g (including battery) .
Memory: Max. Value, Min. Value, Last Value.

DT-3234 DT-3236

DT-3234, DT-3236

Feature:

* We adopts advanced micro-process technology, photo technology, semiconductor technology etc. to measure line velocity , rotate speed and count.
* Wide measuring range, high resolution , strong anti-interference.
* Large LCD display , clear readings , no parallax.
* Max. value , min. value and the last value can be automatically stored .
* External connected AD adapter is favor of continuous test for a long time .
* When supply voltage is lower than , it can automatically indicate.
* Attachment fittings and photo fittings can be transformed each other at any time.

Measuring Mode	Unit	Measuring range	Resolution	Accuracy	Model
Rotate speed	r/min	1.5000~99999	0.1	0.03%+3d	DT3234 DT3236
Count	count	0~99999	1
Frequency	Hz	0.025~1666.6	0.01
Line speed	m/min	0.1400~1000.0	0.1	3%+5d	DT3236
	ft/min	0.4500~3280.0	0.1
	m/s	0.0023~16.667	0.001
Input	1~5Vp Pulse input (external rotate speed signal)				DT3234 DT3236
Output	rotate speed pulse output (TTL level)
Power source	4.5VDC outlet (optional)
Distance	2cm-100cm(Max:500cm)

DT-0071 Laser Type Tachometer
*Max/Min Value
*Memory function
*Large and easy-to-read LCD
Technical Specification:

Model	DT-0071
Measuring range	30~99999r/min
Accuracy	±(0.02%n+1dight)
Measuring distance	5~150cm
Store time	Until take out the battery
Memory	Max/Min/Last Value
Operating Temperature	0~70^oC
Adoption time	1(automation)
Power supply	3×1.5V AAA BATTERY
Dimensions	72mm x 136mm x 33mm
Weight	146g

В настоящее время большой популярностью пользуются цифровые лазерные тахометры, являющиеся просто незаменимыми приборами при выполнении операций регулировки электроблоков зажигания автомобильного двигателя, при определении порогового значения срабатывания экономайзера и др.

Высокоточный тахометр лазерного типа DT-0071 измеряет скорость вращения в интервале от 30 об/мин до 99999 об/мин на расстоянии до 1,5 м.

Областью применения тахометра DT-0071 является проведение высокоточных измерений скорости вращения предметов, находящихся на удаленном расстоянии, посредством лазера. Прибор имеет цифровой лазерный метод измерения – проводится анализ лазерного сигнала, отраженный от объекта. DT-0071 оснащен большим, удобным для чтения экраном и возможностью проведения тестирования на большом расстоянии.

Имеется встроенная память измеряемых показателей. Все измерения проводятся с точностью ± 0,02% при рабочей температуре 0-70 °C.

Питание ведется от трех батарей ААА по 1,5В. Габариты тахометра – 72мм х 136мм х 33мм, вес – 146 г.

DT-006 Tachometer
Technical Specification:
1. Measuring range: 20~50000r/min
2. accuracy: 2×10-4×N±1digit
3. store time: no limit
4. adoption time: 1s(automation)
5. weight: 300g(include battery)
6. measuring distance: 50~400mm
7. display: 5-digital LCD
8. temp: 0~+50^oC
9. battery: 4×1.5(DC)alkalinity battery
10. dimension: 78mm(L)×38mm(W)×180mm(H)

Сегодня сверхточные тахометры лазерного типа весьма популярны. Такие приборы позволяют проводить своевременные и точные измерения скоростей вращения поверхностей.

Тахометры выпускают трех различных видов. Первый тип – бесконтактные приборы. Здесь на вал тахометра прикрепляют специальную ленту, и прибор при вращении такого вала лазером или фотоэлементом производит подсчет числа возникновений метки. Вторым типом являются контактные тахометры, оснащенные специализированным контактным элементом, предназначение которого – отсчитывание скорости вращения. Третьего типа прибор относится к комбинированным и функционально совмещает в себе первый и второй тип.

Портативный тахометр DT-006 лазерного типа имеет интервал измерений 20～50000 оборотов в минуту. Измерения тахометр проводит с точностью 2×〖10〗^(-4)×N ± 1цифра. Время, за которое прибор будет адаптирован к условиям окружающей среды (рабочая температура 0ºC-50ºC) за 1сек.

Масса прибора – 300г. Расстояние для измерений: 50-400 мм, дисплей ЖК. Габариты – 78×38×180 мм.

Tachometer

page1 page2

TACHOMETER page1 page2
