Thermocouples



(Surface thermocouple, immersion thermocouple, K type thermocouple, type K thermocouple, Surface / Insertion Probes, Surface and Insertion Probes,thermocouple probe, Temperature probe, Handheld Thermocouples, Surface Probes, thermocouple connector)

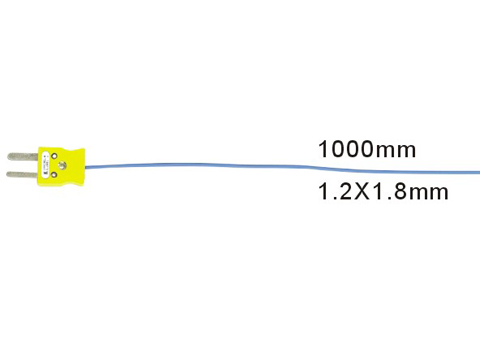

TP-01K

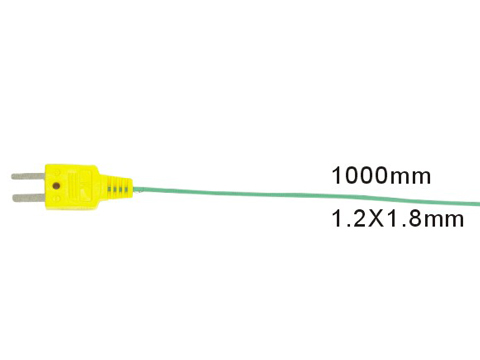

TP-01

TP-01B

TP-01C

TP-01A



Model Number

Temperature Range

Size

Hot response time

Application

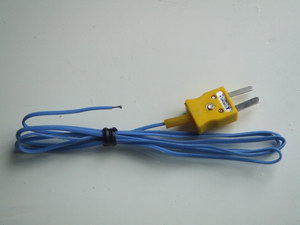

TP-01K

-50~204°C

< 5 seconds

Suitable for quickly measuring of air and gas, not suitable for liquid measuring.

TP-01

-50~204°C

< 5 seconds

Suitable for quickly measuring of air and gas, not suitable for liquid measuring.

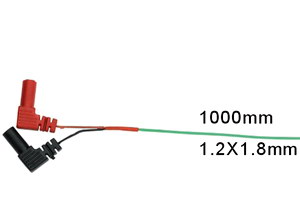

TP-01A

-50~204°C

< 5 seconds

Suitable for quickly measuring of air and gas, not suitable for liquid measuring.

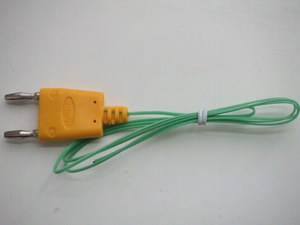

TP-01B

-50~204°C

19mm plug

< 5 seconds

Suitable for quickly measuring of air and gas, not suitable for liquid measuring.

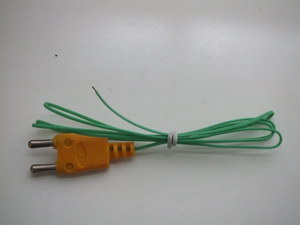

TP-01C

-50~204°C

12mm plug

< 5 seconds

Suitable for quickly measuring of air and gas, not suitable for liquid measuring.



TP-02 (spring wire)

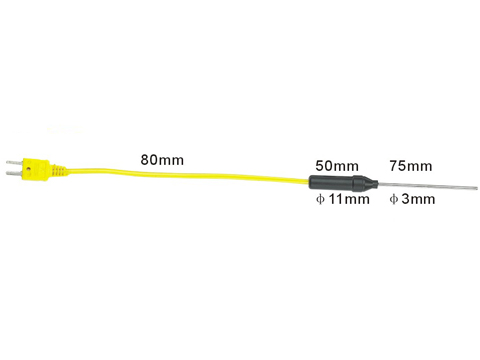

TP-02 (straight wire)

TP-02A (spring wire)

TP-02A (straight wire)

TP-02B (spring wire)

TP-02B (straight wire)



Model Number

Temperature Range

Size

Hot response time

Application

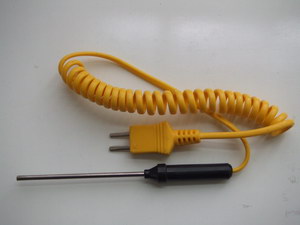

TP-02 (spring wire)

-50~400°C

3mm*8cm

< 15 seconds

Suitable for measuring the temperature of liquid and gel.

TP-02 (straight wire)

-50~400°

3mm*8cm

< 15 seconds

Suitable for measuring the temperature of liquid and gel.

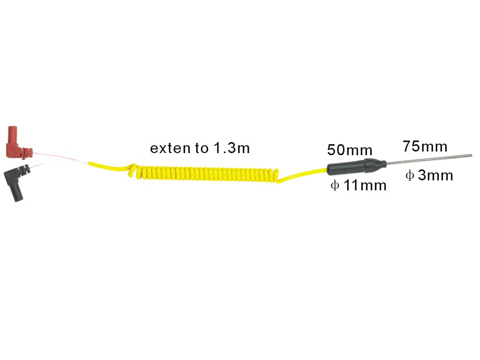

TP-02A (spring wire)

-50~400°

3mm*8cm

< 15 seconds

Suitable for measuring the temperature of liquid and gel.

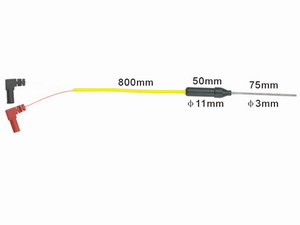

TP-02A (straight wire)

-50~400°

3mm*8cm

< 15 seconds

Suitable for measuring the temperature of liquid and gel.

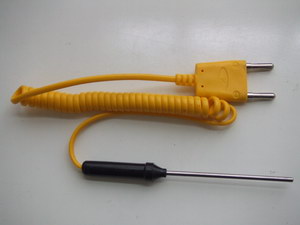

TP-02B (spring wire)

-50~400°

3mm*8cm

< 15 seconds

Suitable for measuring the temperature of liquid and gel.

TP-02B (straight wire)

-50~400°C

3mm*8cm

< 15 seconds

Suitable for measuring the temperature of liquid and gel.

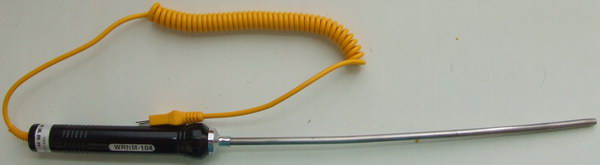

WRNM-104

Model Number

The limited temperature

Size

Hot response time

Application

WRNM-104 800°C dia3mm*20CM

10 seconds

Suitable for measuring the inner temperature within the flowings,

such as liquid and vapour etc.

WRNM-104

800°C

dia3mm*30CM

10 seconds

WRNM-104

800°C

dia4mm*30CM

10 seconds

WRNM-104

800°C

dia5mm*30CM

10 seconds

WRNM-104

800°

dia6mm*30CM

10 seconds

WRNM-104

800°

dia3mm*50CM

10 seconds

WRNM-104 / TP-03

800°

dia4mm*50CM

10 seconds

WRNM-104

800°C

dia5mm*50CM

10 seconds

WRNM-104 / TP-04

800°C

dia6mm*50CM

10 seconds

WRNM-104

800°C

dia3mm*100CM

10 seconds

WRNM-104

800°C

dia4mm*100CM

10 seconds

WRNM-104

800°C

dia5mm*100CM

10 seconds

WRNM-104

800°

dia6mm*100CM

10 seconds

WRNM-104

800°

dia3mm*150CM

10 seconds

WRNM-104

800°

dia4mm*150CM

10 seconds

WRNM-104

800°C

dia5mm*150CM

10 seconds

WRNM-104

800°C

dia6mm*150CM

10 seconds

WRNM-104

800°

dia3mm*200CM

10 seconds

WRNM-104

800°

dia4mm*200CM

10 seconds

WRNM-104

800°

dia5mm*200CM

10 seconds

WRNM-104

800°C

dia6mm*200CM

10 seconds



WRNM-101

WRNM-106

WRNM-108

WRNM-109 (The pincer pops head)



Model Number

The limited temperature

Size

Hot response time

Application

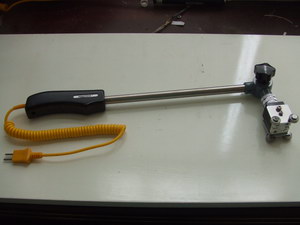

WRNM-101

250°C

< 5 seconds

Suitable for measuring the temperature with smooth metal,

plastic cylinder or roll's outside surface which is more than

130mm.

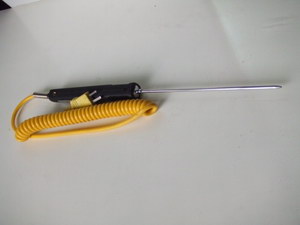

WRNM-106

500°C

dia3mm (dia4, 5, 6mm is available)

10 seconds

Suitable for measuring semi-solid flowing material, plastic,

clay and so on, and it also can be used in food industry.

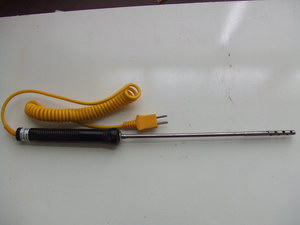

WRNM-108

700°C

< 10 seconds

Suitable for measuring the inner temperature within the

flowing gas and vapor.

WRNM-109

250°C

< 10 seconds

The pincer pop head can insert various kinds of pipeline, is

suitable for measuring the temperature outside various kinds

of pipelines.



WRNM-202 / TP-202

WRNM-201

WRNM-202 / TP-202

WRNM-203

WRNM-205

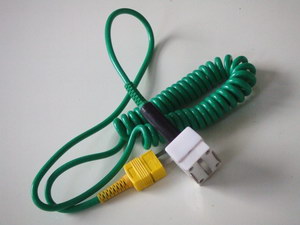

WRNM-209 (square end)

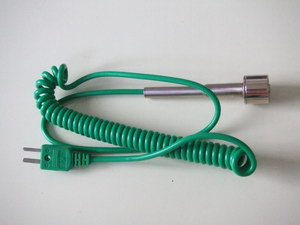

WRNM-209 (round end)



Model Number

The limited temperature

Size

Hot response time

Application

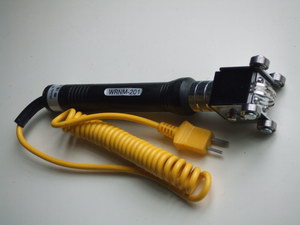

WRNM-201

250°C

< 5 seconds

Suitable for measuring the temperature with smooth metal,

plastic cylinder or roll's outside surface which is more than

130mm.

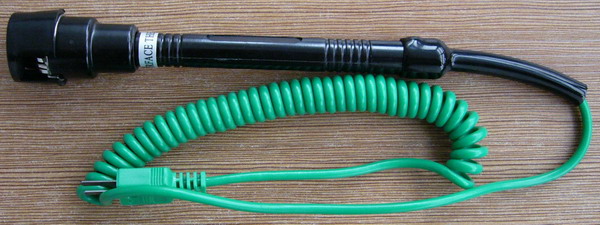

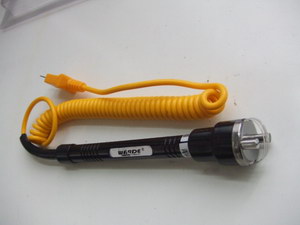

WRNM-202 / TP-202

500°C

< 5 seconds

Most suitable for measuring the surface temperature of

mould, mould for casting, old fashioned and inflexible glass

ware, bearing and other static solid.

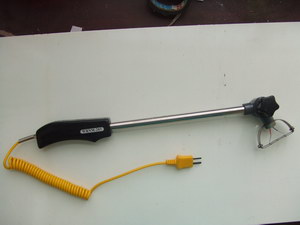

WRNM-203

250°C

< 10 seconds

The end of the bow-shape pop head is specially used to

measure roller bearing, pipeline, cylinder and extremely

crooked surface.

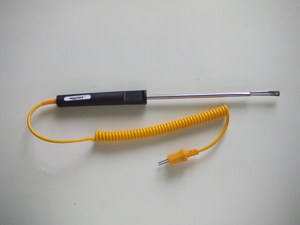

WRNM-205

200°C

< 3 seconds

The end of the thin shape slice pop head is suitable for the

narrow and small chink, so it is the ideal tool that measures

the temperature of mould, bearing, and the mechanical

equipment.

WRNM-209

400°C

< 10 seconds

Magnetic pop head can absorb various kinds of metal, and

measuring the surface temperature.



NR-81510

NR-81530

NR-81530A

NR-81530B



Model Number

The limited temperature

Size

Hot response time

Application

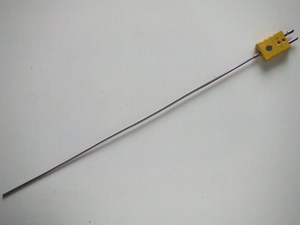

NR-81510

700°C

dia3.2mm*(20cm-50cm)

15 seconds

Suitable for measuring the liquid and air temperature.

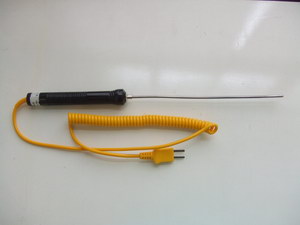

NR-81530

700°C

dia3mm*20cm

10 seconds

Suitable for measuring the liquid and air temperature.

NR-81530

700°C

dia4mm*20cm

10 seconds

Suitable for measuring the liquid and air temperature.

NR-81530

700°C

dia5mm*20cm

10 seconds

Suitable for measuring the liquid and air temperature.

NR-81530

700°C

dia6mm*20cm

10 seconds

Suitable for measuring the liquid and air temperature.

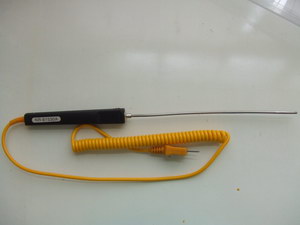

NR-81530A

1090°C

GH30 alloy steel; dia3mm*20cm

10 seconds

Suitable for measuring the liquid of high temperature.

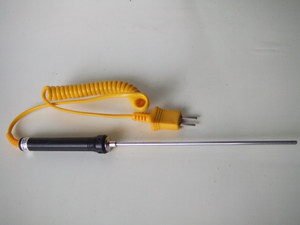

NR-81530B

700°C

dia3mm*15cm

15 seconds

Suitable for measuring the liquid and air temperature.

NR-81530B

700°C

dia3mm*20cm

15 seconds

Suitable for measuring the liquid and air temperature.



NR-81531A

NR-81531B

NR-81531C

NR-81532B

NR-81532A



NR-81533A



Model Number

The limited temperature

Size

Hot response time

Application

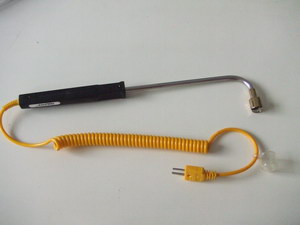

NR-81531A

400°C

< 5 seconds

Suitable for measuring the temperature of

smaller flat surface and crooked surface.

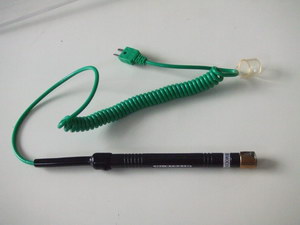

NR-81531B

400°C

< 5 seconds

Suitable for measuring the temperature of

smaller flat surface and crooked surface.

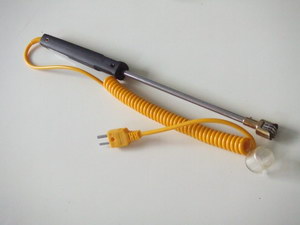

NR-81531C

400°C

<10 seconds

Suitable for measuring the temperature of

smaller flat surface and crooked surface.

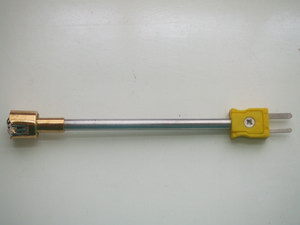

NR-81532B

400°C

< 5 seconds

Suitable for measuring the temperature of

smaller flat surface and crooked surface.

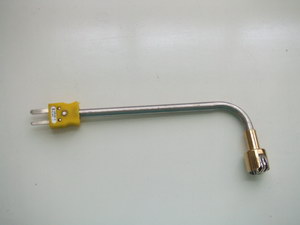

NR-81532A

400°C

< 5 seconds

Suitable for measuring the temperature of

smaller flat surface and crooked surface.

NR-81533A

200°C

< 3 seconds

Most suitable for measuring the temperature of

various kinds of small static plane, and the hot

response is very fast.

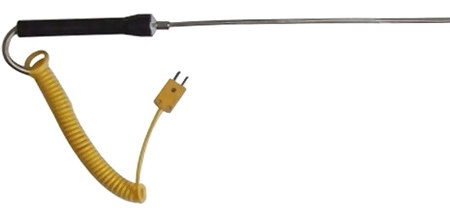

WRCK-181/ WRCK-182/ WRPK-186/ WRQK-186

WRFK-191



Model Number

Type

Temperature Range

Size

Hot response time

Application

WRCK-181

T

-40°C~+400°C

dia6mm*100cm

Stainless steel 304;

20~23 seconds

Suitable for measuring the temperature of solid surface and

the temperature of the liquid and gas.

WRCK-181 T -40°C~+400°C

dia3mm*150cm

Stainless steel 316;

20~23 seconds Suitable for measuring the temperature of solid surface and
the temperature of the liquid and gas.

WRCK-182

T

-40°C~+400°C

dia6mm*100cm

20~23 seconds

Suitable for measuring the temperature of solid surface and

the temperature of the liquid and gas.

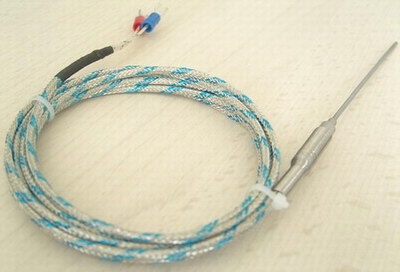

WRFK-191

J

-40°C~+750°C

dia3mm*50cm

20~23 seconds

Suitable for measuring temperature of liquid, vapor, gas, and

also can measure the surface temperature of solid.

WRPK-186

R

0°C~1300°C

dia6mm*30cm

20~23 seconds

Suitable for measuring temperature of liquid, vapor, gas, and

also can measure the surface temperature of solid.

WRQK-186

S

0°C~1300°C

dia6mm*30cm

20~23 seconds

Suitable for measuring temperature of liquid, vapor, gas, and

also can measure the surface temperature of solid.



 ( If you need prices, pictures without our water mark, user manual or E-catalogue for above meters, please ask for at: xiushunjie@163.com )
