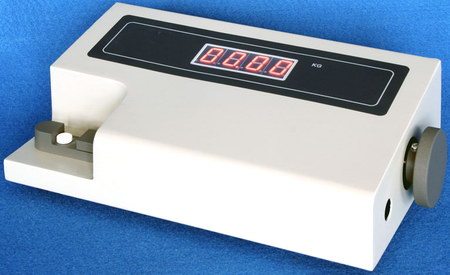

SRTH-1 Tablet Hardness Tester

Tablet hardness testers are instruments for detecting breaking hardness of tablet.
Applicable standards:
Corporate standard (Tablet hardness tester )Q/12XQ0186-2010
Features:
* The tablet is loaded and pressed artificially.
* It has high accuracy press sensor and hardness data is displayed on LED.
* It tests tablet hardness continuously.
* Test data is displayed and locked automatically, so can test be reset and cycled.
* Automation: auto-test, auto-diagnose, auto-alarm.
Specifications:
Hardness range: 2~199.9N
Hardness accuracy: ± Max.*0.05%
Moving distance of probe: 20mm
Power: 220V/ 50Hz/ 10W or 110V/ 60Hz/ 10W
Dimension: 320*200*100mm

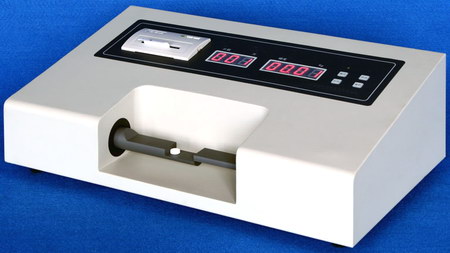

SRTH-2 Tablet Hardness Tester

 Tablet hardness testers are instruments for detecting breaking hardness of tablet.
Applicable standards:
Corporate standard (Tablet hardness tester )Q/12XQ0186-2010
Features:
* The tablet is loaded artificially and pressed automatically.
* There is high accuracy press sensor and hardness data is displayed on LED.
* It tests tablet hardness continuously. The biggest number is 100 pieces of a gang.
* Time of testing will be saved by directly measuring the diameter.
* Test data is displayed and locked automatically, so can test be reset and cycled.
* It can deal with and print out such data as: hardness of each tablet, the maximum value, the minimal value, the average value and the number of tablets.
* The parameters can be preset at any time. Either preset or real data is displayed on the LED.
* Automation: auto-test, auto-diagnose, auto-alarm.
Specifications:
Hardness range: 2~199.9N (can be customized up to 490N)
Hardness accuracy: ± Max.*0.05%
Probe procession range: 3~40mm
Test period: ≯20S/P
Max number in each group: 100P
Power: 220V/ 50Hz/ 60W or 110V/ 60Hz/ 60W
Dimension: 500*300*160mm

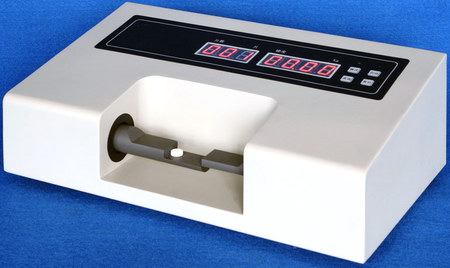

SRTH-3 Tablet Hardness Tester

Tablet hardness testers are instruments for detecting breaking hardness of tablet.
Applicable standards:
Corporate standard (Tablet hardness tester ) Q/12XQ0186-2010
Features:
* The tablet is loaded artificially and pressed automatically.
* There is high accuracy press sensor and hardness data is displayed on LED.
* It tests tablet hardness continuously. The biggest number is 100 pieces of a gang.
* Time of testing will be saved by directly measuring the diameter.
* Test data is displayed and locked automatically, so can test be reset and cycled.
* It can deal with and print out such data as: hardness of each tablet, the maximum value, the minimal value, the average value and the number of tablets.
* The parameters can be preset at any time. Either preset or real data is displayed on the LED.
* Automation: auto-test, auto-diagnose, auto-alarm.
Specifications:
Hardness range: 2~199.9N (can be customized up to 490N)
Hardness accuracy: ± Max.*0.05%
Probe procession range: 3~40mm
Test period: ≯20S/P
Max number in each group: 100P
Power: 220V/ 50Hz/ 60W or 110V/ 60Hz/ 60W
Dimension: 400*240*160mm
