Digital RCD (ELCB) Tester, Digital RCD (ELCB) Detector

¡¡

Digital RCD  (ELCB) Tester RCD8581

¡¡

SPECIFICATIONS:

Technical Specifications

Measuring Range

Best Accuracy

Trip Current Setting

10mA/20mA/30mA/100mA/300mA/500mA

Yes

Range Select

x1/2; x1; x5; 250mA (Fast Trip)

Yes

Trip Current Accuracy

+2% ~ +8% (x1)

Yes

Trip Time

1000ms, 300ms(x5), 40ms(250mA)

Yes

Trip Time Accuracy

¡À(0.6%¡À 4)

Yes

Trip Time Resolution

1ms

Yes

Operational Voltage

(195 ~ 253V) / 50Hz

Yes

Special Functions



AUTO RAMP Function

Test the trip time and trip current



Connections Check Function

Lamps Indication

Yes

Phase Switch

0¡ã and 180¡ã

Yes

Data Hold

Freeze the digital trip time display for several seconds

Yes

Power off Buzzer



Yes

Mis-Operation Buzzer



Yes

Over Load Display

OL

Yes

Full Icon Display



Yes

Disconnect Buzzer



Yes

Fused



Yes

GENERAL CHARACTERISTICS:

Power

No Battery is required

LCD Size

71 mm x 34 mm

Product Color

Red & Grey

Product Net Weight

400g

Product Size

160 x 100 x 71 mm

Standard Accessories

Test Lead, English Manual, Carrying Bag

Standard Individual Packing

Gift Box

Standard Quantity Per Carton

20 pcs

Standard Carton Measurement

440 x 430 x 335 mm (0.063 CBM Per Export Carton)

Standard Carton Gross Weight

14kg

¡¡

Digital RCD  (ELCB) Tester RCD8582

¡¡

SPECIFICATIONS:

Technical Specifications

Measuring Range

Best Accuracy

Trip Current Setting

10mA/20mA/30mA/100mA/300mA/500mA

Yes

Range Select

x1/2; x1; x5; AUTO RAMP

Yes

Trip Current Accuracy

+2% ~ +8% (x1)

Yes

Trip Time

1000ms, 300ms(x5), 40ms(250mA)

Yes

Trip Time Accuracy

¡À(0.6%¡À4)

Yes

Trip Time Resolution

1ms

Yes

Operational Voltage

(195 ~ 253V) / 50Hz

Yes

Special Functions



AUTO RAMP Function

Test the trip time and trip current

Yes

Connections Check Function

Lamps Indication

Yes

Phase Switch

0¡ã and 180¡ã

Yes

Data Hold

Freeze the digital trip time display for several seconds

Yes

Power off Buzzer



Yes

Mis-Operation Buzzer



Yes

Over Load Display

OL

Yes

Full Icon Display



Yes

Disconnect Buzzer



Yes

Fused



Yes

GENERAL CHARACTERISTICS:

Power

No Battery is required

LCD Size

71 mm x 34 mm

Product Color

Red & Grey

Product Net Weight

400g

Product Size

160 x 100 x 71 mm

Standard Accessories

Test Lead, English Manual, Carrying Bag

Standard Individual Packing

Gift Box

Standard Quantity Per Carton

20 pcs

Standard Carton Measurement

440 x 430 x 335 mm (0.063 CBM Per Export Carton)

Standard Carton Gross Weight

14kg

¡¡

Digital RCD  (ELCB) Tester RCD8583

¡¡

SPECIFICATIONS:

Technical Specifications

Measuring Range

Best Accuracy

Trip Current Setting

10mA/20mA/30mA/100mA/300mA/500mA

Yes

Range Select

x1/2; x1; x2; x5; AUTO RAMP

Yes

Trip Time

1000ms, 300ms(x5)

Yes

Trip Time Resolution

1ms

Yes

Trip Time Accuracy

¡À(0.6%¡À4)

Yes

Range of Voltage

0¡«400VAC£¨45¡«65Hz£©

Yes

Voltage Accuracy

¡À(5%¡À2)

Yes

Operational Voltage

230V¡À10%/ 50Hz

Yes

Safety

CAT III300V

Yes

Special Functions



Connections Check Function

Yes

Frequency measurement

Yes

Over temperature measurement be automatic ban

Yes

Abnormal voltage measurement be automatic ban

Yes

Data Hold

Yes

Power off Buzzer

Yes

Fused

Yes

Backlight

Yes

Low voltage display

Yes

GENERAL CHARACTERISTICS:

Power

1.5V(AA)¡Á8

LCD Size

125mm x 37mm

Product Color

Red & Grey

Product Net Weight

1000g

Product Size

210x 175x90mm

Standard Accessories

Test Lead, English Manual, Carrying Bag

Standard Individual Packing

Gift Box

Standard Quantity Per Carton

4 pcs

Standard Carton Measurement

510x 330x 300mm

Standard Carton Gross Weight

15kg
¡¡

¡¡

Digital RCD  (ELCB) Tester RCD8585

¡¡

SPECIFICATIONS:

Technical Specifications

Measuring Range

Best Accuracy

Trip Current Setting

10mA/20mA/30mA/100mA/300mA/500mA

Yes

Range Select

x1/2; x1; x2; x5; AUTO RAMP

Yes

Trip Time

1000ms, 300ms(x5)

Yes

Trip Time Resolution

1ms

Yes

Trip Time Accuracy

¡À(1%+3)

Yes

Range of Voltage

60¡«400VAC£¨45¡«65Hz£©/ 60¡«400VDC

Yes

Voltage Accuracy

¡À(3%+5)

Yes

Operational Voltage

230V¡À10%/ 50Hz

Yes

Safety

CAT III300V

Yes

Special Functions



Connections Check Function

Yes

Max measurement current 2.5A

Yes

Remote control measurement

Yes

Frequency measurement

Yes

Over temperature measurement be automatic ban

Yes

Abnormal voltage measurement be automatic ban

Yes

Data Hold

Yes

Power off Buzzer

Yes

Fused

Yes

Backlight

Yes

Low voltage display

Yes

GENERAL CHARACTERISTICS:

Power

1.5v(AA)¡Á8

LCD Size

125mm x 37mm

Product Color

Red & Grey

Product Net Weight

1000g

Product Size

210x 175x90mm

Standard Accessories

Test Lead, English Manual, Carrying Bag

Standard Individual Packing

Gift Box

Standard Quantity Per Carton

4 pcs

Standard Carton Measurement

510x 330x 300mm

Standard Carton Gross Weight

15kg

¡¡

¡¡

¡¡

Socket Tester RCD XHST207



Main Features:
-Swift and efficient testing of RCDs;
-Definite indication of socket wiring;
-PE fault detection;
-Easy and safe, clear indication on LCD;
-4 versions available: Euro plug, UK plug, USA plug, China plug;
-Customized version is welcomed;
-6 indications range: wiring ok, PE open, L open, N open, L/N reverse, L/PE reverse, L/PE reverse, PE open.

Specifications:

MODEL

XHST207

Testing Voltage

AC 230V¡À10%

Frequency

50-60Hz

Contact Voltage Limit

< AC 50V (relative to ground)

Overload Voltage Protection

AC/DC 300V

Working Temperature

0ºC~40ºC

Working Humidity

80%

PE Fault Detection

yes

Reaction Limit

< AC 50V (relative to ground)

General Characteristics:

Product Size

EU version

72 * 78 * 80mm

UK, US, CN version

72 * 78 * 55mm

Product Net Weight

40g

Standard individual packing

blister card

Standard Quantity per Carton

55 pcs.

Measurement of Standard Carton

EU version

795*525*245mm (0.1023 CBM)

UK, US, CN version

790*407*240mm (0.07 CBM)

Gross weight of Standard Carton

8kgs

¡¡

XHST207A Socket Polarity & Loop & RCD Tester (3 in 1)

¡¡

Main Features:
First Socket test to indicate actual fault location- Live, Neutral or Earth.
Earth loop test at main frequency to check the actual condition of the installation.
Swift and efficient testing of RCDs by 30mA.
Microprocessor control with built-in visible self-check ensures total confidence in correct functioning at all time.
four socket versions available: Euro major(Schuko), UK, USA/Japan/Brazil, Australia/Argentina/China.
Customized socket version is welcomed.
¡¡

Specifications:

MODEL

XHST207A

Wire condition

17 possible conditions

Loop Impedance

Good (<1.8ohms), check (1.8~92ohms), urgent check (>92ohms)

RCD test

30mA

Nominal Voltage Limit

230V AC ¡À10% or 110V AC ¡À 10%

Frequency

50~60Hz

Working Temperature

0¡ãC~40¡ãC

Working Humidity

80%

¡¡

General Characteristics:

Product Size

EU version

72 * 78 * 80mm

UK,US,CN version

72 * 78 * 55mm

Product Net Weight

40g

Standard individual packing

blister card

Standard Quantity per Carton

66 pcs.

Measurement of Standard Carton

EU version

645*360*276mm (0.064 CBM)

UK,US,CN version

645*360*276mm (0.064 CBM)

Gross weight of Standard Carton

9.5kgs
¡¡

Socket tester RCD XHST207B

Features:
-Swift and efficient testing of RCDs;
-Definite indication of socket wiring;
-4 versions available: Euro plug, UK plug, USA plug, China plug;
-Customized version is welcomed;
-6 indications range: wiring ok, PE open, L open, N open, L/N reverse, L/PE reverse, L/PE reverse, PE open.

Specifications:

MODEL

XHST207B

Testing Voltage

AC 230V¡À10%

Frequency

50-60Hz

Contact Voltage Limit

< AC 50V (relative to ground)

Overload Voltage Protection

AC/DC 300V

Working Temperature

0ºC~40ºC

Working Humidity

80%

Reaction Limit

< AC 50V (relative to ground)

General Characteristics:

Product Size

EU version

72 * 78 * 80mm

UK, US, CN version

72 * 78 * 55mm

Product Net Weight

40g

Standard individual packing

blister card

Standard Quantity per Carton

55 pcs.

Measurement of Standard Carton

EU version

795*525*245mm (0.1023 CBM)

UK, US, CN version

790*407*240mm (0.07 CBM)

Gross weight of Standard Carton

8kgs
¡¡

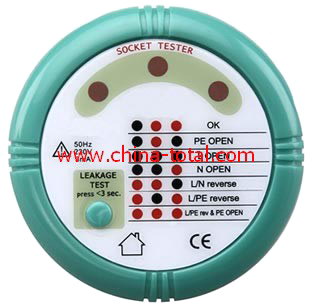

Socket Polarity Tester RCD XHST207C

Features:

-Swift and efficient testing of RCDs by 30mA

-Definite indication of socket wiring

-4 versions available: Euro major(Schuko and CEE7/7), UK, USA/Japan/Brazil, Australia/Argentina/China plug.

-Customized version is welcomed

¡¡

Specifications:

MODEL

XHST207C

Testing Voltage

AC 230V¡À10% or AC 110V¡À10%

Frequency

50-60Hz

Contact Voltage Limit

< AC 50V (relative to ground)

Overload Voltage Protection

AC/DC 300V

Working Temperature

0ºC~40ºC

Working Humidity

80%

RCD test

30mA

Reaction Limit

< AC 50V (relative to ground)

¡¡

General Characteristics:

Product Size

EU version

60 * 60 * 65mm

UK, US/JP/BR, AU/AR/CN version

60 * 60 * 60mm

Product Net Weight

40g

Standard individual packing

blister card

Standard Quantity per Carton

55 pcs.

Measurement of Standard Carton

EU version

795*525*245mm (0.1023 CBM)

UK, US/JP/BR, AU/AR/CN version

790*407*240mm (0.07 CBM)

Gross weight of Standard Carton

8kgs
¡¡

Socket Polarity Tester RCD XHST207D

Features:

-Definite indication of socket wiring

-4 versions available: Euro major(Schuko and CEE7/7), UK, USA/Japan/Brazil, Australia/Argentina/China plug.

-Customized version is welcomed

¡¡

Specifications:

MODEL

XHST207D

Testing Voltage

AC 230V¡À10% or AC 110V¡À10%

Frequency

50-60Hz

Contact Voltage Limit

< AC 50V (relative to ground)

Overload Voltage Protection

AC/DC 300V

Working Temperature

0ºC~40ºC

Working Humidity

80%

Reaction Limit

< AC 50V (relative to ground)

¡¡

General Characteristics:

Product Size

EU version

60 * 60 * 65mm

UK, US/JP/BR, AU/AR/CN version

60 * 60 * 60mm

Product Net Weight

40g

Standard individual packing

blister card

Standard Quantity per Carton

55 pcs.

Measurement of Standard Carton

EU version

795*525*245mm (0.1023 CBM)

UK, US/JP/BR, AU/AR/CN version

790*407*240mm (0.07 CBM)

Gross weight of Standard Carton

8kgs

¡¡

 ( If you need user manual or E-catalogue for above meters, please ask for at: xiushunjie@gmail.com )
