Fiber Fusion Splicer

¡¡

OFS-80AC Optical Fiber Splicer

OFS-80AC optical fiber fusion splicer has been designed as high performance precision instruments, which is with comprehensive and rapid calculation and micron-level precisely controlled. It will automatically finish the whole fiber fusion process in a short time, and LCD monitor can display all information at one glance. Also, it is compatible with all kinds and type of fiber.OFS-80AC is your reliable fusion splicer for general-purpose optical network construction and maintenance, FTTx and laboratory application.

Features:
Splicing quality

* Excellent SPLICING result and perfect HEATING protection
Using the mainstream PAS Technology in the industry combining with 3-D Auto core alignment precisely control.
* Auto Fiber identification
Display fiber¡¯s category, cleaved angle, axial offset angle, and splicing loss evaluation; save screenshot, splicing condition parameter and result.
* Friendly GUI
Using generic graphical buttons and icons to control powerful default and customized processes.
Design feature
* More suitable fiber holder
Fiber holder is interchangeable or all-in-one fixable. Apply to cleave and splice250µm, 900µm, 3mm and indoor cable and also splice-on connectors (SOC) adapter. Others can be customized.
* Battery replaceable
Battery can be charged independently with car charge cable or adapter, and also can be charged when it is working.
* Transparent protection cover for the LCD monitor
* Inner light to set fiber in dark environment
* 180¡ãrevertible display screen
Powerful function
* Auto checks fiber end-face, calibrate position of splicing, and calculate splicing loss
* Temperature and atmospheric pressure compensation function
* Arc power automatic optimization

SPECIFICATIONS

Application

250µm/900µm/3mm/indoor cable compatible

Fiber Splicing Conditions

Fiber Material

SiO2

Applicable Fibers

SMF(ITU-T G.652), MMF(ITU-T G.651), DSF(ITU-T G.653), NZDSF(ITU-T G.655),BIF(ITU-T G.657), EDF

Fiber Count

Single

Coating Diameter

100 ~ 1000 µm

Cladding Diameter

80 ~ 150 µm

Fibers Cleave Length

8 ~ 16mm (Coating diameter: 250µm); 16mm (Coating diameter: 250 ~ 1000µm)

Protection Sleeve Length

60mm, 40mm and a series of micro sleeves

Standard Performance

Actual Average Splice Loss

SMF: 0.02dB; MMF: 0.01dB; DSF/NZDSF/EDF/BIF: 0.04dB

Return Loss of Splice

60 dB or greater

Splice Time

9s

Heat Time

Typical 36s; 0 ~ 240s (Heating time adjustable)

Battery Capacity

Typical 250 cycles (splicing + heating) with Li-battery (4400mAh) only

Fiber View

X/Y; 5.7 inch color LCD monitor

Fiber Image Magnification

Two CMOS cameras, 240X

Mode

Heat Programs

60 preset/user-definable modes

Reinforcement Mode

Yes

Fiber Aligning Method

PAS Auto core alignment

Arc Calibration Mode

Automatic and manual

Function

The Loss of Presumption

Yes

Splice Memory

MAX. 5,000 data / 100 pictures

Tension Test

2N

Automatic Discharge Test

Yes

V-groove White Lighting

Yes

Power Supply

Battery

Rechargeable Li-battery (4400mAh)

AC Adapter

AC-input: (50/60Hz) 110 ~ 240V; DC-output: 14.5 ~ 15V

Size & Weight

Dimension

180W*160D*155H mm

Weight

2.2kg (without battery); 2.5kg (with battery)

Connectivity

RS-232/USB

Work & Storage

Conditions

Operating Conditions

0 ~ 5000m above sea level; 0 to 95% RH; -10 to 50ºC; Max. wind velocity of 15m/s

Storage Condition

-40ºC to + 80ºC, 0 to 95% RH

Standard Package:

Item

Quantity

OFS-80AC

Fusion Splicer

1

AC Adapter

1

Data Transfer Cable USB

1

Data Transfer Cable RS232

1

Electrode

2

Cooling tray

1

Screen Transparent Cover

1

Working Strap

1

Carrying Case

1

Spare Electrodes

1

1.5mm Hexagonal Wrench

1

Nipper (Plastic)

1

Brusher

1

Certificate of Calibration

1

Warranty card

1

Quick Guide

1

CD (User Manual & Operation Video)

1

4in1 holder

2

¡¡

Option Items:

Item

PN

HF-250µm holder

AC-OFS-250

HF-900 µm holder

AC-OFS-900

HF-0.9/3 mm holder

AC-OFS-0.9/3

HF-IN holder

AC-OFS-IN

4in1 Holder

AC-OFS-4in1

Cleaver

OFC-10; OFC-15

Miller Stripper

CFS-2 / CFS-3

Bowtie Stripper

PFS-10

Thermal stripper

TS-1B

Alcohol pot

-

Car charger

ADPT-V30

Battery charger

ADPT-BC1

Protection  Clamp

AC-FCL-5

Soft Bag

PB-80-0/ PB-80-1

Lithium Battery

AC-BAT-82 (6.6 Ah); AC-BAT-84 (5.2 Ah); AC-BAT-85 (7.8 Ah)

Lamp

AC-OFS-LAMP

Electrodes Cleaner

EC-1

Cooling Tray

RJ-09-11-V2.2

¡¡

¡¡

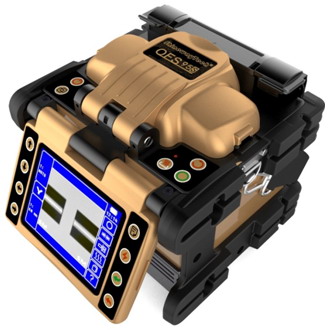

OFS-95 Core Alignment Splicer

OFS-95 fiber optic fusion splicer is designed as a highly flexible instrument with 6-motor precise micron level control and splice loss lower than 0.02dB for G.652 fiber. Equipped with removable universal fiber holders (250¦Ìm/900¦Ìm/patchcord/FTTx indoor fiber etc.), SOC holder and internal thermometer / barometer, OFS-95 can be deployed anywhere. Fast 5s startup, 9s splicing and automatic heating features enable the splicer an efficient tool for large volume splicing operation during fiber installation and maintenance.

Features
* Compact and light:1.7Kg with battery
* 6 motors core alignment for precise high-quality splicing
* SMF (G.652), MMF (G.651), DSF (G.653), NZ-DSF (G.655), BIF (G.657), EDF splicing
* One-fit-all fiber holders for bare fiber, pigtails, patch cords and FTTH indoor fibersplicing
* Auto fiber end-face inspection, auto arc position adjustment, splice loss calculation, temperature and pressure compensation
* Auto and manual splicing
* Splicing¡Ü9s, heating¡Ü25s(time and power adjustable)
* Arc counter prompts electrode change upon usage
* Auto arc optimization
* Auto heating
* Dual V-groove for perfect fiber alignment
* X/Y and X+Y display for clear fiber core image
* Quick mount battery with power indicator, housed in dust and water splash proof battery dock
* DC output to power external devices
* Built-in illumination
* Wind ¨C dust ¨C rain - shock proof
* Auto display flip
* Graphical user interface for easy understanding and operation
* Multi-language support
* Optional password protection and GPS function

Specifications:

Fiber Type

SMF(G.652),MMF(G.651),DSF(G.653),NZ-DSF(G.655),BIF(G.657),EDF

Protection Sleeve

40mm - 60mm

Splicing Principle

Arc

Alignment

6motors core alignment

Splice Control

Auto and manual splicing

Arc Optimization

Yes

Display Mode

X, Y, X+Y

User Interface

Graphical interface, multiple language support

Splice Result

Auto splice result(Loss) calculation and display

Data

5000 splice records (CSV format), 100 screenshots

Data Port

USB, driver-free

Fiber Diameter

Cladding: 80~150¦Ìm,coating: 100~1000¦Ìm

Cleave Length

¡Ü16mm

Splice Loss

MMF¡Ü0.01dB(Typical); SMF/BIF¡Ü0.02dB(Typical); DSF/NZDSF/EDF¡Ü0.04dB(Typical)

Return Loss

>60dB

Splice Time

¡Ü9s

Heating Time

¡Ü25s, adjustable

Zoom

200x (X or Y)

Electrode Life

¡Ý5000 splices

Tension Test

¡Ý2N

Start-up Time

5s

Power Supply

220V¡À10%, 50Hz; Rechargeable lithium battery

Battery Life

¡Ý200 splicing and heating

Chanrging Time

¡Ü4 hours

Size

125x125x135mm(L x W x H)

Weight

1.7Kg(with battery)

Work Temperature

-20ºC~+55ºC

Storage Temperature

-40ºC~+70ºC

Humidity

¡Ü95% (non-condensing)

Altitude

0 m~5000 m

Wind Speed

¡Ü15 m/s

Configuration
Splicer unit x1, Fiber holder x 1 (pair), Lithium battery x 1,Power adapter x 1,Fiber cleaver x 1, Cooling tray x 1,USB cable x 1, Carry case x 1, Quick Reference

¡¡

¡¡

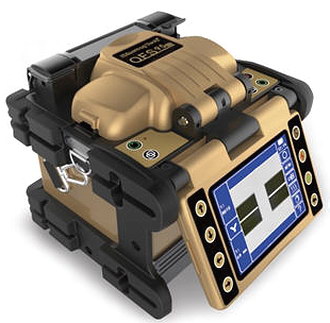

OFS-95EA Cladding Alignment Splicer

OFS-95EA optical fiber fusion splicer is designed with high-speed image processing technology and special precision-positioning technology. It will automatically finish the whole fiber fusion process in 9 seconds by fast mode, and splice loss is lower than 0.02dB for single mode fiber. 3.5-inch LCD, dual CMOS monitors, X and Y axis separately display or simultaneously display, thus different fusion stages can be showed clearly. It is compatible with ITU-T SM/MM/DS/NZDS/ED fiber, and is equipped with 4-in-1 holders and SOC adapter.
OFS-95EA has small volume, light weight, AC/DC power supply and 200+ splicing and heating cycles, so it is particularly suited to telecommunications, radio and television, railway, electric power, military, research institutes for optical fiber communication construction and maintenance. OFS-95EA is ideal for FTTH installation and maintenance.

Hardware Structure Design Feature
* Compact and convenient:1.5kg with battery
* Four motors, special precision-positioning technology
* Splice Loss: SMF/BIF: ¡Ü0.02dB(typ.); MMF: ¡Ü0.01dB(typ.); DSF/NZDSF/EDF: ¡Ü0.04dB(typ.)
* High precision 4-in-1 holder (250¦Ìm/900¦Ìm/patch cord/FTTx indoor fiber etc), SOC holder
* Battery and the host separation design, convenient maintenance and replacement of the battery
* Double V-groove design
* High strength portable straps design is convenient for hanging and operating
* Inner light make the operation environment in the dark
* Wind, sand and dust prevention, waterproof, astigmatic design adapt to the outdoor environment
* Screen flip-over feature
* 76cm drop proof / ISTA certificate
* Optional GPS function
Software Design Feature
* Auto checks fiber end-face, calibrate position of splicing, calculate splicing loss and temperature and pressure compensation and so on
* Between X/Y single screen and X&Y easily switch
* Auto splice, auto arc optimization, auto heating
* ¡Ü9s splicing time, ¡Ü36s heating time (adjustable)
* 3 hours fast battery recharge
* Ready-package battery with electric quantity indicator, convenient carrying and change
* Built-in counter to warn replace electrode

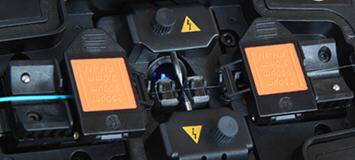

OFS-95 Holders
High precision 4-in-1 holder design exquisitely, operate conveniently, can hold 250¦Ìm, 900¦Ìm, 3mm patch cord and FTTx indoor fiber.

Specifications:

Display

3.5 inch Color LCD,  X,Y / X / Y, Auto turn-over

Dimension

125*125*135mm (L*W*H) (without rubber boot)

Weight

1.2kg (without battery) / 1.5kg(with battery)

Fiber Type

SMF(ITU-T G.652), MMF(ITU-T G.651), DSF(ITU-T G.653), NZDSF(ITU-T G.655), BIF(ITU-T G.657), EDF

Fiber Material

SiO2

Fiber Count

Single

Cladding Diameter

80 - 150µm

Coating Diameter

100 - 1000µm

Fiber Cleave Length

8 - 16mm (Coating diameter: 0 - 250µm); 16mm (Coating diameter: 250 - 1000µm)

Sleeve Length

¡Ü60mm

Splice Mode

Arcing / 60 modes

Splice Loss Evaluation

Yes

Fiber Check

Fiber cleaving angle / axis offset / loss / fiber alignment / focus etc.

Memory Space

5,000 splices /100 screenshots

Tension Test

2N

Electrode Life

5000 arcs

V-groove Illumination

White LED

Splice Loss

SMF/BIF ¡Ü0.02dB(typ.)/ MMF¡Ü0.01dB(typ.) / DSF/NZDSF/EDF¡Ü0.04dB(typ.)

Return Loss

>60dB

Splice Time

¡Ü9 seconds

Boot Time

5 seconds

Heating

Auto heating / 18 seconds (Typical, 0 - 240s adjustable) / 20 modes

Battery Life

200+ (splice + heating) cycles

Imaging System

Dual CMOS cameras, 200x zoom

Power Saving

Auto screen / power off (Adjustable)

Power Supply

4400mAhLithium Battery

AC/DC Power Adapter (50/60Hz) 110~240V, DC14.5~15V

Connectivity

USB

Working Condition

-20ºC -+ 55ºC / -40ºC-+70ºC (Working / Storage),

Humidity: 95%(Non-Condensing)

Altitude: 0 - 5000m,Wind Speed ¡Ü15m/s

Configuration:
Splicer unit x1, Fiber holder x 1 (pair), Lithium battery x 1,Power adapter x 1,Fiber cleaver x 1, Cooling tray x 1,USB cable x 1, Carry case x 1, Quick Reference

¡¡

¡¡

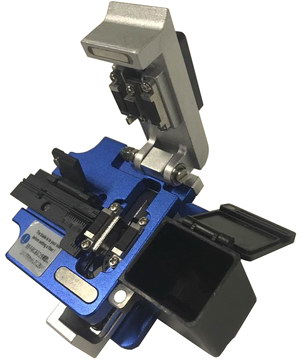

OFC-10CT Optical Fiber Cleaver

Features:

* High precision preparation for single fiber
* Compact & handy outfit design
* Rugged body
* Simplified blade adjustment & replacement
* Collecting fiber box
Specifications:

Model

OFC-10CT

Bare Fiber Diameter

125µm

Coating Diameter

0.25~0.9mm

Fiber Type

Single fiber

Cleaved Length

9-24mm

Cleaved Angle

¡Ü0.5¡ã

Blade Life

48,000 cleaves

Mode

Semiautomatic

Dimensions (H*W*D)

54*58*58mm

Weight

280g

¡¡

¡¡

DVP-740 Mini FTTx Fusion Splicer
Features

1. Compact & Light weight.
2. Applied for Fibers, Cables and SOC (splice- on connector).
3. Integrated Holder Design.
4. Fully Automatic, Semi-automatic and Manual Operation.
5. Shockproof, Drop resistance.
6. Power saving Function.
7. 4.3 inch Color LCD monitor.
8. USB&DC interface.

SPECIFICATIONS

¡¡

Wavelength (nm)

1310nm¡À20nm/ 1550nm¡À 20nm

Dynamic Range (dB£©

31/ 29dB

Distance range (Km)

5m~160km

Pulse width (ns)

5ns~20¦Ìs (5ns, 10ns, 20ns, 50ns, 100ns, 200ns, 500ns, 1¦Ìs, 2¦Ìs, 5¦Ìs, 10¦Ìs, 20¦Ìs)

Distance accuracy (m)

¡À(1m +0.001%*range + sampling resolution)

Attenuation accuracy

¡À0.05dB

Loss limit (dB)

0.01dB

Loss resolution (dB)

0.001dB

Sampling points

64000

OTHER INDICATORS

¡¡

Sampling points

3000

LCD type

4.3 inch TFT colorized LCD

Laser adapter

FC/PC, SC/PC (option)

Interface

USB, RJ45

dimensions (mm)

200*126*62mm

Power

AC/DC adapter input AC90-240V ¡À10% output DC12V

Operating temperature

0¡ãC~40¡ãC

storage temperature

 -20¡ãC~70¡ãC

relative humidity

<80%

weight

<1Kg

Battery

built-in rechargeable Li-ion battery charging time<4 hours working time: 8 hours

¡¡

Standard Package

¡¡
