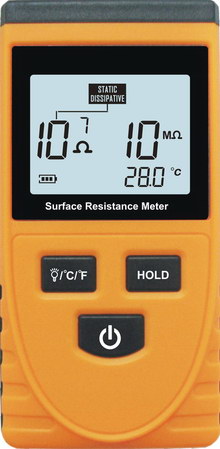

SRR3110 Surface Resistance Meter

Introduction

As one resistance meter for object surface, SRR3110 can measure the resistance value on
object surface by putting two parallel electrodes close to object surface to be measured, so as to judge whether the measured object is a conductor, static material or insulator; meanwhile the meter can be used to measure the resistance to ground of object, which is specially applied to different antistatic fields.

Functions and Features:
►Surface resistance test;
►Three modes to display resistance value on object surface or material property simultaneously;
►Ambient temperature measuring;
►Temperature unit conversion;
►Data holding;
►LCD backlight;

Product specification

Measuring range of resistance: 10³~10¹²

Measuring precision of resistance: ±10%

Response time of resistance measurement: 1s

Measuring range of temperature: 0°C~50°C/ 32°F~122°F

Measuring precision of temperature: ±2°C/ ±3.6°F

Power supply: 9V 6F22 battery

Dimension: 63.6*31*125.8mm

Weight:157.60g

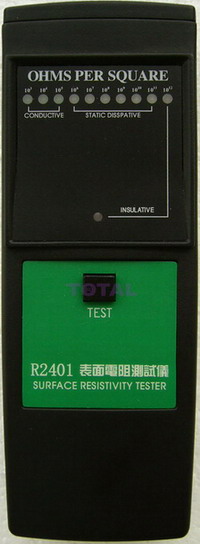

R2401 Surface resistance tester

R2401 surface resistance tester is special designed for the environment defended-electronic technology, art and equipment. Not only test the surface resistance, but also test the field resistance. R2401 use special parallelism electrode sensor way may simply re-test all kinds of conduction, electricity leakage, and insulation surface.

In some special using area and environment, for some high special requirement on electronic availability defense, for example: IC, product line, test meter and equipment, and so on.

There are some elements affect the electronic, for example: Electromagnet, maybe the friction chances happen, a dry degree of air and so on. Through testing the square meter of resistance

Which is available test ways, the same as the electronic voltage, from two different opinion descriptions, measuring one parameter. But it looks like more intuition, accurate, stable, reasonable, convenience than the electronic voltage. So it is the best tool to replace electronic voltage.

Function, Range, Accurate

Function:

Can test all kinds of surface resistance and field resistance. High quality LED display system using skillful even if in the terrible environment, clear reader,

Test range: 1x10³----1x10¹²Ω/㎡

Accurate: Over 10%

Resistance Range

Low resistance test state: 1x10³,1x10⁴,1x10⁵Ω/㎡

High resistance test state: 1x10⁶,1x10⁷,1x10⁸1x10⁹,1x10¹⁰,1x10¹¹Ω/㎡

Insulation test state: 1x10¹²Ω/㎡

State Indication

Low resistance display state: Consist of three green LED glow sets and 10³, 10⁴,10⁵ cooperate display test count.

High resistance display state: Consist of seven yellow LED glow sets and 10⁵, 10⁶,10⁷ ,10⁸, 10⁹,10¹⁰, 10¹¹cooperate display test count.

Insulation display state: Consist of two red LED glow sets and 10¹² , TEST cooperate display test count

Test field resistance

Insert the field line into field extend socket, then insulation meter right side test electrode (the same side of socket), connect the field line using the clip; place the meter on the surface be tested, press the TEST button, the LED glow continually show the resistance count.

Size of meter: 174*63*30mm.
