Clean Bench/ Laminar Flow Cabinet

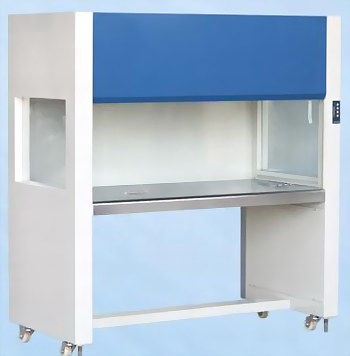

SRJ-1x & SRJ-2x series Clean Bench

Summary of use:
Widely used in medicine, pharmacy and laboratories to get non-microorganisms, non-dust and clean conditions.
Characteristics:
1. Vertical flow, work closed flat make air outside and harmful smell prevented.
2. Adjustable air quantity and fan system, wind speed in work area in ideal condition.
3. Table surface made of high-quality stainless steel.
Major technical parameter:

Model

SRJ-1D

SRJ-1S

SRJ-2D

SRJ-2S

Power supply volfage (V)

AC220V50Hz

Cleanliness Grade

100Grade@≥0.5μm(209E)

Number of colony

≤0.5 (Φ90)mm culture dish

Average wind speed

0.3-0.45m/s  0.3-0.6m/s(Double speed for select )

Noise

≤62αB (A)

Vibration and semi-peak value

≤3μm

≤4μm

Illuminance

≥300LX

Quantity of Daylight & u.v lamp

18W*1pcs

20W*2pcs

30W*1pcs, 30W*1pcs

18W*1pcs, 20W*2pcs

Maximum power dissipation (W)

0.4KW

0.4KW

0.8KW

0.8KW

Specification and quantity of (HEPA)S

820*600*50*1pcs

610*610*50*2pcs

Size of working room (mm) ( H*W*D )

530*750*455

530*755*500

530*1100*555

530*1100*560

Overall dimension of packing (mm) (L*W*H)

1040*725*1610

1040*790*1610

1490*725*1530

1490*725*1610

NW (Kg)

160

160

200

200

GW (Kg)

225

225

305

305

Operator (s)

1 people with 1 tables

1 people with 2 table

2 people with 1 table

2 people with 2 table

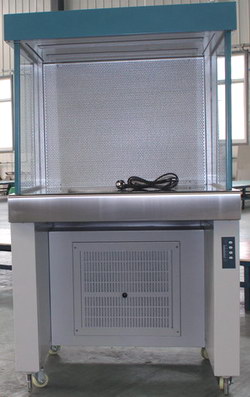

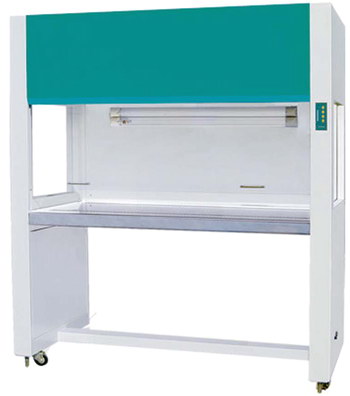

SRJ-840 & SRJ-1300 Laminar Flow Cabinet



                                                                    SRJ-840                                                                         SRJ-1300

Uses:
It is widely used in the field of electron, national defense, precise instrument, meter, pharmacy and chemical experiment etc.
Characteristics:
1. Horizontal laminar flow, open bench board.
2. Stainless steel bench board and tempered glass side-boar; slim filter without division-plate.
3. Pre-filtering blowing rate is freely adjustable.
4. Variable flowing rate air supply system and light touching switch.
Main parameters:

Model

SRJ-840

SRJ-1300

Voltage (V)

220V50Hz

Clean grade

100 grade@≥0.5μm (FBI209E)

Number of colony

≤0.5/utensil. time (Φ90mm cultivation utensil)

Average wind speed

0.3-0.6M/S (Adjustable)

Noise

≤62αB (A)

Vibration and semi-peak numerical value

≤3μm

Luminance

≥300LX

Specifications and quantity of light tube

18W*1pcs, 20W*2pcs

30W*1pcs, 30W*1pcs

Maximum power dissipation

0.4KW

0.8KW

Filter Specifications and quantity of (HEPA)

760*610*50*1pcs

610*610*50*2pcs

Working area size (mm)

660*650*570

1120*660*570

Overall dimension of device (mm)

840*825*1430

1300*810*1440

Overall dimension of packing (mm)

1040*1020*1620

1500*1020*1620

NW (Kg)

120

170

GW (Kg)

170

235

Operators

Single person

Double person

One side

One side

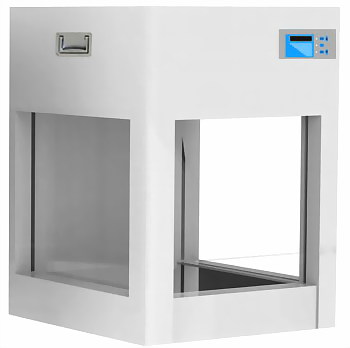

SRJ-600 series Mini Laminar Flow Cabinet

Features:

There are two types:
SRJ-600P can only protect products;
SRJ-600N can protect operator and environment.
Laminar flow cabinets can widely used in medical research laboratories, hospitals, manufacturing facilities and other research and production environments.
Advantages:
1. HEAP Filter with efficiency:99.999% at 0.3um.
2. Microprocessor control system, LED Display.
3. Air speed adjustable.
4. Tabletop type, easy to carry and save space.
Main Technical Parameters:

Model

SRJ-600P

SRJ-600N

External Size (W*D*H)

550*450*700mm

Internal Size (W*D*H)

480*340*370mm

Display

LED Display

Airflow Velocity

0.3-0.6m/s

>0.5m/s

Material

Main Body: Cold-rolled steel with anti-bacteria powder coating

Work Table:304 stainless steel

Front Window:5mm toughened glass, anti-ultraviolet radiation.

Pre-filter

Polyester fiber, washable

HEAP Filter

99.999% efficiency at 0.3um

Noise

<50Db(A)

Front Window

Manual

Max Opening

310mm

Fluorescent Lamp

8W*1

UV Lamp

8W*1

Consumption

110W

Power Supply

110/220V±10% 50/60Hz

Standard Accessory

Fluorescent lamp*1, UV lamp*1

Gross Weight

40kg

Packing Size (W*D*H)

650*550*800mm



( If you need user manual or E-catalogue for above meters, please ask for at: xiushunjie@gmail.com )
