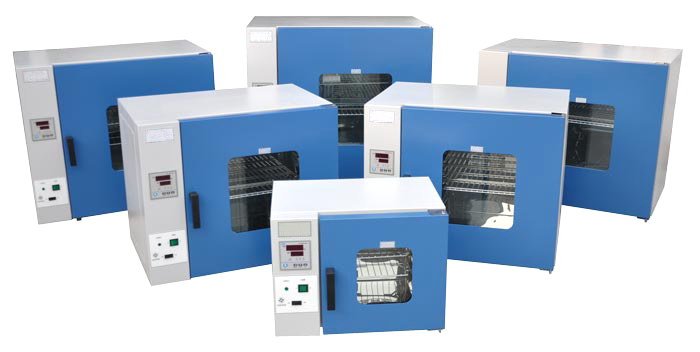

DHG series Air Dry Oven

Summary:

The product is applied in industrial and mining enterprises, laboratory, R&D institution and other places for desiccation, baking dewaxing and sterilization.

Features:
- Several sets of data shows in a LED screen or big LCD screen (when you order, please indicate). The operation interface can be easily understood and handling.
- Unique air duct system, no manual adjustment any more. Vapor can be released automatically.
- Microcomputer control with timing. Overtemperature deviation protection and digital display, accurate and reliable.
- Specular stainless-steel chamber, semicircular arcs at corners for easy cleaning, and the space between the shelves can be set by the customer.
- Good cold-roll shelf sheets cover, with anti-static plastic coating.
- Independent alarm system for temperature-limiting, automatically interrupt operation when exceeding the limit. Ensure the safety of the experiment. (optional)
- RS485 interface may link the recorder and the computer, records the changes of temperature parameter. (optional)
Optional Parts:
- Intelligent program controller
- Independent limit temperature controller
- Embedded printer
- RS485 interface and special software
- Test hole 25mm/50mm

Specifications:

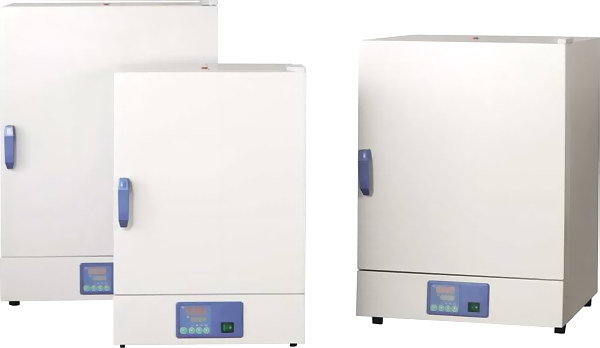

DHG-9031A, DHG-9051A, DHG-9091A Oven (Natural Convection)

Features:

- Stainless-steel chamber, semicircular arcs at corners for easy cleaning, and the space between the shelves in the chamber is adjustable;
- With LED display;
- Rainbow brand (Korea) manual controller;
- Programmable controller: 15 periods 30 steps, 1 to 99 hs 99mins for each periods, fan speed 0 to 100% adjustable; (optional)
- RS485 connector can connect computer and printer to record the parameters and the variations of temperature. (optional)
Optional Parts:
- PID controller
- Intelligent Programmable temperature controller
- Printer
- RS485 connector

Specifications:

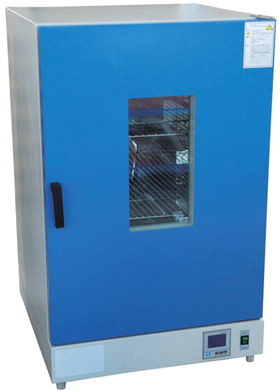

BPG series Precise Air Dry Oven

Summary:

The product is applied in industrial and mining enterprises, laboratory, R&D institution and other places for desiccation, baking dewaxing and sterilization.
Features:
- Several sets of data shows in a LED screen or big LCD screen (when you order, please indicate). The operation interface can be easily understood and handling.
- German-imported blower, lifetime can be lengthened twice over.
- Blower’s fast and slow speed control mode, temperature uniformity can be improved.
- Unique air duct system, no manual adjustment any more. Vapor can be released automatically.
- Overtemperature deviation protection and microcomputer PID blurred controller, quick achieve to the design temperature with steady operation.
- Microcomputer control with timing, accurate and reliable.
- Specular stainless-steel chamber, semicircular arcs at corners for easy cleaning, and the space between the shelves can be set by the customer.
- Thickened design of wall and the door protects user’s safety even after continuous using of the oven.
- Sealing design of a new type synthetic silicon sealing stripe prevents heat loss effectively, assembly units’ service life can be lengthened on the basis of 30% energy saving.
- Independent alarm system for temperature-limiting, automatically interrupt operation when exceeding the limit. Ensure the safety of the experiment. (optional)
- RS485 interface may link the recorder and the computer, records the changes of temperature parameter. (optional)

Optional Parts:
- Intelligent program controller
- Independent limit temperature controller
- Embedded printer
- RS485 interface and special software
- Test hole 25mm/50mm

Specifications:

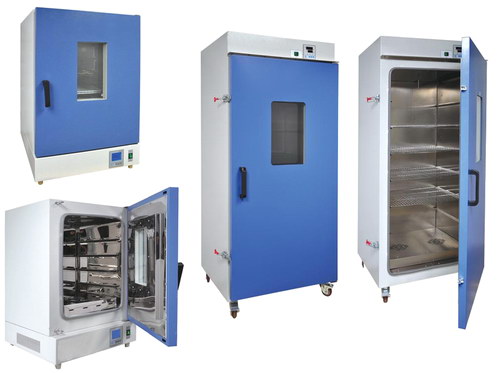

HTG series Vertical Circulation Oven

Summary:

The product is used for environmental protection, sanitation epidemic prevention, drug inspection, crop-livestock and aquatic products etc. which is applied in scientific research institutions, college and manufacture department. It is a specialized constant-temperature equipment for water analyzing, BOD test, cultivation and storage of bacteria, mould and microorganism, plant cultivation and seed-breeding test.
Features:
- Several sets of data shows in a LED screen or big LCD screen (when you order, please indicate). The operation interface can be easily understood and handling.
- German-imported blower, lifetime can be lengthened twice over.
- Blower’s fast and slow speed control mode, temperature uniformity can be improved.
- Unique air duct system, no manual adjustment any more. Vapor can be released automatically.
- Overtemperature deviation protection and microcomputer PID blurred controller, quick achieve to the design temperature with steady operation.
- Specular stainless-steel chamber, semicircular arcs at corners for easy cleaning, and the space between the shelves can be set by the customer.
- Good cold-roll shelf sheets cover, with anti-static plastic coating.
- Independent alarm system for temperature-limiting, automatically interrupt operation when exceeding the limit. Ensure the safety of the experiment. (optional)
- RS485 interface may link the recorder and the computer, records the changes of temperature parameter. (optional)
Optional Parts:
- Intelligent program controller
- Independent limit temperature controller
- Embedded printer
- RS485 interface and special software
- Test hole 25mm/50mm

Specifications:

HHG series High Temperature Dry Oven

Summary:

The product is applied in industrial and mining enterprises, laboratory, R&D institution and other places for desiccation, baking dewaxing and sterilization.
Features:

- With LED screen or big LCD screen (when you order, please indicate).
- The working room uses high-quality steel plate or stainless steel plate.
- Microcomputer intelligent temperature controller. Setting and measuring temperature shows in a screen, timing, power control and other functions make temperature control accurate and reliable.
- Hot air circulating system consists of low noise blower and air duct, ensures temperature uniformity effectively.
- Independent alarm system for temperature-limiting, automatically interrupt operation when exceeding the limit. Ensure the safety of the experiment. (optional)
- RS485 interface may link the recorder and the computer, records the changes of temperature parameter. (optional)
Optional Parts:
- Intelligent program controller
- RS485 interface and special software

Specifications:

Model	HHG -9078A	HHG-9148A	HHG-9248A	HHG-9079A	HHG-9149A	HHG-9249A
Work voltage	AC220V  50HZ
Range of temperature Control	RT+20~400°C			RT+30~500°C
Wave degree of temperature	+/-2°C
Temperature resolution	1°C
Input power	2200W	2800W	3600W	2300W	2900W	3700W
Interior dimension W*D*H (mm)	400*400*450	450*550*550	500*600*750	400*400*450	450*550*550	500*600*750
Nominal capacity	70L	140L	240L	70L	140L	240L
Shelves per chamber (standard equipped)	2pcs
