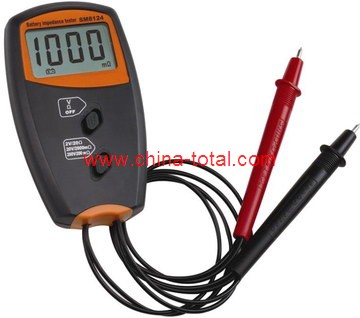

VOLTMETER OF INTERNAL BATTERY RESISTANCE SM8124

Model No.: SM8124

SM8124

Voltmeter of Internal Battery Resistance



FEATURES

Voltmeter of internal battery resistance is mainly
used to measure battery terminal voltage and
internal resistance. The internal resistance is
measured with the international standard AC
signal (1000Hz㊣10%) by means of four-wire
method to ensure the impact of the test probe
of the contact resistance of the instrument, the
wire and battery output terminal on the
measured value, and the battery voltage can
also be measured at the same time. It is
applicable for measurement of internal
resistances of Lithium-ion, nickel-hydroxide,
lithium-manganese cells or assembled battery.

3 1/2 digits 18mm LCD
Voltage Measurement Range:
﹛0~1.999V, 2~19.99V, 20~199.9V
Voltage resolution: ﹛(0~1.999V)1mV,
﹛(2~19.99V)10mV, ﹛(20~100V)100mV
Internal Resistance Measurement Range:
﹛0~199.9m次, 200~1,999m次, ﹛2~19.99次
Internal Resistance Resolution:
﹛(0~199.9m次)0.1m次, ﹛(200~1,999m次)1m次
﹛(2~19.99次)10m次
