Light Transmission Meter/Window Tint Meter

(Transmission Meter, Transmittance Meter, Window Transmission Meter, Window Transmittance Meter, Light Transmission Meter, Light Transmittance Meter)

¡¡ ¡¡
SRW2000 SRW2000S

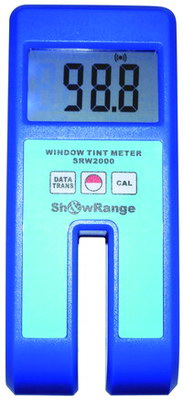

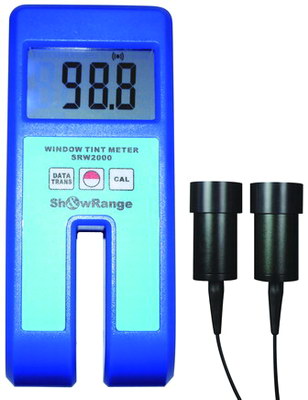

SRW2000, SRW2000S Window Tint Meter

Applications:
It measures the total amount of Visual Light Transmission (henceforth referred to as VLT) through a window and any coatings (tint film) on that window.
Specifications:
Display: 10mm LCD
Accuracy:¡À1%

Resolution: 0.1.
Wavelength: 390~780 Nanometers
Measurement Range: 0 to 100% Light Transmission
Interface: USB or Bluetooth
Sample Thickness: Less than 10mm/0.4inch
Sample Size: 50¡Á 50mm Minimum
Time of Testing: Maximum of 4 Seconds
Effects From Stray Light: Not Effected by Stray Light
Lamp Life: 10 Years
Operating conditions: 0-50C, <90%RH
Power Source: 4¡Á 1.5vAAA Batteries
Weight: 100g(not including batteries)
Dimensions: 126¡Á 65¡Á 27mm(5.0¡Á 2.6¡Á 1.1inch)
Standard accessories included:
Carrying case: 1PC, Operation manual: 1PC
Optional accessories: USB Cable and software or Bluetooth.

¡¡ ¡¡

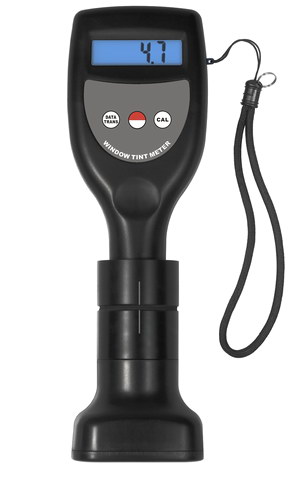

SRW2001 Window Tint Meter

Applications:

Applicable to measure the transmittance or haze of all kinds of transparent, translucent samples with parallel plane. Also can be used to determine the turbidity or clarity of liquid sample.

Features:
* This Window Tint Meter is a hand held device that measures the amount of light that passes through a window.
* Technology is designed in accordance with GB 2410-80, ASTM D1033-61, JIS k7105-81 and other standards.
* Digital display, wide measurement range, high resolution.
* Solid structure, small volume, light weight, exquisite, easy to carry.
* Single / Continuous measuring mode.
* Can measure the transmittance of ultraviolet light, visible light, and infrared light.
* Use USB data output to connect with PC.
* Provide Bluetooth data output choice.

Specifications:

Display: LCD
Range: 0~100%
Resolution: 0.1
Accuracy: ¡À2%
Sample Thickness: <<18 mm/0.7 inch
Light Source: LED
Measuring Mode: Single / Continuous
Operating Conditions: Temperature:0~50ºC Humidity:,90%
Power Supply:

Main Unit: 4x1.5V AAA(UM-4) Battery
Light Emitter: 2x1.5V AAA(UM-4)Battery
Size: Main Unit: 141x65x38mm, Light Emitter: 70x62x52mm
Weight: 290g (Including Batteries)
Standard Accessories: Main Unit, Light Emitter, Standard Block, Carrying Case, Operation Manual
Optional Accessories: USB Data Cable with Software, Bluetooth Data Adapter with Software

¡¡

¡¡

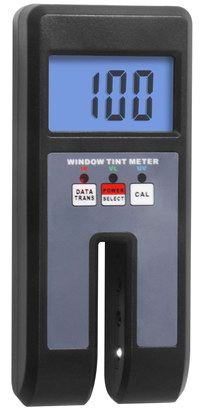

SRW2002 Window Tint Meter

Applications:

Applicable to measure the transmittance or haze of all kinds of transparent, translucent samples with parallel plane. Also can be used to determine the turbidity or clarity of liquid sample.

Features:
* This Window Tint Meter is a hand held device that measures the amount of light that passes through a window.
* Technology is designed in accordance with GB 2410-80, ASTM D1033-61, JIS k7105-81 and other standards.
* Digital display, wide measurement range, high resolution.
* Solid structure, small volume, light weight, exquisite, easy to carry.
* Single / Continuous measuring mode.
* Use USB data output to connect with PC.
* Provide Bluetooth data output choice.

Specifications:

Display: LCD
Range: 0~100%
Resolution: 0.1
Accuracy: ¡À2%
Sample Thickness: ¡Ü18mm/0.7inch
Measurement mode:

Visible light transmittance measurement;
Ultraviolet light transmittance measurement;
Infrared light transmittance measurement;
Light transmittance measurement cycle.
Ultraviolet Light: Wavelength 380nm
Visible Light: Wavelength 380-760nm
Infrared Light: Central Wavelength 950nm
Operating Conditions: Temperature: 0~50ºC Humidity: < 90%
Power Supply: 4x1.5V AAA (UM-4) Battery
Size: 126x65x27mm
Weight: 290g (Including Batteries)
Standard Accessories: Main Unit, Testing Block, Carrying Case, Operation Manual
Optional Accessories: USB Data Cable with Software, Bluetooth Data Adapter with Software

¡¡ ¡¡

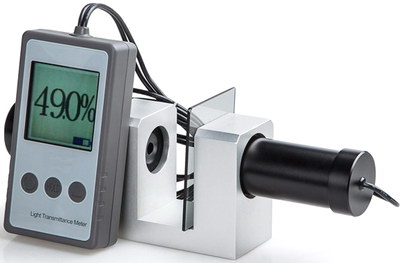

SR3716 Light Transmittance Meter

¡¡

SR3716 light transmittance meter is used for measure percentage of light transmitted through transparent material (such as glass, plastic substrates etc.). This meter is self-contained light sources and self -calibration. No manual adjustment is needed.

Parameter:
1. Size: 130mm*70mm*28mm(L*W*H£©
2. Sample diameter: > 10mm
3. Weigh: 500g (exclude batteries)
4. Resolution: 0.1%
5. Accuracy: ¡À2% (Colorless and transparent material)
6. Visible light wavelength: 380nm-760nm ( Full Weighted Spectrum)
7. Battery: 4*AAA alkaline battery

Feature:
1. The light transmission meter has High repeatability and resolution;
2. auto-calibration and simple calibration;
3. High quality certified optical system for transmission value measurement;
4. Simple and ease operation.

¡¡ ¡¡

Click for Big Picture

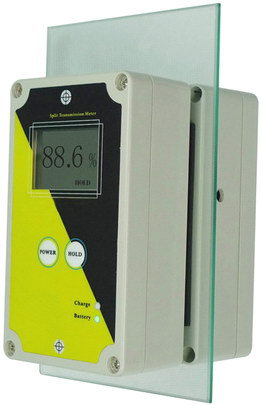

SR3710 Split Light Transmission Meter

Feature:
1. Two parts design, suitable for car windshield and any flat surface glass measurement
2. Self-calibration and auto -calibration, NO need any manual adjustments
3. Three light Transmittance Meter in one device; result is the average of three values
4. Ni-MH rechargeable battery used, no need to change batteries.
5. Two laser for two part alignment, more accuracy.
6. Visible light wavelength: 380nm-760nm (Full Weighted Spectrum)

Parameter:
1. Size: 140mm *82mm *92mm(L*W*H)
2. Weight: 940g
3. Resolution: 1%
4. Accuracy: ¡Ü¡À2%(Colorless and transparent material)
5. Visible light wavelength: 530nm
6. Battery: Built-in rechargeable lithium batteries

¡¡

¡¡

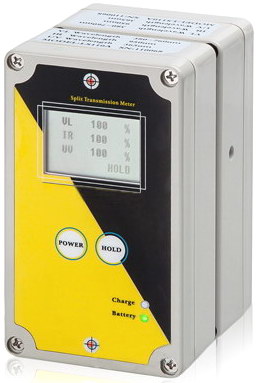

SR3710A Split Light Transmission Meter

Feature:
1. Two parts design, suitable for car windshield and any flat surface glass measurement;
2. UV light, IR light and Visible light three in one Transmittance Meter;
3. Ni-MH rechargeable battery used, no need to change batteries;
4. Two laser for two part alignment, more accuracy.

Parameter:
1. Size: 140mm *82mm *92mm(L*W*H)
2. Weight: 680g
3. Resolution: 0.1%
4. Accuracy: ¡Ü¡À2%(Colorless and transparent material)
5. Visible light wavelength: 530nm

6. UV center wavelength: 365nm
7. IR Center wavelength: 950nm
8. Battery: Built-in rechargeable lithium batteries

9. ¡°Charge¡± is the Charge indicator light. When the meter is charging, the red LED light open, and will be close after the charging is complete.
10. ¡°Battery¡± is the starting up indicator light. The LED light will be green when the meter is starting up, when the battery is using out, the green LED light will be flick, you should charge the meter now.

¡¡ ¡¡

 ( If you need user manual or E-catalogue for above meters, please ask for at: xiushunjie@163.com )
