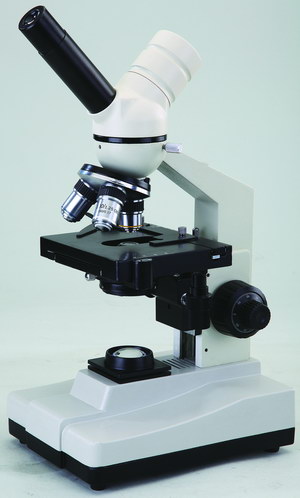

Instrument Technical Data

CCD:  Internal Active 2.0M ega,

Total Magnification: 100x~1000x

Eyepieces: WF10x

Objectives: 10x 40xs 100xs

Eyepieces Tube: Monocular 45° Inclined Tube Rotatable 360°

Lighting System: 0.5W LED Electrical Illumination Adjustment

Coarse Adjustment Range: Coaxial Coarse and Fine 20mm

Working stage: Layer Mechanical Stage 120mm x 120mm

Condenser: NA1.25 Condenser, pulling plate light bar

Internal Digital/Video CMOS Chip Parameters Data

Adaptor ring: USB2.0

Sensor: CMOS 2.0M pixels

Most Resolution: 1600x1200

Frame Rate: CIF30 f/s VGA15 f/s

Image format: RGB 24

Color: Max1.64 million 24 Bit Color

Video Model: 1600x1200

Sensitivity: 1.0 V/lux-sec@550nm

Spectrum response: 400nm ~1000nm

Max range:＜72db

White Balance: Auto/manual

Electrical source: PC USB 2.0 Port
