USB Digital Microscope

¡¡

SRM-200X USB Digital Microscope

¡¡

Specification

Image Sensor

Color CMOS Sensor

Controller

High Speed DSP (Driver Free available )

Lens

Micro-Scope Lens, M12

Focus Range

0mm ~ 40mm

Snap Shot

Software and Hardware

Max. Video Capture Resolution

0.3M (640*480)

Light Source

In-built White Light 8PCS LED (adjustable)

Max. Still Image Capture Resolution

1600*1200

Frame Rate

30 f/s Under 600 Lux Brightness

Lux Range 0 ~ 30000 LUX (adjustable)
Digital Zoom 5X Sequence Mode

Brightness Control

Manual adjustment

Magnification  Ratio

25X  ~  200X (Manual )

Power Supply

USB Port (5V DC  )

Interface

USB 2.0 & USB 1.1 Compatible

Operation System

Win XP, Vista, Win 7 32 bit and 64 bit, Win 8

Driver Language

English, Chinese and other language by selection

System Requirement

Pentium Computer with 700M Hz & Above , 20M HD Space CD ROM Driver, 64MB RAM , Direct X  VGA Card

CD disk

Driver and Micro-Measurement Tool

Dimension

112 mm ( L ) X  33 mm ( R )

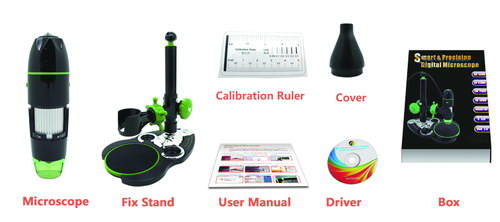

Accessories

1.5M USB cable, CD disk, Metal Fix Stand, color box, simple user manual

¡¡

Packing Size:

CTN (pcs)

20

Size: 400mm*265mm*270mm

G.W.(kg): 6.0

CTN (pcs)

50

Size: 645mm*395mm*270mm

G.W.(kg): 14.5

¡¡

SRM-2M200X High Definition USB Digital Microscope

¡¡

Specification

Image Sensor

Color CMOS Sensor

Controller

High Speed DSP (Driver Free available )

Lens

Micro-Scope Lens, M12

Focus Range

0mm ~ 40mm

Snap Shot

Software and Hardware

Max. Video Capture Resolution

2.0M (1600*1200)

Light Source

In-built White Light 8PCS LED (adjustable)

Max. Still Image Capture Resolution

2592*1944

Frame Rate

30 f/s Under 600 Lux Brightness

Lux Range 0 ~ 30000 LUX (adjustable)
Digital Zoom Adjustment by software

Brightness Control

Manual adjustment

Magnification  Ratio

25X  ~  200X (Manual )

Power Supply

USB Port (5V DC  )

Interface

USB 2.0 & USB 1.1 Compatible

Operation System

Win XP, Vista, Win 7 32 bit and 64 bit, Win 8

Driver Language

English, Chinese and other language by selection

System Requirement

Pentium Computer with 700M Hz & Above , 20M HD Space CD ROM Driver, 64MB RAM , Direct X  VGA Card

CD disk

Driver and Micro-Measurement Tool

Dimension

112 mm ( L ) X  33 mm ( R )

Accessories

1.5M USB cable, CD disk, Metal Fix Stand, color box, simple user manual

¡¡

Packing Size:

CTN (pcs)

20

Size: 400mm*265mm*270mm

G.W.(kg): 6.0

CTN (pcs)

50

Size: 645mm*395mm*270mm

G.W.(kg): 14.5

¡¡

SRM-400X USB Digital Microscope

Specification

Image Sensor

Color CMOS Sensor

Controller

High Speed DSP ( Driver Free available )

Lens

Micro-Scope Lens, M12

Focus Range

0mm ~ 40mm

Snap Shot

Software and Hardware

Max. Video Capture Resolution

0.3M (640*480)

Light  Source

In-built White Light LED x8 pcs

Max. Still Image Capture Resolution

1600*1200

Frame Rate

30 f/s Under 600 Lux Brightness

Digital Zoom

5X Sequence Mode

Brightness Control

Manual adjustment

Magnification  Ratio

25 X  ~  400X (Manual )

Power Supply

USB Port ( 5V DC  )

Interface

USB 2.0 & USB 1.1 Compatible

Operation System

Win XP, Vista , Win 7 32 bit and 64 bit, Win 8

Driver Language

English, Chinese and other language by selection

System Requirement

Pentium Computer with 700M Hz & Above , 20M HD Space CD ROM Driver, 64MB RAM , Direct X  VGA Card

CD disk

Driver and Micro-Measure Tool

Dimension

113 mm ( L ) X  33 mm ( R )

Accessories

1.5M USB cable, CD disk, Metal  Fix Stand, color box, user manual

¡¡

Packing Size:

CTN (pcs)

20

Size: 400mm*265mm*270mm

G.W.(kg): 6.0

CTN (pcs)

50

Size: 645mm*395mm*270mm

G.W.(kg): 14.5

¡¡

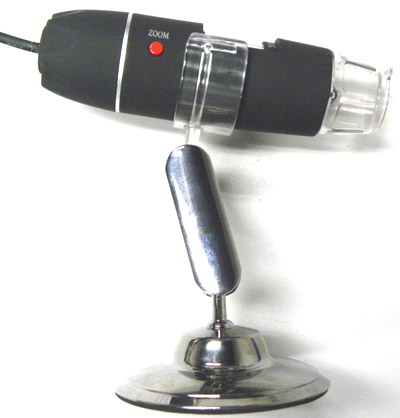

SRM-500X USB Digital Microscope

Specification

Image Sensor

High CMOS Sensor

Controller

High Speed DSP ( Driver Free available )

Lens

Micro-Scope Lens, M12

Focus Range

0mm ~ 40mm

Snap Shot

Software and Hardware

Video Capture Resolution

640*480, 480*360, 320*240

Light  Source

In-built White Light 8PCS LED and adjustable illumination ensure the magnified images are clear and bright

Still Image Capture Resolution

1600*1200,1280*960, 640*480, 480*360, 320*240

Frame Rate

30 f/s Under 600 Lux Brightness

Brightness Control

Manual adjustment

Digital Zoom

5X Sequence Mode

Magnification  Ratio

50 X ~ 500X (Manual)

Power Supply

USB Port (5V DC)

Interface

USB 2.0 & USB 1.1 Compatible

Operation System

Win XP , Vista , Win 7 32 bit and 64 bit.

Driver Language

English, Chinese and other language by selection

System Requirement

Pentium Computer with 700M Hz & above, 20M HD Space CD ROM Driver, 64MB RAM, Direct X VGA Card

CD disk

Driver and Micro-Measurement Tool

Dimension

112 mm ( L ) X  33 mm ( R )

Available color

Matting black, UV black; and other colors

Accessories

USB2.0 cable, Metal fixed Stand (1pcs), CD ROM (Driver, Measurement software, User Manual)

¡¡

Packing Size:

CTN (pcs)

20

Size: 400mm*265mm*270mm

G.W.(kg): 6.0

CTN (pcs)

50

Size: 645mm*395mm*270mm

G.W.(kg): 14.5

SRM-2M500X High Definition USB Digital Microscope

¡¡

Specification

Image Sensor

High CMOS Sensor

Controller

High Speed DSP ( Driver Free available )

Lens

Micro-Scope Lens, M12

Focus Range

0mm ~ 40mm

Snap Shot

Software and Hardware

Max Video Capture Resolution

2.0M (1600*1200)

Light  Source

In-built White Light 8PCS LED and adjustable illumination ensure the magnified images are clear and bright

Max Still Image Capture Resolution

2592*1944

Frame Rate

30 f/s Under 600 Lux Brightness

Brightness Control

Manual adjustment

Digital Zoom

Adjustment by software

Magnification  Ratio

50 X ~ 500X (Manual)

Power Supply

USB Port (5V DC)

Interface

USB 2.0 & USB 1.1 Compatible

Operation System

Win XP , Vista , Win 7 32 bit and 64 bit.

Driver Language

English, Chinese and other language by selection

System Requirement

Pentium Computer with 700M Hz & above, 20M HD Space CD ROM Driver, 64MB RAM, Direct X VGA Card

CD disk

Driver and Micro-Measurement Tool

Dimension

112 mm ( L ) X  33 mm ( R )

Available color

Matting black, UV black; and other colors

Accessories

USB2.0 cable, Metal fixed Stand (1pcs), CD ROM (Driver, Measurement software, User Manual)

¡¡

Packing Size:

CTN (pcs)

20

Size: 400mm*265mm*270mm

G.W.(kg): 6.0

CTN (pcs)

50

Size: 645mm*395mm*270mm

G.W.(kg): 14.5

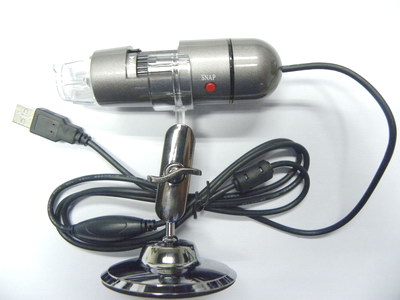

SRM-600X USB Digital Microscope

Specification

Image Sensor

High CMOS Sensor

Controller

High Speed DSP ( Driver Free available )

Lens

Micro-Scope Lens , M12

Focus Range

0mm ~ 40mm

Snap Shot

Software and Hardware

Video Capture Resolution

640*480, 480*360, 320*240

Light  Source

In-built White Light 8PCS LED and adjustable illumination ensure the magnified images are clear and bright

Still Image Capture Resolution

1600*1200,1280*960, 640*480, 480*360, 320*240

Frame Rate

30 f/s Under 600 Lux Brightness

Brightness Control

Manual adjustment

Digital Zoom

5X Sequence Mode

Magnification  Ratio

25 X ~ 600X (Manual)

Power Supply

USB Port (  5V DC  )

Interface

USB 2.0 & USB 1.1 Compatible

Operation System

Win XP , Vista , Win 7 32 bit and 64 bit.

Driver Language

English, Chinese and other language by selection

System Requirement

Pentium Computer with 700M Hz & above, 20M HD Space CD ROM Driver, 64MB RAM, Direct X VGA Card

CD disk

Driver and Micro-Measurement Tool

Dimension

112 mm ( L ) X  33 mm ( R )

Available color

Matting black, UV black; and other colors

Accessories

USB2.0 cable, Metal fixed Stand (1pcs), CD ROM (Driver, Measurement software, User Manual)

¡¡

Packing Size:

CTN (pcs)

20

Size: 400mm*265mm*270mm

G.W.(kg): 6.0

CTN (pcs)

50

Size: 645mm*395mm*270mm

G.W.(kg): 14.5

¡¡

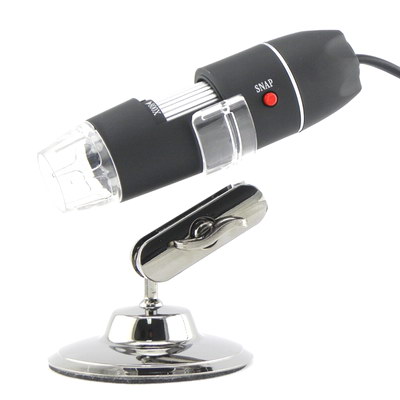

SRM-800X USB Digital Microscope

 Specification

Image Sensor

High CMOS Sensor

Controller

High Speed DSP ( Driver Free available )

Lens

Micro-Scope Lens , M12

Focus Range

0mm ~ 40mm

Snap Shot

Software and Hardware

Max Video Capture Resolution

0.3M (640*480)

Light  Source

In-built White Light 8PCS LED and adjustable illumination ensure the magnified images are clear and bright

Max Still Image Capture Resolution

1600*1200

Frame Rate

30 f/s Under 600 Lux Brightness

Brightness Control

Manual adjustment

Digital Zoom

5X Sequence Mode

Magnification  Ratio

40 X ~ 800X (Manual)

Power Supply

USB Port (  5V DC  )

Interface

USB 2.0 & USB 1.1 Compatible

Operation System

Windows XP, Vista, Win 7 32 bit and 64 bit.

Driver Language

English, Chinese and other language by selection

System Requirement

Pentium Computer with 700M Hz & Above , 20M HD Space CD ROM Driver, 64MB RAM , Direct X  VGA Card

CD disk

Driver and Micro-Measurement Tool

Dimension

112 mm ( L ) X  33 mm ( R )

Product net weight

270g

Available color

Matting black, UV black; and other colors

Accessories

USB2.0 cable, Metal fixed Stand (1pcs), CD ROM (Driver, Measurement software, User Manual)

¡¡

Packing Size:

CTN (pcs)

20

Size: 400mm*265mm*270mm

G.W.(kg): 6.0

CTN (pcs)

50

Size: 645mm*395mm*270mm

G.W.(kg): 14.5

¡¡

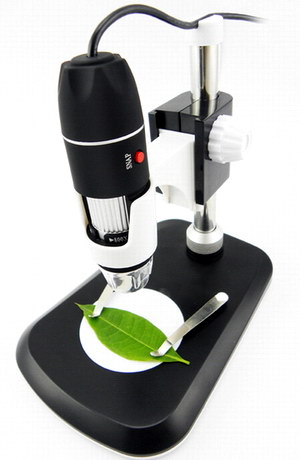

SRM-2M800X USB Digital Microscope

Specification

Image Sensor

High CMOS Sensor

Controller

High Speed DSP ( Driver Free available )

Lens

Micro-Scope Lens , M12

Focus Range

0mm ~ 40mm

Snap Shot

Software and Hardware

Video Capture Resolution

1600*1200,1280*960, 640*480, 480*360, 320*240

Light  Source

In-built White Light 8PCS LED and adjustable illumination ensure the magnified images are clear and bright

Still Image Capture Resolution

2592*1944, 1600*1200,1280*960, 640*480, 480*360, 320*240

Frame Rate

30 f/s Under 600 Lux Brightness

Brightness Control

Manual adjustment

Digital Zoom

Adjustment by software

Magnification  Ratio

40 X ~ 800X (Manual)

Power Supply

USB Port (  5V DC  )

Interface

USB 2.0 & USB 1.1 Compatible

Operation System

Win XP, Vista, Win 7 32 bit and 64 bit, Win 8, Mac Apple System

Driver Language

English, Chinese and other language by selection

System Requirement

Pentium Computer with 700M Hz & Above , 20M HD Space CD ROM Driver, 64MB RAM, Direct X  VGA Card

CD disk

Driver and Micro-Measurement Tool

Dimension

112 mm ( L ) X  33 mm ( R )

Available color

Matting black, UV black; and other colors

Accessories

USB2.0 cable, Metal fixed Stand (1pcs), CD ROM (Driver, Measurement software, User Manual)

¡¡

Packing Size:

Box (pcs)

1

Size: 200*149*80mm

Weight: 490g

CTN (pcs)

20

Size: 415*415*320mm

Weight: 10.0kgs

¡¡

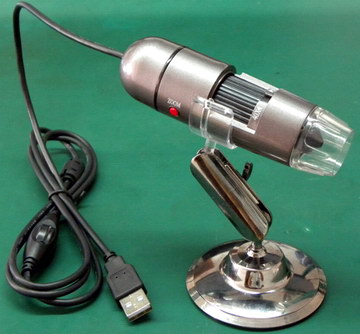

SRM-5M1000X USB Digital Microscope

Specification

Image Sensor

High CMOS Sensor

Controller

High Speed DSP ( Driver Free available )

Lens

Micro-Scope Lens , M12

Focus Range

0mm ~ 40mm

Snap Shot

Software and Hardware

Video Capture Resolution

1960*1080,1600*1200,1280*960, 640*480, 480*360, 320*240

Light  Source

In-built White Light 8PCS LED and adjustable illumination ensure the magnified images are clear and bright

Still Image Capture Resolution

2592*1944,1600*1200,1280*960, 640*480, 480*360, 320*240

Frame Rate

30 f/s Under 600 Lux Brightness

Brightness Control

Manual adjustment

Digital Zoom

Adjustment by software

Magnification  Ratio

40 X ~ 1000X (Manual)

Power Supply

USB Port (5V DC  )

Interface

USB 2.0 & USB 1.1 Compatible

Operation System

Win XP , Vista , Win 7 32 bit and 64 bit, Win 8, Mac Apple System

Driver Language

English, Chinese and other language by selection

System Requirement

Pentium Computer with 700M Hz & Above , 20M HD Space CD ROM Driver, 64MB RAM , Direct X  VGA Card

CD disk

Driver and Micro-Measurement Tool

Dimension

112 mm ( L ) X  33 mm ( R )

Available color

Matting black, UV black; and other colors

Accessories

USB2.0 cable, Metal fixed Stand (1pcs), CD ROM (Driver, Measurement software, User Manual)

¡¡

Packing Size:

Box (pcs)

1

Size: 200*149*80mm

Weight: 490g

CTN (pcs)

20

Size: 415*415*320mm

Weight: 10.0kgs

¡¡

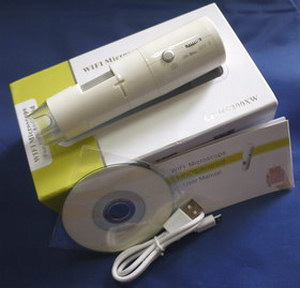

SRM-200XW (Wifi) 25x-200x Wifi Digital Microscope for iPhone/iPad/Android use

Specification

 WIFI Standard

IEEE 802.11 b/g/n standards compliant

Wifi range

¡Ü10 meters

Focus Range

0mm ~ 40mm(can be customized)

Supplementary Light Source

Built-in 8 White LED lights(dimmable)

Still Image Capture Resolution

640*480 Pixels

Frame Rate

VGA 20f/s(Under 600 LUX Brightness)

Fixed Focus Image CMOS Sensor

High Speed DSP (M-JPEG)

Magnification Rate

25X ~ 200X (Manually)

Take Images

Built-in snap shot application

Brightness Control

Manual adjustment

Power Supply

Rechargeable 7500mA self-protection lithium battery

 Support O/S

WIFI capability(Wifi devices with IOS, Android system)

Language

English/Chinese

Application Software

Android/IOS App

Illumination Scope

0 ~ 3000LUX

Product Dimension

142 mm ( L ) X 37 mm ( R )

 Product Net Weight

100g

 Available Color

White/Pink

Packing Size:

40 pcs/ctn ,52.5*35.7*28.5cm, G.W(kg):12.6, N.W(kg):11.8

¡¡

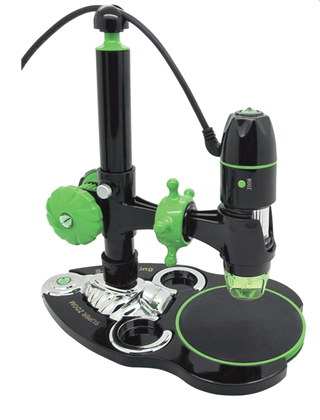

SRM103 3D HD USB Digital Microscope

¡¡

Specification

Image Sensor

Color CMOS Sensor

Controller

High Speed DSP ( Driver Free available )

Lens

Micro-Scope Lens , M12

Focus Range

0mm ~ 150mm

Snap Shot

Software and Hardware

Video Capture Resolution

2M,1.3M,0.3M

Light  Source

In-built White Light 8PCS LED

Still Image Capture Resolution

1600*1200£¬1280*960,640*480£¬480*320£¬320*240

Frame Rate

30 f/s Under 600 Lux Brightness ( 1.3M )

Brightness Control

Manual adjustment , Auto W/B by software

Magnification  Ratio

5 X  ~  500X ( Manual )

Power Supply

USB Port (  5V DC  )

Digital Zoom

4X Sequence Mode

Interface

USB 2.0 & USB 1.1 Compatible

Operation System

Win XP , Vista , Win 7 32 bit and 64 bit.

Driver Language

English, Chinese, German, Italy, Spain, Portugal Russia, Japan, Korea

System Requirement

Pentium Computer with 700M Hz & Above, 20M HD Space CD ROM Driver, 512MB RAM, Direct X  VGA Card

CD disk

Driver program

Measure Tool

Micro-Measure (It can measure Length and diameters, angle, the perimeter, area, etc)

Dimension

112 mm ( L ) X  33 mm ( R )

Accessories

1.5M USB cable, CD disk, Metal Fix Stand, color box, simple user manual

¡¡

Standard Accessories:

¡¡

¡¡

( If you need user manual or E-catalogue without watermark for above meters, please ask for at: xiushunjie@163.com )
