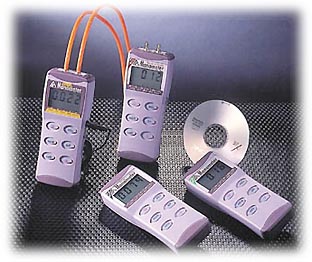

MODEL: AZ8205 / 8215 / 8230 / 82100
-MEASURE GAUGE / DIFFERENTIAL PRESSURE
-PRESSURE RANGE 0~100 PSI
-HOLD / MAX / MIN / RECORD FEATURES
-RS232 INTERFACE
FEATURE
-Digital display of gauge or differential pressure.
-Select from one of 11 pressure units of measure. Hold data, record,
Max/ Min, Backlight features.
-Auto power off preserves remaining battery life.
-Low battery indicator.
-Power Supply:9 volts battery.
-Meter includes hard ABS case, connection hose (standard length:
50cm), battery and manual.
-Simple fittings for hose connection.
-Ideal Application: Medical equipment, Computer Peripherals,
Pneumatic Controls, HVAC.
-Dimension:72x182x30 mm/150g.
-Optional RS232 software (Disk & PC cable).
-Serial format: Baud rate: 2400 Baud, 1 Stop bit, 8 Data Bits. PXXX.
XX
SPECIFICATION
-Accuracy : ＼0.3%of full scale at +25ºC
-Repeatability : ＼0.2% (Max.+/ -0.5)%FSO.
-Resolution time : 0.3 sec.
-Compensated temperature range : 0~50ºC
-Operating temperature range : 0~50ºC
-Storage temperature range : -20~60ºC
-Combined linearity and hysteresis ＼0.29(Max ＼1.0)%FSO.
-Exceeding Maximum Pressure will cause permanent sensor damage.
| 1PSI*6.8947=Kpa |
1PSI*68.947=mbar |
| 1PSI*0.068966=bar |
1PSI*70.038=cmH2O |
| 1PSI* 51.715=mmHg |
1PSI*16=ozin2 |
| 1PSI*0.070309=Kg/cm2 |
1PSI*51.71433=torr |
| 1mmHg=133.322Pa |
1PSI*6890=pascal(pa) |
| 1bar=100000Pa |
|
|
Model |
Operating pressure |
Max. Pressure |
|
AZ8205 |
0~5psi |
20psi |
|
AZ8215 |
0~15psi |
30psi |
|
AZ8230 |
0~30psi |
60psi |
|
AZ82100 |
0~100psi |
150psi |
|
