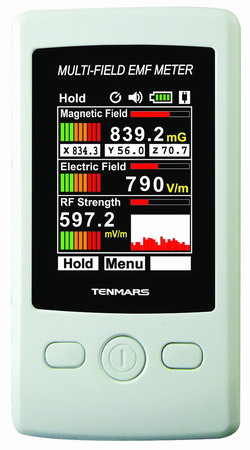

TM-190 Multi-Field EMF Meter

Product Description
- 4 digits, 2.4 inches color TFT LCD.
- 3 measurements in one meter:
Electromagnetic Field ( 3 - axis ).
Electric Field.
RF Strength Field.
- Data Hold (HOLD).
- Language Selection (choose your language):
English; Traditional Chinese; Simplified Chinese; Japanese; Spanish.

　

Specification:
- Display: 4 digits, 2.4 inches color TFT LCD.
- Sample rate: 6 seconds per time.
- Battery life: approximate 8 hours.
- Battery: 1.5V AAA alkaline battery*3.
- Audible key tone alarm: buzzer
- Operating temperature & humidity: 5°C to 40°C, below 80% RH.
- Storage temperature & humidity: -10°C to 60°C, below 70%.
- Weight: about 120g.
- Dimensions: 115(L) x 60(W) x 21(H) mm.

Remarks: TM-190 can be powered via USB mini-B (5 pin) connection, user’s external power supply (voltage DC 4.8 ~ 5.2V; current ≧ 500mA).

TM-190

　

Electromagnetic field

Electric field

RF Strenght field

Sensor type

Low Frequency

LF Electric Fields

RF Strength

Magnetic Fields

Triple axis (X, Y, Z)

Range

0.02~2000mG, 0.02 to 200µT

50V/m to 2000V/m.

0.02µW/m²  ~ 554mW/m²

Resolution

0.01/0.1/1 mG or

1 V/m

0.01μW/m², 0.1μA/m, 0.1mV/m, 0.001μW/cm², 1dB

0.01/0.1/1 µT

Frequency

50/60 Hz

50/60Hz

50MHz to 3.5GHz

Accuracy

±(15%+100dgt)

± (7%+50dgt)

± 2dB at 2.45GHz

　

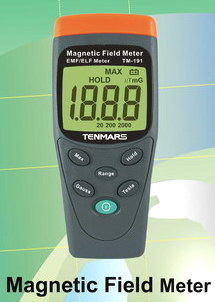

TM-191   Magnetic Field Meter (Gauss Meter)

Features

Switch between the display of micro-Tesla and mini-

Gauss is available.

Data hold (HOLD)¡Bmaximum (MAX) Hold function.

Range display (20,200,2000).

Low battery indication.

Overload indication.

Application
- An electromagnetic wave simply means the wave motion of         the electromagnetic field (EMF).

-This meter is capable of measuring the electromagnetic field radiation intensity that is produced from electric transmission equipment, power line, microwave oven, air conditioner, refrigerator,

computer monitor, video/audio device and so forth.

- The magnetic field unit is Tesla (T), Gauss (G), mini-Gauss(mG) or micro-Tesla(uT).

- 1 T=10,000 G, 1uT=10 mG, 1 G=1,000 mG

Specifications:

                                            TM-191

- Display: 3-1/2 digits LCD, maximum reading 1999.

- ange: 200/2000 mG,20/200µT.

- Resolution: 0.1/1 mG or 0.01/0.1 µT.

- Frequency response: 30Hz to 300Hz.

- Sensor: Single Axis.

- Accuracy: +/-(2.5%+6dgt) at 50Hz/60Hz.

- Sample rate: 2.5 times per second.

- Battery: 9V NEDA 1604, IEC 6F22 or JIS 006P.

- Battery life: Approximate 200 hours.

- Operating temperature & humidity: 5 to 40 Celsius, below 80% RH.

- Weight: About 180g.

- Dimension: 130(L)*56(W)*38(H)mm.

- Accessories: User's manual, 9V battery, carrying case.

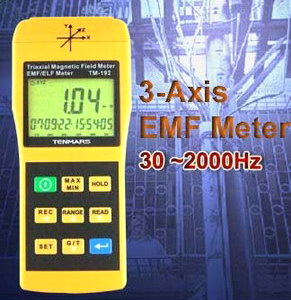

TM-192 3- axis Magnetic Field Meter

   Function

- MAX/MIN/AVG reading.

- Switch between the display of micro-Tesla and

  milli-Gauss is available.
- Data hold (HOLD)

- Maximum and Minimum (MAX/MIN) Hold.
- Low battery indication.
- Overload indication.
- Auto range.
- Auto power.
- Real time clock with calendar.

Application

-Tripe LCD display to show X, Y, Z axis readings and

the average reading (X+Y+Z) / 3.

- An electromagnetic wave simply means the wave motion of the   electromagnetic field (EMF).

- Measuring extremely low frequency (ELF) of 30 to 2000Hz.

- The magnetic field unit is Tesla (T) , Gauss (G), milli-Gauss (mG) or icro-Tesla (uT).

- 1 T=10,000 G,    1uT=10 mG,   1 G=1,000 mG

- It is capable of measuring the electromagnetic field radiation intensity that is produced from

electric transmission, equipment, lower line, microwave oven, air conditioner, refrigerator,

computer monitor, video/audio device and so forth.

TM-192

Specifications

- Display: 4 digits LCD, maximum reading 9999.
- Range: 20/2000 mG, 2/20/200uT.
- Resolution: 0.1/1 mG or 0.001/0.01/0.1 uT.
- Frequency response: 30Hz to 2000Hz.
- Sensor: Triple Axis.
- Accuracy: +/- (2.5%+5dgt) at 50Hz/60Hz, +/- (5.0%+5 dgt) at 30Hz~2000Hz.
- Sample rate: 2.5 times per second.
- Battery: 9V NEDA 1604, IEC 6F22 or JIS 006P.

　　

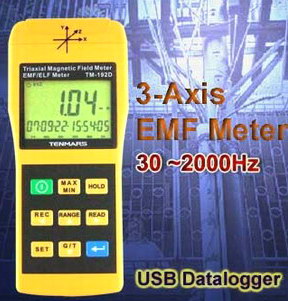

TM-192D Datalogging 3 axis Magnetic Field Meter

Functions

- MAX/MIN/AVG reading.

- Switch between the display of micro-Tesla and

  milli-Gauss is available.
- Data hold (HOLD)

- Maximum and Minimum (MAX/MIN) Hold.
- Low battery indication.
- Overload indication.
- Auto range.
- Auto power.
- Real time clock with calendar.

- USB interface, 9999 Records datalogger.

Applications

- Tripe LCD display to show X, Y, Z axis readings and

the average reading.
- The magnetic field unit is Tesla (T) , Gauss (G), milli-Gauss (mG) or icro-Tesla (uT).
- 1 T=10,000 G,    1uT=10 mG,   1 G=1,000 mG
- Measuring extremely low frequency (ELF) of 30 to 2000Hz.

                                           TM-192D

- An electromagnetic wave simply means the wave motion of the electromagnetic field (EMF).
- It is capable of measuring the electromagnetic field radiation intensity that is produced from

electric transmission, equipment, lower line, microwave oven, air conditioner, refrigerator,

computer monitor, video/audio device and so forth.
Specifications

- USB interface, 9099 records datalogger.
- Battery: 9V NEDA 1604, IEC 6F22 or JIS 006P.

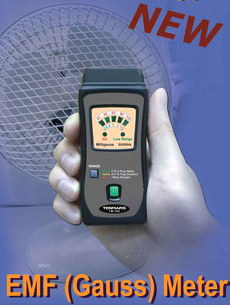

TM-760 Gauss Meter

Functions:

- Display by LED lights.

- Measuring the electromagnetic field radiation

intensity that being emitted from the power lines,

households, and large electrical appliances.

- Range : 0 ~ 100mG.

Specification:

Magnetic Field

Single

Frequency

50Hz / 60Hz

Magnetic Field Range

2.5~10mG /20~100mG

Display

10 LEDs

Accuracy

2.5% + 6dgt

Power

2 batteries 1.5V AAA

Weight

Approx. 80g

Dimension

108(L)x 48(W)x23(H)mm

TM-760

TM-194   Microwave Leakage Detecter   50MHz ~ 3.5GHz

Application:

- Microwave oven leakage detection.
- Cell phone and radio transmitter power output meter.
- Wireless camera detection.
- Office and personal Living environment EMF safety

   evaluations.
- Notebook computer.

Features:

- This meter is applied to measuring the RF frequency range from 50MHz to 3.5GHz.

- It is capable of measuring the electromagnetic field strength, which produced from electric transmission equipment and microwave oven.

- 3 3/4 LCD Max Reading 3999.

- Single axis.

- Auto power off (30 minutes).

                                        TM-194

- Function keys: Power Key, MAX/MIN Key, Hold key, Zero key, Freq Team key.

- Measurement Ranges: 0.010 ~2.700mW/cm2 .

- Dimension: 130 (L) mm x 56(W)mm x 38(H) mm

Measurement Frequency Range	Accuracy	Measurement Ranges
1800MHz	For reference	0.010~2.7 mW/cm2
2450MHz	+/- 2dB	0.010~2.7 mW/cm2

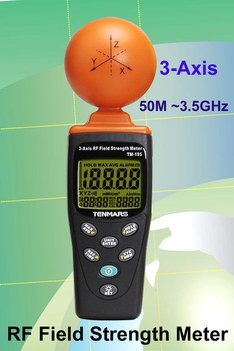

TM-195

3 Axis, RF Field Strength Meter

High frequency 50MHz ~ 3.5GHz

　

Features:

▪50MHz to 3.5GHz Frequency range.

▪For isotropic measurements of electromagnetic fields.

▪Non-directional (isotropic) measurement with

three- channel measurement sensor.

▪High dynamic range due to three- channel digital results processing.

▪Configurable alarm threshold and memory function.

▪Easy & safety to use

▪Low battery detector

▪Over load indication.

▪Auto power off (adjustable from 0~99 min) with disable function.

Application:

-High frequency (RF) electromagnetic wave field strength measurement.

-Mobil phone base station antenna radiation power density measurement.

-Wireless communication applications (CW, TDMA, GSM, DECT).

TM-195

-RF power measurement for transmitters.

-Wireless LAN (Wi-Fi) detection, installation.

-Spy camera, wireless bug finder.

-Cellular /Cordless phone radiation safety level.

-Microwave oven leakage detection.

-Personal living environment EMF safety.

Specification:

Model	TM-195
Measurement ranges	38mv to 11v/m ( per axis)
Display	3-3/4 digits maximum reading 3999
Frequency range	50MHz ~ 3.5GHz
Measurement units	mV/m , V/m , µA/m , mA/m , µW/m2 , mW/m2 , µW/cm2
Display resolution	0.1mV/m, 0.1µA/m, 0.001µW/m2, 0.001µW/cm2
Manual data memory	Read storage:200 data sets.
Alarm function	Adjustable threshold with ON/ OFF
Memory Recall	Records Maximum & AVG
Calibration factor CAL	adjustable
Sampling Time	2.5 times per second.
Operating Temperature and Humidity	0 to 50ºC ( 32ºF to 122ºF ). Max. 80% RH.
Power Supply	9V battery(NEDA 1604 IEC 6F 22 JIS 006P)*1
Battery life	approx. 50 hr.

TM-196

3 Axis, RF Field Strength Meter

High frequency 10MHz ~ 8GHz

Features:

▪10MHz to 8GHz Frequency range.

▪ For isotropic measurements of electromagnetic

  fields.

▪ Non-directional (isotropic)measurement with three-

channel measurement sensor.

▪ High dynamic range due to three-channel digital

results processing.

▪ Configurable alarm threshold and memory function

  (200 records).

▪ Easy & safety to use

▪ Low battery detector

▪ Over load indication.

▪ Auto power-off with disable function.

Application:

▪ High frequency (RF) electromagnetic wave field

   strength measurement.

▪ Mobil phone base station antenna radiation power

density measurement.

▪ Wireless communication applications (CW, TDMA,

GSM, DECT).

▪ RF power measurement for transmitters.

▪ Wireless LAN (Wi-Fi) detection, installation.

▪ Spy camera, wireless bug finder.

▪ Cellular /Cordless phone radiation safety level.

▪ Microwave oven leakage detection.

▪ Personal living environment EMF safety.

　

                                            TM-196

Specification:

Model:	TM-196
Measurement ranges	38mV to 20V/m
Display	3-3/4 digits maximum reading 3999
Frequency range	10MHz ~ 8GHz
Measurement units	mV/m , V/m , µA/m , mA/m , µW/m2 , mW/m2 , µW/cm2
Display resolution	0.1mV/m, 0.01V/m, 0.1µA/m, 0.1mA/m, 0.001µW/m2, 0.01mW/m2, 0.001µW/cm2
Alarm function	adjustable threshold with ON/ OFF
Memory Recall	Records Maximum & AVG
Calibration factor CAL	adjustable
Sampling Time	1.5 times per second.
Operating Temperature and Humidity	0 to 50ºC ( 32ºF to 122ºF ). Max. 80% RH
Operating Temperature and Humidity	Max. 80% RH.
Power Supply	9V battery (NEDA 1604 IEC 6F 22 JIS 006P)*1 & DC adaptor
Battery life	approx. 3 hr.
Size	Main instrument:370(L)80(W)80(H) mm.
Accessories	Instruction manual, carrying case.

　

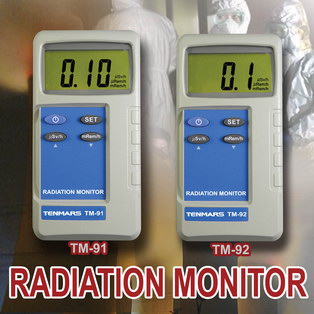

TM-91, TM-92

Radiation Monitor

Description:

- Display units in uSv/h, uRem/h and mRem/h.

- Built-in a GM tube.

- Quick response to the radiation strength of β=Beta, Gamma(y) and X-ray.

- Auto Ranging.

- Automatic detection, easy setting.

- A beeper chirps with each radiation count

- Audio alarm setting function

- Low battery indication.

- Bright LCD display for night or day operation.
Application:
TM-91 & TM-92 Radiation Monitor are the survey meter in measuring the beta, gamma and x-ray radiation. It is useful in monitoring the environment/home safety, nuclear, medical, mining and metal industries. It is also ideal for the border control, customs and cargo inspections.

Specification:

Model

TM-91

TM-92

Units

µSv/h or µRem/h

µSv/h or mRem/h

Display

3 1/2 digits, bright LCD with the maximum reading of 1999

Display Range

0.01µSv/h~19.99µSv/h or 1µRem/h~1999µRem/h

0.1µSv/h~199.9µSv/h or

0.01mRem/h~19.99mRem/h

Measurement Range:

0.5µSv/h~19.99µSv/h or 50µRem/h~1999µRem/h

0.5µSv/h~199.9µSv/h or

0.05mRem/h~19.99mRem/h

Resolution

0.01 uSv/h

1uRem/h

0.1 uSv/h

0.01 mRem/h

Test Radiation

β=Beta, Gamma(y) and X-ray

Sampling time:

20 second/ times

5 second/ times

Energy dependency

0.1 to 1.25 Mev

Accuracy

+/-15% of reading.

Alarm Settlings:

default value : 0.50µSv/h,
setting range: 0~19.99µSv/h

default value0.5µSv/h
setting range: 0~199.9µSv/h

Auto Power Off:

default value : 30 minutes
setting range: 0 ~ 60 minutes ( 0: disable the auto power off)

Operation Environment

0ºC~50ºC ; below 80% RH

Storage Environment

-20ºC~60ºC ; below 75% RH

Battery Type

006P 9V

Battery Life

about 50 hour

Dimension

143 x74 x34mm

Weight

220g

If you need user manual or E-catalogue for above meters, please ask for at: xiushunjie@163.com )

Air Velocity Meter	EMF, RF & Radiation Meter
solar power meter	CO Meter
CO2 Meter	Temperature & Humidity Meter
lux meter	Sound Level Meter, Analyzer & Calibrator
Insulation Tester	UV Light Meter

Specification:

Model

TM-195

Power Supply
