TM-206 Solar Power Meter

¡¡

 Display:

- 3½ digits LCD display with maximum reading of 2000.

- End -mount sensor.

- Select either power or transmission.

- Select wither W/m2 or BTU/ ( ft2 x h)

- Data Hold/ MAX/MIN functions.

 Application:

- Solar radiation measurement.

- Solar power research.

- Physics and optical laboratories.

- Identify high performance windows.

- Simple to use General data.

Dimension

- Size:130x 55x 39mm(LxWxH).

- Weight: About 150g.

                                             TM-206

Specification:

     Model

TM-206

     Display

3½ digits, 2000 readings

     Range

2000 W/m2,  634BTU / (ft2xh)

     Accuracy



Typically within +/- 10W/m2 [+/-3 BTU/ (ft2xh)] or

+/- 5% whichever is greater in sunlight;

Additional temperature included error +/- 0.38 W/m2 / º C [+/-0.12 BTU/ (ft2xh)] / º C] from 25 º C

     Angular accuracy

Cosine corrected <5% for angles <60º

     Drift

< +/- 2% per year

     Over-input

Display "OL"

     Sampling time

0.25 second

Operating Temp. and    Humidity

0º C   ~ 50 º C below 80% RH

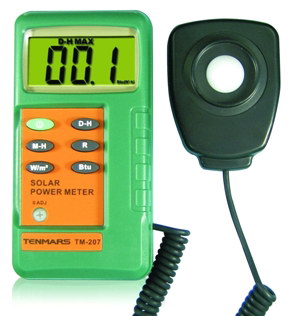

TM-207

Solar Power Meter, With1.5M Remove Sensor

 Display:

 - 3½ digits LCD display with maximum reading of 2000.

- End -mount sensor.

- Select either power or transmission.

- Select wither W/m2 or BTU/ ( ft2 x h)

- Data Hold/ MAX/MIN functions.

 Application:

 - Solar radiation measurement.

- Solar power research.

- Physics and optical laboratories.

- Identify high performance windows.

- Simple to use General data.

Dimension:

- Size:143x 74x 34 mm(LxWxH).

- Weight: About 150g.

TM-207

Specification:

     Model

TM-207

     Display

3½ digits, 2000 readings

     Range

2000 W/m2,  634BTU / (ft2xh)

     Accuracy



Typically within +/- 10W/m2 [+/-3 BTU/ (ft2xh)] or

+/- 5% whichever is greater in sunlight;

Additional temperature included error +/- 0.38 W/m2 / º C [+/-0.12 BTU/ (ft2xh)] / º C] from 25 º C

     Angular accuracy

Cosine corrected <5% for angles <60º

     Drift

< +/- 2% per year

     Over-input

Display "OL"

     Sampling time

0.25 second

Operating Temp. and    Humidity

0º C   ~ 50 º C below 80% RH

TM-208
Datalogging 3 in 1 UVA Light Meter

                     - UVA

                     - Solar Power

                     - Illumination

¡¡

Features:

  - 3 3/4 digits LCD with backlit maximum reading 3999.

  - 3 in 1 light sensor design, you can select either one

    (UV Power, Solar or Illumination) for measurment.

  - Max/Min/Avg and data hold.

  - Auto power off with disable function.

  - Low battery indication.

  - USB interface, Datalogging capacity: 45,000 records.

  - Backlit function.

  - Real time clock with calendar.

  - Rel (relative) function / Zero Adjustment.

                                              TM-208

UVA :

      - Highly reliable direct reading Instrument designed expressly for measuring light  ntensity at

        the wafer plane of mask aligners.

      - UV curing light sources, and any other UV light source.

Solar Power Features:

       - The accuracy is +/-3% at 1,000 Watts/m2 .

       - Solar power research.

       - Physics and optical laboratories.

       - Just point the calibrated PV cell at the sun and read the irradiance in Watts/m2 or Btu/ft2.h.

       - It's great for those who test PV modules or arrays in the field.

Illumination Features:

       - According to JISC1609: 1993 and CNS 5119 general A class spec.

       - Spectral response close to CIE luminous spectral efficiency.

       - Measuring intensities of illumination in unit of Lux or Foot-candle.

       - Silicon photodiode and filter.  Cosine angular corrected.

 Application:

      Warehouses, factories, office buildings, restaurants, schools, library, hospitals, photographic, video,

      parking garages,museums, art galleries, stadiums, building security.

 Specifications:

¡¡

Model :  TM-208 UVA Light Meter

 Measuring range

UVA measurement

Illumination measurement

Solar measurement

40uW, 400uW,

4,000uW,20mW

40,400,4,000,40,000,400,000Lux

40,400,4,000,40,000Foot-candel

40, 400,1000 W/m2,

13,127,634 Btu/ft2.h

 Resolution

0.01uW,0.1uW,

1uW,0.01mW

0.01,0.1,1,10,100 Lux

0.01,0.1,1,10 Foot-candel

0.01,0.1,1 W/m2

.01,0.1,1 Btu/ft2.h



 Accuracy



+/-3%

 +/-3% (Calibrated to standard

    incandescent lamp 2856º K)

 +/-6%(other visible light source )



+/-5%

 Wavelength

320~390nm

400~1100nm

400~1100nm

 Datalogging capacity

   4500 records

 Sample Time

   Approx. 0.4 sec.

 Data Output

   USB PC serial interface.

 Power Supply

   9V battery(NEDA 1604 IEC 6F 22 JIS 006P)

 Battery life

   approx. 100 hr.

 Weight

   approx. 160g

 Accessories

   Instruction manual.

   9V battery(NEDA 1604 IEC 6F 22 JIS 006P)

   Carrying case .

UVA sensor probe.

SOLAR sensor probe.

Illumination sensor probe.

 Main instrument

130(L) x 55(W) x 38 (H)mm

 Sensor probe

Ø49 x 28(H) mm.

80(L) X 55(W)X25(H)mm.

80(L) X 55(W)X25(H)mm

¡¡

TM-750

Solar Power Meter





Display:

- 3-3/4 digits LCD with maximum reading of1999.





Application:

- Solar radiation measurement.

- Solar power research.

- Physics and optical laboratories

- Identify high performance windows

- Meteorology.

- Simple to use general data.

TM-750

 Specificaiton:

Range

4000W/m2, 634Btu/(ft2*h)

Resolution

1W/m2, 1Btu/(ft2*h)

Accuracy

typically within   10W/m2[+/-3 Btu / (ft2*h) ] or +/-5% ,

whichever is greater in sunlight; Additional temperature

induced error   0.38W/m2 / ºC  [+/- 0.12 Btu / (ft2*h)/ ºC ]

from 25ºC

Angular accuracy

Cosine corrected <5% for angles <60 ºC

Sampling Time

Approx. 0.25 second

Weight

Approx. 80g

Dimension

108(L) x 48(W) x 23(H)mm

Power

2 batteries 1.5V AAA.



 If you need user manual or E-catalogue for above meters, please ask for at: xiushunjie@163.com )
