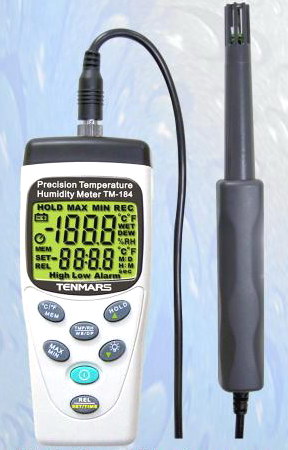

TM-184
Precision Temperature/ Humidity Meter
Humidity Accuracy: +/- 1% RH
Light Weight, Pocket-sized design.
Display:
- Backlit LCD with dual display for simultaneous readings of Temperature
and Humidity.
The maximum reading on the top display (primary display) is 1999.
The maximum reading on the bottom display (secondary display) is 9999.
Features:
- Relative humidity range from 1% to 99% RH.
- Temperature range from -20ºC to 60 ºC (-4 ºF~140 ºF)
- Quick-response capacitance sensor with twist-open protective cover.
- Max/Min and data hold.
- Auto power off with disable function.
- Alarm for Hi and Low limit :Temperature and Humidity.
- Low battery indication.
- Datalogging capacity: 30,000 records.
- Length of wire for sensor: approximately 1M.
- Dew point and wet bulb function.
- Real time clock with calendar. |
 |
|
Specification: |
TM-184 |
|
Temperature range |
-20ºC~60ºC(-4ºF ~140 ºF) |
|
Temperature Accuracy |
+/- 0.5ºC(+/-1.8ºF) (0.0ºC~40.0ºC /32.0ºF~104ºF); other +/-2.0ºC
/3.6ºF |
|
Temperature Resolution |
0.1ºC/0.1ºF |
|
Temperature update rate |
1 time/ second |
|
Temperature sensor type |
Diode |
|
Relative Humidity range |
1.0 %~99.0 %RH |
|
Relative Humidity Accuracy |
+/-1%RH(@25.0ºC 15%RH~90%RH) +/-2.5%RH (@<15%RH, >90%RH) |
|
Relative Humidity Resolution |
0.1% RH |
|
Dew point range |
-30ºC to 100ºC (-22 to 212ºF) |
|
Wet Bulb range |
0ºC to 80ºC (32 to 176ºF) |
|
Relative Humidity response time |
below 10 seconds |
|
LCD display |
42mm*32mm(1.655*1.26 inch) |
|
Power supply |
DC 9V |
|
Size |
130mm*54mm*38mm (L*W*H) |
|
Weight |
250g |
|
|
|

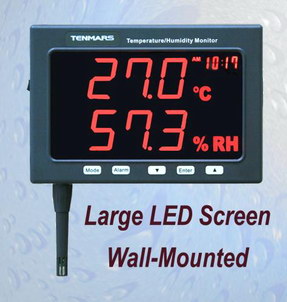

TM-185 /TM-185D
( Datalogger)
Large LED Screen (Dispaly
size: 23mm x 120mm, L x W
Temperature/ Humidity Monitor
Applications:
-
Warehouses.
- Hospitals blood/Tissue banks.
- Laboratories.
- Computer rooms.
- Chambers/incubator. - Clean
rooms.
-
Electronics manufacturing. - Defense.
-
Refrigerators/Freezers. - Other
Critical areas.
Display:
-
Large LED display for simultaneous reading of humidity
and temperature.
-
Dual LED display: the maximum reading on the top display
(primary display) is
1999. The maximum reading on
the bottom display(secondary display)is 999.
- Time clock.
Features:
-
Complete environmental monitor and alarm.
- Wall-Mounted LED
type, easy reading.
-
Alarm set for Hi and Low limit-Temperature and Humidity.
-
Datalogging Capacity 30,000 records.(TM-185D)
-
LED displays real time data. |
TM-185
/ TM-185D |
-
USB interface.(TM-185D).
|
Specifications: |
TM-185/TM-185D |
|
Temperature range |
-20 º C~60 º C (-4 º F ~140 º F) |
|
Temperature Accuracy |
+/-1.0 º C / +/-1.8¢XF (-5.0 º C ~40.0 º C /23 º F~104 º
F)¡Fother
+/-2.0 º C /3.6 º F |
|
Temperature Resolution |
0.1 º C/0.1º F |
|
Temperature update rate |
1 times/ second |
|
Temperature sensor type |
Diode |
|
Relative Humidity range |
5%~95% |
|
Relative Humidity
Accuracy |
+/-2.0%RH(at 25 º C,35%RH~80%RH). +/-2.5%RH(at 25 º
C,
10%~35%,80%~90%) other +/- 5.0%RH(at 25 º
C,<10%RH,>90%RH) |
|
Relative Humidity Resolution |
1.0 RH |
|
Relative Humidity response time |
below 4 second |
|
LED display |
214mm*120mm (8.4*4.73 inch) |
|
Power supply |
AC to DC Adapter (9V/1A) |
|
Battery Backup |
DC 9V battery enables continued measuring during power
disruptions |
|
Size |
260mmx178mmx 47mm(L*W*H) |
|
Weight |
1000 g |
|
|
| |
|
|

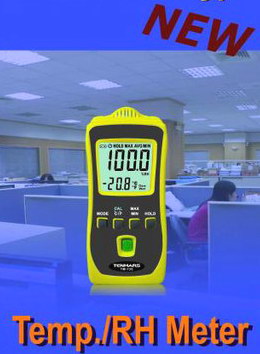

TM-730
Temperature/Humidity Meter
Display:
Dual
LCD displays:
The primary maximum reading 1999.
The secondary Maximum display: 999.
Functions:
- Measuring humidity, temperature,
wet bulb and dew point.
- Quick-response capacitance sensor.
- Max/Min/AVG and Data Hold.
- Auto power off and disable function.
- Low battery indication.
Specifications:
|
TM-730 Temperature/Humidity Meter |
|
Temperature ranges |
-20ºC C~50ºC |
|
Temperature Resolution |
0.1ºC |
|
Temperature update rate |
500ms |
|
Relative humidity accuracy |
+/-3.5% @25ºC for 20% ~90% RH |
|
+/- 5% for 1%~19.9% and 1%~99%RH |
|
Relative Humidity Resolution |
0.1% RH |
|
Second Relative Humidity response time |
below 10 seconds |
|
Power |
2 batteries 1.5V AAA |
|
Dimension |
107mm x48mm x23mm(L*W*H) |
|
Weight |
80g |
|
TM-730 |
|
|
|

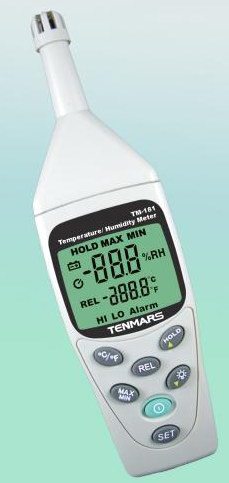

TM-181 Temperature/ Humidity
Meter
Display:
-Dual LCD display:The maximum value on the primary display is 1999. The
maximum value on secondary display is 9999.
-Backlit function.
Functions:
|
Model |
TM-181 |
TM-183 |
|
Rel(relative) |
V |
V |
|
Auto power off |
V |
V |
|
Max/Min |
V |
V |
|
Max/Min/Avg |
|
V |
|
Hold |
V |
V |
|
Alarm |
V |
V |
|
Backlit |
V |
V |
|
Dew Point |
|
V |
|
Wet Bulb |
|
V |
|
Stores up to 200 readings |
|
V |
Specification:
-Temperature measure ranges:-40¢XC~60¢XC(-40¢XF~140¢XF)
-Humidity measure ranges:1.0~99.0 RH.
-Resolution:0.1¢XC/0.1¢XF;0.1% RH.
-Accuracy:0.5¢XC,2.5% RH.
Dimention:
-Size:200*55*38mm(L*W*H)
- Weight:165g.
Accessories:
-User manual -9V
battery( NEDA 1604 IEC 6F 22 JIS 006P )*1
-carrying case. |
 |
| |
|
|

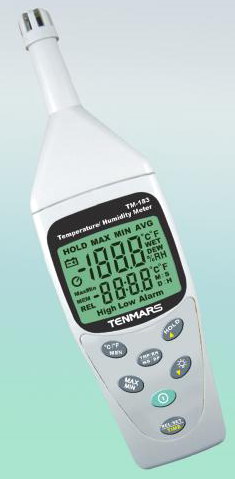

TM-183
Temperature/ Humidity Meter with Dew-Point and Wet bul
Display:
-Dual LCD display:The maximum value on the primary display is 1999. The
maximum value on secondary display is 9999.
-Backlit function
-Storage: 200 readings
Functions:
|
Model |
TM-181 |
TM-183 |
|
Rel(relative) |
V |
V |
|
Auto power off |
V |
V |
|
Max/Min |
V |
V |
|
Max/Min/Avg |
|
V |
|
Hold |
V |
V |
|
Alarm |
V |
V |
|
Backlit |
V |
V |
|
Dew Point |
|
V |
|
Wet Bulb |
|
V |
|
Stores up to 200 readings |
|
V |
Specification:
-Temperature measure ranges:-40¢XC~60¢XC(-40¢XF~140¢XF)
-Humidity measure ranges:1.0~99.0 RH.
-Resolution:0.1¢XC/0.1¢XF;0.1% RH.
-Accuracy:0.5¢XC,2.5% RH.
Dimension:
-Size:200*55*38mm(L*W*H)
-Weight:165g.
Accessories:
-User
manual -9V battery ( NEDA 1604 IEC 6F 22
JIS 006P ) *1
-carrying case. |
 |
