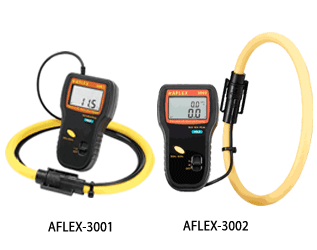

AFLEX-3001/3002
Flexible AC Current Clamp
|
 |
¡¡
|
-
True RMS
-
3000A
-
Voltage Measurement (AFLEX 3002 only)
-
Fast Peak Function(30 ¦Ìs)
-
MAX/MIN
-
Auto-Power-Off£º30 minutes
Flexible probe, different from normal clamp meter,
can pass through obstacles at will and wind many
conducting wires simultaneously, max. diameter 170mm
|
 |
|
|
AC Current (45~65Hz,True RMS) |
|
Range
|
Range
|
Resolution
|
Accuracy of Readings
|
|
30 - 300 A
|
0.00 - 300A
|
0.1A
|
1% of range
|
|
300 - 999.9 A
|
100.0 - 999.9 A
|
0.1A
|
1% of range
|
|
1000 - 3000A
|
1000 - 3000 A
|
1A
|
1% of range
|
|
|
AC Voltage (AFLEX 3002 only, 45~65Hz, True
RMS) |
|
Range
|
Resolution
|
Accuracy of Readings
|
|
3 V - 600 V
|
0.1V
|
¡À 0.5% ¡À 5dgts
|
|
|
Connector Diameter |
23mm |
|
Cable Diameter |
14mm |
|
Cable Length from Probe to Box
|
170mm |
|
Conductor Size |
170mm (approx.) |
|
Battery Type |
1.5V SUM-3*2 |
|
Power Consumption |
10mA (approx.) |
|
Auto - Power - Off |
30 minutes |
|
LCD update rate |
2 times/sec |
|
Operating Temperature |
-10 ¡ãC to 50 ¡ãC |
|
Operating Humidity |
<85% RH |
|
Storage Temperature |
-20 ¡ãC to 60 ¡ãC |
|
Storage Humidity |
<75% RH |
|
Dimension |
130mm (L) x 80 mm (W) x 43mm (H) ;
5.1" (L) x 3.1"(W) x 1.7"(H) |
|
Weight |
450 g |
|
Accessories |
Test lead x 1 pair (AFLEX 3002 only) ;
Users manual x 1 ; Batteries 1.5V x 2
|
|
|
|
AFLEX-3003 Flexible VA
Harmonics Tester
AFLEX -3005 Flexible
Power Quality Tester
|
|
|
 |
|
Power Analysis (3005)
-
W, KW, H.P.
-
VA ,KVA, VAR, KVAR
-
PF, Phase Angle( ¦µ )
-
Energy (WH, KWH)
-
Dual displays (W+PF, VA+KVAR)
-
Balanced 3 ¦µ Power Quality and Sequence
|
Harmonics Analysis
-
True RMS (V and A)
-
3000 A
-
Non-interrupted Harmonic Analysis ( V and A ) to
the 50th Order in % and Magnitude
-
Analysis of % THD-F and C.F.
-
Fast Peak Function (33¦Ìs and 39¦Ìs)
-
Programmable PT (1 to 250 )ratios
-
Auto - Power - Off : 30 Minutes
|
|
Flexible probe , different from normal clamp meter,
can pass through obstacles at will and wind many
conducting wires simultaneously, max. diameter 170mm
|
|
|
|
|
AC Watt (50 or 65 Hz, PF 0.5 to 1, CT=1)
AFLEX-3005 only |
|
Range
|
Resolution
|
Accuray of reading
|
|
100.0 - 999.9 W
|
0.1 W
|
2% of range
|
|
1.000 - 9.999 KW
|
0.001 KW
|
2% of range
|
|
10.00 - 99.99 KW
|
0.01 KW
|
2% of range
|
|
100.0 - 999.9 KW
|
0.1 KW
|
2% of range
|
|
1000 - 9999 KW
|
1 KW
|
2% of range
|
|
|
AC Voltage(50 or 65 Hz, ,Auto Range, True
RMS) |
|
Range
|
Resolution
|
Accuracy of reading
|
|
4.0 V - 600 V
|
0.1 V
|
¡À0.5% ¡À 5dgts
|
|
|
Harmonics of AC Current in % and Magnitude(1
to 50th order) |
|
Range
|
Resolution
|
Accuracy in %
|
Accuracy of Magnitude
|
|
1-20th
|
0.1%
|
¡À2%
|
¡À2% of reading ¡À0.4A
|
|
21st-50th
|
0.1%
|
¡À4% of reading ¡À2.0%
|
¡À4% of reading ¡À 0.4V
|
|
|
AC Current(50 or 65 Hz ,Auto Range, True RMS) |
|
Range
|
Resolution
|
Accuracy of reading
|
|
0 - 300.0 A
|
0.1 A
|
1% of range
|
|
300.0 - 999.9 A
|
0.1 A
|
1% of range
|
|
1000 - 3000 A
|
1 A
|
1% of range
|
|
|
Harmonics of AC Voltage in % and Magnitude(1
to 50th order) |
|
Range
|
Resolution
|
Accuracy in %
|
Accuracy of Magnitude
|
|
1-20th
|
0.1%
|
¡À2%
|
¡À2% ¡À0.5V
|
|
21st-50th
|
0.1%
|
¡À4% of reading ¡À2.0%
|
¡À4% of reading ¡À 0.5V
|
|
|
Total Harmonics Distortion(%THD-F,1 to 50th
order) |
|
Range
|
Resolution
|
Accuracy of reading
|
|
0.0-20%
|
0.1%
|
¡À2%
|
|
20-100%
|
0.1%
|
¡À6% of reading ¡À1%
|
|
100-999.9%
|
0.1%
|
¡À10% of reading ¡À1%
|
|
|
|
|
AFLEX-6300 Graphic
Power Quality Analyzer
|
|
|
 |
-
Display of Overlapped Voltage and Current
Waveform
-
Maximum Demand (MD in W, KW, MW) with
Programmable Period
-
Harmonics Analysis ( V and I ) to the 50th Order
-
Display of 25 Harmonics in One Screen with
Waveform
-
Display of waveform with Peak Values (512
Samples / Period), Datalogging of 32, 64, 128 or
256 Points/Cycles
-
Analysis of Total Harmonics Distortion ( % THD-F
)
-
Graphic Phasor Diagram
-
Programmable PT (1 to 3000) Ratios
|
-
Capture 128 Transient Events ( Time + Cycles +
Faults ) with Programmable Threshold(%), Can
Also be Reviewed in LCD
-
50000 Records with Programmable Interval ( 1 to
6000 seconds)
-
Output of Waveform, Power Parameters and 50
Harmonics at Command.
-
Large Dot Matrix LCD Display with Backlight
-
Optical Isolated RS-232C Interface
-
Smart Datalogging to save Battery Power for
Long-term Monitoring
-
Built - in Calendar Clock for Data Logging
|
|
|
|
|
AC Watt ( 45 ~ 65 Hz, PF 0.5 to 1, CT=1 )
|
|
Range
|
Resolution
|
Accuracy of Readings
|
|
100.0 - 999.9 W
|
0.1 W
|
2% ¡À 8 dgts
|
|
1.000 - 9.999 KW
|
0.001 KW
|
2% ¡À 8 dgts
|
|
10.00 - 99.99 KW
|
0.01 KW
|
2% ¡À 8 dgts
|
|
100.0 - 999.9 KW
|
0.1 KW
|
2% ¡À 8 dgts
|
|
1000 - 9999KW
|
1 KW
|
2% ¡À 8 dgts
|
|
|
AC Current (45~65 Hz , True RMS)
|
|
Range
|
Range
|
Resolution
|
Accuracy of Readings
|
|
30 - 300 A
|
0.00 - 300 A
|
0.1 A
|
1 % of range ¡À 8 dgts
|
|
300 - 999.9 A
|
100.0 - 999.9 A
|
0.1 A
|
1 % of range ¡À 8 dgts
|
|
1000 - 3000 A
|
1000 - 3000 A
|
1 A
|
1 % of range ¡À 8 dgts
|
|
|
Harmonics of ACA in % and Magnitude (1 to
50th order) |
|
Range
|
Resolution
|
Accuracy in %
|
Resolution
|
Accuracy in Magnitude
|
|
10.0 - 300 A
|
0.1 %
|
¡À1.0%
|
0.1 A
|
¡À1.0% of range ¡À 0.8A
|
|
1000 - 3000 A
|
0.1 %
|
¡À1.0%
|
1 A
|
¡À1.0% of range ¡À 3 A
|
|
|
Range
|
Resolution
|
Accuracy of Readings
|
|
0.00 - 1.00
|
0.01
|
¡À 1.5 % ¡À 8 digits
|
|
|
Harmonics of AC Voltage in % and Magnitude
(1 to 50th order) |
|
Range
|
Resolution
|
Accuracy in %
|
Resolution
|
Accuracy in Magnitude
|
|
50 - 600 V
|
0.1 %
|
¡À0.5%
|
0.1V
|
¡À0.5 % ¡À 0.5V
|
|
|
Range
|
Resolution
|
Accuracy of Readings
|
|
-180 ¡ã to 180 ¡ã (0 ¡ã to 360 ¡ã )
|
0.1 ¡ã
|
¡À 1 % ¡À 2 digits
|
|
|
AC Voltage ( 45 ~ 65 Hz, True RMS)
|
|
Range
|
Resolution
|
Accuracy of Readings
|
|
3 V - 600 V
|
0.1 V
|
¡À 0.5 % ¡À 5 dgts
|
|
|
Total Harmonics Distortion (% THD-F , 1 to
50th order) |
|
Range
|
Resolution
|
Accuracy of Readings
|
|
0.0 - 999.9 %
|
0.1 %
|
¡À 0.5 % ¡À 5 digits
|
|
|
Conductor Size |
150 mm (approx.) |
|
Battery Type |
1.5 V SUM-3 *2 |
|
Display |
128*64 Dot Matrix |
|
Power Consumption |
10 mA (approx.) |
|
Auto - Power - Off |
15 minutes |
|
LCD update rate |
2 times/sec |
|
Dimension |
130mm(L)*80mm(W)*43mm(H),
5.1"(L)*3.1"(W)*1.7"(H) |
|
Accessories |
Test lead*1 pair, Users manual*1,
Batteries 1.5V*2 |
|
No. of Sample / Period |
512 ( V & A ), 256 (W) |
|
Operating Temperature |
-10 ¡ãC to 50 ¡ãC |
|
Operating Humidity |
< 85% RH |
|
Storage Temperature |
-20 ¡ãC to 60 ¡ãC |
|
Storage Humidity |
< 75 % RH |
|
Weight |
450g |
|
|
|
