TES-1350A Sound Level
Meter
|
|
 |
 |
-
0.1dB Resolution
-
Maximum hold function
-
AUX OUTPUT JACKS
|
|
 |
|
|
Standard applied
|
IEC 651 Type2 |
|
Range |
A LO (Low) - Weighting: 35-
100dB
A HI (High) - Weighting:
65-130dB
C LO (Low) - Weighting: 35-
100dB
C HI (High) - Weighting:
65-130dB |
|
Resolution |
0.1dB |
|
Frequency Range
|
31.5Hz to 8KHz |
|
Accuracy |
¡À2dB |
|
Dynamic Range
|
65dB |
|
Frequency Weighting
|
A¡¢C |
|
Time Weighting
|
Slow & Fast |
|
Maximum Hold
|
Decay < 1dB/3min |
|
Microphone |
Electret condenser microphone
|
|
Calibration
|
Electrical calibration by using
the internal oscillator
(1KHz sine Wave at 94dB)
|
|
Auxilitary Output
|
AC conditioned, 0.65Vrms
corresponding to
each range step, impedance: 600
W
DC conditioned, 10mV/dB
(nominally) |
|
Operating Condition
|
0ºCto
40
ºC<
80% R. H. |
|
Storage Condition
|
-10ºC
to 60
ºC<
70% R.H. |
|
Display |
3 1/2 digitals |
|
Power Supply
|
one 9V battery |
|
Size |
240mm(L)x68mm(W)x25mm(H)
|
|
Weight |
210g |
|
Accessories |
Instruction Manual, 9V Battery,
Carrying Case,
Screwdriver, Windscreen.
|
|
|
|
TES-1351B Sound Level
Meter
|
|
|
 |
-
0.1dB Resolution
-
Maximum hold function
-
AUX OUTPUT JACKS
|
|
|
¡¡ |
|
Standard applied
|
IEC 651 Type2 |
|
Range |
A LO (Low) - Weighting: 35-
100dB
A HI (High) - Weighting:
65-130dB
C LO (Low) - Weighting: 35-
100dB
C HI (High) - Weighting:
65-130dB |
|
Resolution |
0.1dB |
|
Frequency Range
|
31.5Hz to 8KHz |
|
Accuracy |
¡À 1.5dB (ref 94dB @1KHz)
|
|
Dynamic Range
|
65dB |
|
Frequency Weighting
|
A¡¢C |
|
Time Weighting
|
Slow & Fast |
|
Maximum Hold
|
Decay < 1dB/3min |
|
Microphone |
Electret condenser microphone
|
|
Calibration
|
Electrical calibration by using
the internal oscillator
(1KHz sine Wave at 94dB)
|
|
Auxilitary Output
|
AC conditioned, 0.55Vrms
corresponding to
each range step, impedance: 600
W
DC conditioned, 10mV/dB
(nominally)
impedance: 100 W |
|
Operating Condition
|
0 ºC to 40 ºC < 80% R. H.
|
|
Storage Condition
|
-10 ºC to 60 ºC < 70% R.H.
|
|
Display |
4 digitals |
|
Power Supply
|
one 9V battery |
|
Size |
240mm(L)x68mm(W)x25mm(H)
|
|
Weight |
210g |
|
Accessories |
Instruction Manual, 9V Battery,
Carrying Case,
Screwdriver, Windscreen.
|
|
|
|

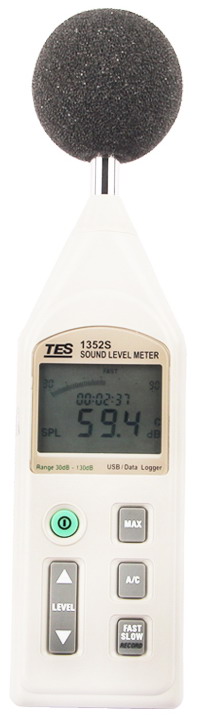

TES-1352S
Programmable Sound Level Meter
|
|
|
 |
-
Compliant with IEC
61672-1 class2 standard.
-
Easy to use for Maximum level and
-
Peak level can be measured simultaneously.
-
Dynamic range of 60dB
Six range from 30 to 130dB
-
A&C Frequency Weighting
-
Fast/Slow dynamic characteristic
-
200M Records Data logging function (micro SD
CARD 4GB)
-
USB interface
-
Sound Level Alarm Output
-
Real time clock with calendar
|
|
|
¡¡ |
|
Applicable standards |
IEC61672-1: 2003 Class 2, ANSI S1.4:
1983 Type 2 |
¡¡ |
|
Measurement item |
SPL, MaxL |
¡¡ |
|
Measurement level |
30dB to 130dB |
¡¡ |
|
Linearity range |
60dB |
¡¡ |
|
Measurement frequency range |
31.5 Hz to 8KHz |
¡¡ |
|
Frequency weight |
A and C |
¡¡ |
|
Time weight |
Fast, Slow |
¡¡ |
|
Accuracy |
¡À1.0dB (ref 94dB @1KHz) |
¡¡ |
|
Microphone |
1/2 inch Electret condenser microphone |
¡¡ |
|
Measurement level range |
5 ranges in 10-dB step: 30 ~ 90dB, 40 ~
100dB, 50 ~ 110dB, 60 ~ 120dB, 70 ~
130dB |
¡¡ |
|
¡¡ |
|
Digital display |
4 digit LCD , 0.1dB resolution, updated
every 1s |
¡¡ |
|
Quasi-analog bar indicator |
1-dB steps, 60dB display range , updated
every 0.125s |
¡¡ |
|
Display Warning function |
¡¡ |
¡¡ |
|
Overrange indicator |
Displayed at the upper limit |
¡¡ |
|
Underrange indicator |
Displayed at the lower limit |
¡¡ |
|
Analong AC / DC output |
2Vrms ( at full scale ) , 10mVDC / dB |
¡¡ |
|
Power supply |
Four 1.5V LR-6/AA size cell, AC adaptor |
¡¡ |
|
Battery Life |
about 24 hours |
¡¡ |
|
Operating temperature , humidity |
-10ºC to 50ºC (14ºF to 122ºF)
R.H. < 90% non-condensing |
¡¡ |
|
Dimensions |
265 (L) ¡Á 72(W) ¡Á 21(H)mm, (
10.4"L ¡Á 2.8"W ¡Á 0.8"H ) |
¡¡ |
|
Weight |
Approx. 310g |
¡¡ |
|
Accessories |
Instruction manual, Battery, Carrying
case, Adjustment screwdriver, Software,
Wind shield, USB connecting
cable, 3.5¦× plug |
¡¡ |
|
Optional accessories |
Microphone extension cable, AC Adaptor |
¡¡ |
|
|
|
TES-1353S
Integrating Sound Level Meter (USB)
|
|
|
 |
-
Compliant with IEC 61672-1 class2 standard.
-
Easy to user for Equivalent continuous sound
pressure level, Sound exposure level,
Percentile level, Maximum level and Minimum
level can be measured simultaneously.
-
Dynamic range of 60dB
-
Five range from 30 to 130dB
-
A & C Frequency Weighting
-
Impulse/ Fast/ Slow dynamic characteristic
-
200M Records Data logging function (microSD
CARD 4GB)
-
USB interface
-
Sound Level Alarm Output
-
Real time clock with calendar
|
|
|
|
Applicable standards |
IEC61672-1: 2013 Class 2, ANSI S1.4:
1983 Type2 |
|
Accuracy |
+/-1.0dB (ref 94dB @1KHz) |
|
Measurement Item |
SPL, Leq, SEL, MaxL, MinL, Peak, Ln
(5%, 10%, 50%, 90%, 95%) |
|
Measurement Level |
30dB to 130dB |
|
Linearity range |
60dB |
|
Measurement Frequency
range |
31.5 Hz to 8KHz |
|
Frequency Weight |
A and C |
|
Time weight |
Fast and Slow, Impulse |
|
Microphone |
1/2 inch Electret condenser
microphone |
|
Measurement level
range |
5 ranges in 10dB step: 30~90dB,
40~100dB, 50~110dB, 60~120dB,
70~130dB |
|
Digital display |
4 digit LCD , 0.1dB resolution,
updated every 0.5s |
|
Quasi-analog bar
indicator |
1-dB steps, 60dB display range,
updated every 0.125s |
|
Display Warning
function
Overrange indicator
Underrange indicator |
Displayed at the upper limit
Displayed at the lower limit
|
|
Analong AC / DC
output |
2Vrms ( at full scale ) , 10mVDC /
dB |
|
Power supply |
Four 1.5V LR-6/AA size alkaline
cell, AC adapter |
|
Battery Life |
about 24 hours |
|
Operating temperature
, humidity |
-10 ~ 50ºC (14 ~ 122ºF), <90% RH
non-condensing |
|
Dimensions |
265 (L) x 72(W) x 21(H)mm
(10.4" L x 2.8" W x 0.8" H) |
|
Weight |
Approx. 310g |
|
Accessories |
Instruction manual , Battery ,
Carrying case,
Adjustment screwdriver, Software,
Wind shield,
USB Cable, 3.5f plug |
|
Optional accessories |
Microphone extension cable, AC
adapter |
|
|
|
TES-1354/1355 Noise Dose Meter
|
|
|
 |
-
Measure % Noise
Dose / Exposure Time / Sound Level
-
Real time clock
with calendar (TES-1355)
-
RS-232 interface
(TES-1355)
|
|
|
|
|
Applicable standards
|
ANSI
S1.25-1991, A weighting |
|
Digital display
|
0~9999%DOSE |
|
Criterion level
|
80, 84,
85, 90dB Selectable |
|
Threshold level
|
Selectable from 70 to 90dB, 1dB step
|
|
Exchange rate
|
Selectable 3dB, 4dB, 5dB or 6dB
|
|
High level Detector
|
115dBA
|
|
Peak Flag
|
140dB
|
|
Measuring range
|
70-140dBA |
|
Accuracy
|
¡À1.5dB
ref. 94dB @1KHz |
|
Resolution
|
0.1dB
|
|
Frequency weighting
|
A
|
|
Time weighting
|
FAST ,
SLOW Selectable |
|
Microphone
|
1/2 inch
electric condenser microphone
|
|
Power supply
|
4pcs
size AAA Alkaline Battery
|
|
Battery life
|
About 36
hours |
|
Dimensions
|
106(L)¡Á64(W)¡Á34(H)mm |
|
Weight |
approx.
350g (include batteries)
|
|
Accessories
|
Instruction manual, Software for
Windows TM, RS-232 Cable, 9 pin to
25pin Gender changer, Carrying case,
batteries, Calibration Screwdriver,
Windscreen. |
|
Optional Sound level
Calibrator |
TES-1356
5 eveuts sturage for TES-1355 only
|
|
|
|
TES-1357
Sound Level Meter
|
|
|
 |
|
|
|
|
|
|
Applicable
standards |
IEC Pub 651 Type2
, ANSI S1.4 Type 2 |
|
Accuracy |
+/- 1.5dB (ref
94dB @1KHz) |
|
Digital display |
4 digital LCD |
|
Measurement Level
A weighting |
30dB to 130dB |
|
Measurement Level
C weighting |
35dB ~ 130dB |
|
Level Range |
30-80dB,
50-100dB, 60-110dB, 80-130dB |
|
Measurement
Frequency range |
31.5 Hz to 8KHz |
|
Frequency Weight |
A and C |
|
Time weight |
Fast and Slow |
|
Microphone |
1/2 inch Electret
condenser microphone |
|
Digital display |
4 digit LCD ,
0.1dB resolution, updated every
0.5s |
|
Quasi-analog bar
indicator |
1-dB steps, 50dB
display range, updated every 100ms |
|
Display Warning
function |
Displayed at the
upper limit |
|
Overrange
indicator |
Displayed at the
lower limit |
|
Underrange
indicator |
¡¡ |
|
Analong AC / DC
output |
2Vrms ( at full
scale ) , 10mVDC / dB |
|
Power supply |
Four 1.5V LR-6/AA
size alkaline cell, AC adapter |
|
Battery Life |
about 20 hours |
|
Operating
temperature , humidity |
5 ~ 40 ºC , 10 ~
90% RH |
|
Dimensions |
265
(L)¡Á72(W)¡Á21(H)mm, ( 10.4" L¡Á2.8"
W¡Á0.8" H ) |
|
Weight |
Approx. 310g |
|
Accessories |
Instruction
manual , Battery , Carrying case , |
|
Adjustment
screwdriver , Wind shield, 3.5 f
plug |
|
|
|
|
¡¡ |
TES-1358C Sound
Analyzer Real Time 1/1 & 1/3 Octave band Analysis
|
|
|
 |
-
Superb high ¨C contrast backlit TFT ¨C LCD
color display
-
Real-time 1/1-Octave and 1/3-Octave analysis
-
4GB microSD Memory Card
-
Data transfer using USB
-
Real time clock with calendar
-
AC and DC outputs
¡¡ |
|
|
Microphone |
1/2-inch
Electret condenser microphone |
|
Measurement range |
25dB to
140dB |
|
Measurement function |
Lp,Leq,LE,Lmax,Lmin,LN |
|
Measurement level range |
20-90dB£¬20-100dB£¬20-110dB£¬30-120dB£¬40-130dB |
|
Accuracy |
¡À1.4dB
(94dB@1kHz) |
|
Frequency range |
1/1
Octave analysis(31.5Hz to 8kHz)
1/3 Octave analysis(25Hz to 10kHz) |
|
Frequency weighting |
A,C,Z |
|
Time
weighting |
Fast¡¢Slow¡¢10ms¡¢Impulse |
|
Display |
320x240
TFT ¨C LCD display with back light |
|
Memory capacity |
4GB
microSD Memory Card |
|
Power |
4 pcs of
C size 1.5V (LR14) batteries
Power Supply: DC6V, 1A |
|
Battery life |
Approx.
2hrs |
|
Operating Temperature/Humidity |
-10ºC
~50ºC £¬10~90%RH |
|
Dimensions & Weight |
34.5(H)
x 10(W) x 6(D) cm
Approx. 950g (including batteries) |
|
Accessories |
Instruction manual, Battery x 4,
Carry case, Software,USB cable, 4GB
microSD Memory Card, Adjustment
screwdriver, wind shield, 3.5f plug,
AC/DC Adaptor. |
|
|
|
