· Designed to international safety standard
IEC1010-1 CATII 600V
· Auto range
· Data hold
· Relative measurement
· Back light
· Auto power off
· Display: 3999 counts
· Power: 9V (6F22) x1
· Size: 185x85x44 |
SRA19 AUTORANGE DIGITAL MULTIMETER,
5 in 1 Environmental Multimeter
(MULTIMETER+Temp+RH+dB+Lux) 5 in 1 Meter
|
|
SRA19 |
|
DC Voltage |
0.1mV ~ 600V |
|
± (0.7%+3digits) |
|
DC Current |
0.1mA ~ 10A |
|
± (1.2%+3digits) |
|
AC Voltage |
1mV ~ 600V |
|
± (0.8%+3digits) |
|
40Hz ~ 500Hz |
|
AC Current |
0.1mA ~ 10A |
|
± (1.5%+3digits) |
|
40Hz ~ 200Hz |
|
Resistance |
0.1Ω ~ 40MΩ |
|
± (0.8%+2digits) |
|
Capacitance |
0.1nF~200μF |
|
± (4%+8digits) |
|
Frequency |
1Hz~200KHz |
|
± (0.2%+5digits) |
|
Temperature |
-20~1000°C |
|
Humidity |
30~90% |
|
Sound level |
35~100db |
|
illuminance |
4000/40000Lux |
|
Continuity |
YES |
|
|
|
|
 |
SRA16 NETWORK MULTIMETER;
(LINE+CABLE+DMM) 3
IN 1 Tester
Network Cable test (RJ45):
• Tests for open circuits, shorts, miswires, reversals, and split
pairs
• SHIELD detection tests a cable's shield integrity
• Main unit and one remote allow one person testing of T568A, T568B,
10Base-T, and Token Ring
• Easy to read fault display and high speed testing
Telephone Line test (RJ11):
·Debug mode for detailed fault
DMM Specification:
|
|
SRA16 |
|
DC Voltage |
0.1mV ~ 1000V |
|
± (0.8%+3digits) |
|
DC Current |
0.1μA ~ 10A |
|
± (1.5%+3digits) |
|
AC Voltage |
0.1mV ~ 700V |
|
± (1.2%+3digits) |
|
40Hz ~ 500Hz |
|
AC Current |
0.1μA ~ 10A |
|
± (1.8%+3digits) |
|
40Hz ~ 200Hz |
|
Resistance |
0.1Ω ~ 200MΩ |
|
± (0.8%+2digits) |
|
Battery test |
1.5/6/9V |
|
Diode test |
YES |
|
|
|
|
.jpg)
.jpg) |
SRA588 Insulation Multimeter
SRA588 Insulation Multimeters combine a digital insulation tester with a
full-featured digital multimeter in a single, compact, handheld unit,
which provides for both troubleshooting and preventative maintenance.
This meters are ideally suited to help you with your tasks and at a cost
that is far less than buying the two products.
APPLICATION:
Motors
Generators
Cables
switch gear
Key Features:
● 5000 counts measurement
● Large LCD with full angel
● ACV and DCV measurement reach up to 1000V
● DC accuracy reaches up to 0.1%
● 0.1Ω resistance resolution and 10uV voltage resolution
● Linear frequency, logic frequency/duty ratio measurement
● Capacitance measurement from 0.1nF to 1000uF
● AC/DC ture RMS measurement
● MAX/MIN value measurement
● Insulation resiatance measurement, range:50KΩ to 10GΩ
● Automatic shutdown/continuous working mode selection
● Back light control
● Overload protection
● Secondary plasticizing meter shell, with insulation
● performance reaching 1000V CAT III
Specification:
|
Basic Functions |
SRA588 |
|
DC Voltage |
0.001V~1000V |
|
± (0.1%+2digits) |
|
AC Voltage |
0.1mV~1000V |
|
± (0.8%+4digits) |
|
DC Current |
0.1uA~500mA |
|
± (0.8%+4digits) |
|
AC Current |
0.1uA~500mA |
|
± (0.8%+4digits) |
|
Resistance |
0.1~50MΩ |
|
± (0.1%+5digits) |
|
Capacitance |
1nF ~1000μF |
|
± (2%+10digits) |
|
Frequency/Duty cycle |
5Hz~2MHz |
|
± (0.1%+4digits) |
|
Diode test |
YES |
|
Insulation test |
Range |
0.05MΩ~2GΩ |
|
Test voltage |
50,100,250,500,1000V |
|
Base accuracy |
± (1.5%+5digits) |
|
|
|
|
.jpg) |
SRA38 50000 Counts High Accuracy Multimeter
with USB interface
This multimeters are rugged and reliable, hand-held or system
instruments for maintenance, initial start-up, training and R&D in
industry, for government authorities, in the test lab, in manufacturing
and quality assurance, as well as at universities.
SPECIFICATIONS:
|
Basic Functions |
Range |
Accuracy |
|
DC Voltage |
50mV/500mV/5V/50V/500V/1000V |
±(0.03%+10) |
|
AC Voltage |
50mV/500mV/5V/50V/500V/1000V |
±(0.5%+40) |
|
DC Current |
500μA/5000μA/50mA/500mA/5A/10A |
±(0.15%+15) |
|
AC Current |
500μA/5000μA/50mA/500mA/5A/10A |
±(0.75%+20) |
|
Resistance |
500Ω/5KΩ/50KΩ/500KΩ/5MΩ
50MΩ |
(±0.1%+10)
(±0.5%+10) |
|
Capacitance |
50nF/500nF/5μF/50μF
500μF/5000μF |
±(1%+5)
±(2%+5) |
|
Line Frequency |
5Hz~200KHz |
±(0.006%+4) |
|
Pulse Frequency |
5Hz~2MHz |
±(0.006%+4) |
|
Duty Cycle |
5%~95% |
±(2%+5) |
|
Diode |
0~2.5V |
±(1%+5) |
Special Functions:
Display: 50000 counts
True RMS Measurenent DC/AC/DC+AC Measure
Diode test
Duty Cycle
Back Light
360°Directions Display
General Characteristics
Power : 1.5V AAA *6
LCD Size: 64x42
Product Size: 205x97x45
Standard Individual Packing: Gift Box
Standard Accessories:
|
● Free 1.5 x6 AAA batteries |
|
● Free carrying bag |
|
●High quality double insulation test leads |
|
● User's manual |
|
●Free USB interface cable |
|
● Free software |
|
|
|
|
.jpg)  |
SRA43 Lan Telephone Test Multimeter
Feature
●
LAN wire test:
Test RJ45 wire used Unshield Twisted Pare and Shield Twisted Pare wiring
at T568A or T568B, 10Base-T and Token Ring.
Indicate Open, Shorts, Miswires, Reversals and split pairs error.
●
Phone test:
Indicate the telephone working state (online, ring, busy)
●
Cable check:
Track the cable or wires, and diagnose and break point
Receive the tone signal on the cables or wires
Specifications
|
MEASURE |
RANGE |
ACCURACY |
|
DC Voltage |
200mv/2V/20V/200V/600V |
+/-(0.7%+4) |
|
AC Voltage |
200mv/2V/20V/200V/600V |
+/-(1%+6) |
|
DC Current |
200μA/2mA/20mA/200mA |
+/-(2%+10) |
|
AC Current |
200μA/2mA/20mA/200mA |
+/-(3%+10) |
|
Resistance |
200Ω/2KΩ/20KΩ/200KΩ/2MΩ/20MΩ |
+/-(1%+5) |
Other function
●
Display: 1999
●
Backlight
●
Continuity test
●
Max measure
●
Diode test
●
Date hold
●
Auto range
●
Auto power off
●
Non contact
●
Low battery detect
●
electric field test
●
Power: 6F22(9V)*1 |
|
|
|
 |
SRA18B TRMS Multimeter with USB
Specifications
●
DC Voltage: 0.1mV ~ 1000V +/-(0.5%+3digits)
●
DC Current: 0.1μA ~ 10A +/- (1.5%+3digits)
●
AC Voltage: 0.1mV ~ 1000V +/-(1.0%+3digits)
●
AC Current: 0.1μA ~ 10A +/-(1.5%+3digits)
●
Resistance: 0.1Ω ~ 40MΩ +/-(0.5%+2digits)
●
Capacitance: 0.01nF ~ 100μF +/- (3.0%+5digits)
●
Frequency/Duty cycle: 10Hz ~ 100Hz +/- (0.1%+3digits)
●
Temperature: -55 ~1000ºC +/-(2.0%+1ºC)
Features
●
TRMS function
●
USB interface
●
6000 counts
●
Diode test/Buzzer
●
Relative measurement
●
Data hold
●
Auto power off
●
In conformity with IEC1010 CATII 1000V |
|
|
|
 |

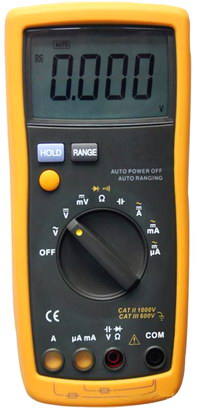

SRA15/SRA17 4000 COUNTS DIGITAL MULTIMETER
Feature
|
|
SRA15 |
SRA17 |
|
4000 counts |
YES |
YES |
|
Diode test / Buzzer/ Continuity |
YES |
YES |
|
Temperature test |
|
YES |
|
Frequency / Duty Cycle |
|
YES |
|
Relative measurement |
YES |
YES |
|
Data hold |
YES |
YES |
|
Auto power off |
YES |
YES |
|
Auto / manual ranging |
YES |
YES |
|
Electronic protection system |
YES |
YES |
|
In conformity with IEC1010 CATII 1000V |
YES |
YES |
Specifications
|
|
SRA15 |
SRA17 |
|
DC Voltage |
0.1mV ~ 1000V |
0.1mV ~ 1000V |
|
±
(0.5%+3digits) |
±
(0.5%+3digits) |
|
DC Current |
0.1μA ~ 10A |
0.1μA ~ 10A |
|
±
(1.5%+3digits) |
±
(1.5%+3digits) |
|
AC Voltage |
0.1mV ~ 1000V |
0.1mV ~ 1000V |
|
±
(1.0%+3digits) |
±
(1.0%+3digits) |
|
40Hz ~ 500Hz |
40Hz ~ 500Hz |
|
AC Current |
0.1μA ~ 10A |
0.1μA ~ 10A |
|
±
(1.5%+3digits) |
±
(1.5%+3digits) |
|
40Hz ~ 200Hz |
40Hz ~ 200Hz |
|
Resistance |
0.1Ω ~ 40MΩ |
|
±
(0.5%+2digits) |
|
Capacitance |
0.01nF ~ 100μF |
|
±
(3.0%+5digits) |
|
Frequency
/
Duty cycle |
|
10Hz ~ 100KHz |
|
|
±
(0.1%+3digits) |
|
Temperature |
|
-55°C ~ 1000°C |
|
|
±
(2.0%+2°C) |
|
|
|
|
.jpg)
.jpg)
This instrument complies with IEC 61010-1:
2001, CAT III 1000V and CAT VI 600V overvoltage standards. See
Specifications. |
SRA40/SRA40B/SRA40R New multimeter with USB
interface
Key Features:
● Display: 6000 counts
● USB port connect to PC(VA40B/VA40R)
● Ture RMS Measurement(VA40R)
● Relative measument
● Auto power off
● Data hold
● Back light
● Auto/manual range
● Low power indication
● Diode/Continuity test
Specification:
|
Basic Functions |
Range |
Accuracy |
|
DC Voltage |
600mV
6V/60V/600V
1000V |
±0.5%
±0.8%
±1.0% |
|
AC Voltage |
600mV/6V/60V/600V
1000V |
±1.0%
±1.5% |
|
DC Current |
600μA/6000μA/60mA/600mA/6A/10A |
±1.5% |
|
AC Current |
600μA/6000μA/60mA/600mA
6A/10A |
±1.8%
±3.0% |
|
Resistance |
600Ω/6KΩ/60KΩ/600KΩ/6MΩ
60MΩ |
±0.5%
±1.5% |
|
Capacitance |
60nF
600nF/6μF/60μF/300μF |
±3.0%
±5.0% |
|
Logic Frequency |
1Hz~1MHz |
±(0.1%+3) |
|
Line Frequency |
6Hz~10KHz |
±(0.05%+8) |
|
Duty Cycle |
1%~99% |
|
|
Temperature |
-55°C~0°C; 1°C~1000°C |
±5.0%;±2.0% |
General Characteristics
Power : 6F22(9V) x1
Product Size: 190(L)*90(W)*40(H) mm
Weight: 500g. Approx. (battery included)
Standard Individual Packing: Gift Box
Standard Accessories:
|
●User's manual |
One piece |
|
● Test leads |
One piece |
|
●"K" type Thermocouple |
One piece |
|
● Capacitor test lead |
One piece |
|
●USB line |
One piece |
|
● PC-Link software CD |
One piece |
|
|
|
|
.jpg) |

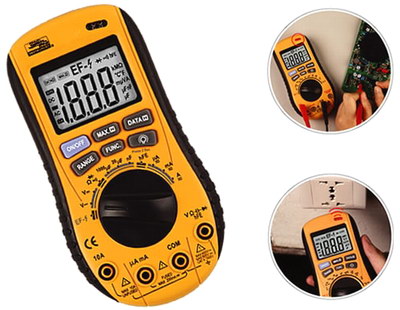

SRA20/SRA20B/SRA20C/SRA21 2 in 1 MULTIMETER
With Misp lug Alarm Function
Specification
|
Basic
Functions |
Range |
Accuracy |
|
SRA20 |
SRA20B |
SRA20C |
SRA21 |
|
DC Voltage |
200mV/2V/20V/200V/600V
/400mV/4V/40V/
400V/1000V |
±(0.7%+2) |
±(0.7%+2) |
±(0.7%+2) |
±(0.7%+3) |
|
AC Voltage |
200mV/2V/20V/200V/600V
4V/40V/400V/750V |
±(1%+3) |
±(1%+3) |
±(1%+3) |
±(1.2%+3) |
|
DC Current |
200μA/2mA/20mA/200mA/2A
/10A/4000μA/400mA/10A |
±(2%+10) |
±(2%+10) |
±(2%+10) |
±(2%+8) |
|
AC Current |
200μA/2mA/20mA/200mA/2A
/10A/ 4000μA/400mA/10A |
±(3%+10) |
±(3%+10) |
±(3%+10) |
±(3%+8) |
|
Resistance |
200Ω/2KΩ/20KΩ/200KΩ/2MΩ
/20MΩ/400Ω/4KΩ/40KΩ/
400KΩ/4MΩ/40MΩ |
±(1%+5) |
±(1%+5) |
±(1%+5) |
±(2%+5) |
|
Capacitance |
20nF/200nF/2μF/20μF/200μF
/1000μF/4nF/40nF/400nF
/4μF/40μF/200μF |
|
|
±(4%+10) |
±(5%+5) |
|
Temperature |
-20°C~1000°C
-40°C~750°C |
|
±(1%+3°C) |
±(1%+4°C) |
±(1%+4°C) |
|
0°F~1800°F |
|
±(1%+5°F) |
±(1%+7°F) |
|
|
Frequency |
10HZ~200KHZ |
|
|
|
±(0.1%+1) |
|
Special Functions |
SRA20 |
SRA20B |
SRA20C |
SRA21 |
|
Continuity Check |
YES |
YES |
YES |
YES |
|
Diode Test |
YES |
YES |
YES |
YES |
|
Transistor hFE Test |
YES |
YES |
|
|
|
AutoRange |
YES |
YES |
YES |
YES |
|
Misplug Alarm |
|
|
|
YES |
|
No Contact AC Voltage Detector |
YES |
YES |
YES |
YES |
|
Back Light |
YES |
YES |
YES |
YES |
|
MAX Value Measurement |
YES |
YES |
YES |
|
|
Relative Measurement |
|
|
|
YES |
|
MAX/MIN Value Measurement |
|
|
|
YES |
|
Data Hold |
YES |
YES |
YES |
YES |
|
Auto Power Off |
YES |
YES |
YES |
YES |
|
Low Power Indication |
YES |
YES |
YES |
YES |
|
Max. Display |
1999 |
1999 |
1999 |
3999 |
|
|
|
|
This instrument complies
with IEC 61010-1: 2001, CAT III 1000V and CAT VI 600V overvoltage
standards. See Specifications.
General Characteristics
Power : 6F22(9V) *1
Product Size: 190(L)*90(W)*40(H) mm
Weight: 500g. Approx. (battery included)
Standard Individual Packing: Gift Box |
SRA55 Extra-safety multi-function multimeter
Key Features:
● Display: 20000 counts
● Double value Display+Analog Bar Display
● USB port connect to PC
●Ture RMS Measurement
● Relative measument
● MAX/MIN value measurement
● Auto power off
● Data hold
● Back light
● Misplug alarm
● Auto/manual range
● Low power indication
● Diode/Continuity test
SPECIFICATIONS
|
Basic Functions |
Range |
Accuracy |
|
DC Voltage |
200mV/2V/20V/200V/1000V |
±(0.05%+10) |
|
AC Voltage |
2V/20V/200V/1000V |
±(0.5%+40) |
|
DC Current |
200mA/10A |
±(0.2%+20) |
|
AC Current |
200mA/10A |
±(1.0%+30) |
|
Resistance |
200Ω/2KΩ/20KΩ/200KΩ/2MΩ/20MΩ |
±(0.5%+10) |
|
Capacitance |
20nF/ 200nF/2μF/20μF
200μF/1000μF |
±(1.5%+20)
±(2%+20) |
|
Logic Frequency |
10Hz~2MHz |
±(0.05%+10) |
|
Line Frequency |
10Hz~200KHz |
±(0.05%+10) |
|
Duty Cycle |
10%~90% |
±(1%+30) |
|
Temperature1 |
-200°C~-100°C
-100°C~1300°C |
±(1%+10)
±(0.5%+10) |
|
Temperature2 |
-200°C~-100°C
-100°C~1300°C |
±(1%+10)
±(0.5%+10) |
Standard Accessories:
|
●User's manual |
One piece |
|
● Test leads |
One piece |
|
●"K" type Thermocouple |
One piece |
|
● Capacitor test lead |
One piece |
|
●USB line |
One piece |
|
● PC-Link software CD |
One piece |
|
|
|
|
|
Environment Characteristics:
• Operating Temperature : 0ºC ~ 40 ºC
• Storage Temperature : -10ºC ~ 50ºC
General Characteristics:
• Power: 1.5V(AAA) * 2
• Product color: Yellow & Black
• Product size : 208*38*29mm
• Product Net Weight: 110g
• Standard Accessories: Test Leads, battery, Clips, User Manual, Gift
Box
• Standard Individual Packing: Gift Box
• Standard Quantity Per Carton: 50pcs
• Standard Carton Meas: 51*36*36cm
• Standard Carton Gross Weight: 16.0kg
Applications:
• apply for testing electronic Component and others |
SRH101 Pen Type Digital Multimeter
Functions:
• Conform to the IEC1010-1 Standard CAT III 600V
• The overmolding rubber case protects the meter to be stronger
• DCV measurement: 200m/2/20/200/600V±0.7%
• ACV measurement: 200m/2/20/200/600V±0.8%
• Resistance measurement: 200/2k/20k/200k/2MΩ/20MΩ±1.2%
• DCA measurement: 20m/200mA±1.5%
• ACA measurement: 20m/200mA±2.0%
Special Functions:
• Logic level test
• Continuity test
• Diode test
• Auto/Manual range
• Maximum value hold
• Data hold
• Auto power off
• Internal self-resetting fuse
• Max Display: 1999
• CE certification
Technical Specifications:
|
Measuring Function |
Range |
Resolution |
Accuracy |
|
DC Voltage |
200mV |
0.1mV |
±(0.7%rdg+2Lsd) |
|
2V |
0.001V |
|
20V |
0.01V |
|
200V |
0.1V |
|
600V |
1V |
|
AC Voltage |
200mV |
0.1mV |
±(0.8%rdg+3Lsd) |
|
2V |
0.001V |
|
20V |
0.01V |
|
200V |
0.1V |
|
600V |
1V |
±(1.0%rdg+3Lsd) |
|
DC Current |
20mA |
0.01mA |
±(1.5%rdg + 3 Lsd) |
|
200mA |
0.
1 mA |
|
AC Current |
20mA |
0.01mA |
±(2.0%rdg + 3 Lsd) |
|
200mA |
0.
1 mA |
|
Resistance |
200Ω |
0.1Ω |
±(1.0%rdg +3Lsd) |
|
2kΩ |
0.001kΩ |
±(1.0%rdg + 1 digit) |
|
20kΩ |
0.01kΩ |
|
200kΩ |
0.1kΩ |
|
2MΩ |
0.001MΩ |
|
20MΩ |
0.01MΩ |
±(1.0%rdg + 5 Lsd) |
|
_Digital_Voltage_Meter-ShowRange.jpg)
Special Functions:
◊ Diode test/Buzzer
◊ Relative value Measurement
◊ Data Hold Function
◊ Auto/Manual Ranging
◊ Auto Power Off
◊ Low battery indication function
◊ Battery Life up to 500 Hours
◊ Max Display: 3999 counts with Backlight
Environment Characteristics:
◊ Holster (secondary injection)
◊ Mechanical/Electronic Protection System
◊ Convenient Fuse/Battery Change Design
◊ In conformity with IEC 1010 CAT II 1000V
◊ Marked for CE,IEC,CATII600V
◊ Operating Temperature : 0 ~ 40 °c
◊ Storage Temperature : -10 ~ 50°c
General Characteristics:
◊ Power: 1.5V(AAA) * 3
◊ Product color: Yellow & Black
◊ Product size : 185*87*53mm
◊ Product Net Weight: 360
◊ Standard Accessories: Test Leads, battery, User Manual, Gift Box
◊ Standard Individual Packing: Gift Box
◊ Standard Quantity Per Carton: 20pcs
◊ Standard Carton Meas: 45*33*29.5cm
◊ Standard Carton Gross Weight: 15.5kg |
SRH112 Digital Voltage Meter
(Equivalent to Fluke 15B)
Specifications
Digital Voltage Meter SRH112.
Data Hold.
Auto/Manual Ranging.
Similar to FLUKE15B.
◊ with CE certificate
◊ DC Voltage : 0.1mV~1000V ± (0.5%+3Lsd)
◊ DC Current: 0.1μ A~10A ± (1.5%+3Lsd)
◊ AC Voltage: 0.1mV~1000V ± (1.0%+3Lsds)
◊ AC Current : 0.1μ A~10A ± (1.5%+3Lsd)
◊ Rsistance: 0.1Ω~40MΩ ± (0.5%+2Lsd)
◊ Capacitance: 0.01nF~100μF ± (3.0%+5Lsd)
Technical Specifications:
|
Measurement Function |
Range |
Resolution |
Accuracy |
|
DC Millivolt |
400mV |
0.1mV |
±(1.0% + 10 Lsd) |
|
DC Voltage |
4V |
1mV |
±(0.5% +3Lsd) |
|
40V |
10mV |
|
400V |
100mV |
|
1000V |
1V |
|
AC Voltage
( 40Hz ~ 500Hz) |
400mV |
0.1mV |
±(0.3% + 3 Lsd) |
|
4V |
1mV |
±(1.0% +3Lsd) |
|
40V |
10mV |
|
400V |
100mV |
|
1000V |
1V |
|
DC Current |
400uA |
0.1uA |
±(1.5% +3Lsd) |
|
4000uA |
1uA |
|
40mA |
0.01mA |
|
400mA |
0.1mA |
|
4A |
1mA |
|
10A |
10mA |
|
AC Current |
400uA |
0.1uA |
±(1.5% +3Lsd) |
|
4000uA |
1uA |
|
40mA |
0.01mA |
|
400mA |
0.1mA |
|
4A |
1mA |
|
10A |
10mA |
|
Resistance |
400.0Ω |
0.1Ω |
±(0.5% + 3Lsd) |
|
4.000kΩ |
1Ω |
±(0.5% +2Lsd) |
|
40.00kΩ |
10Ω |
|
400.0kΩ |
100Ω |
|
4.000MΩ |
1kΩ |
|
40.00MΩ |
10kΩ |
±(1.5% + 3Lsd) |
|
Capacitance |
50nF |
10pF |
±(3.0% + 10Lsd) |
|
500nF |
100pF |
±(3.0% +5Lsd) |
|
5uF |
1nF |
|
50uF |
10nF |
|
100uF |
100nF |
|
|
_Digital_Multimeter_similar_to_Fluke_17B-ShowRange.jpg)
ACCESSORIES:
• Set of test leads
• P3400 thermocouple
• 1.5v(AA)*3
• User manual
• Gift box
Warranty: One year
Specifications
• with High Anti-drop via dual electronic and mechanical protection
• with CE certificate
• Max display : 3999 counts
• Diode test/Buzzer
• Temperature Test
• Frequency/Duty Cycle
• Relative Measurement
• Data Hold Function
• Auto Power Off
• Auto/Manual Ranging
• Low battery indication function
• Holster (secondary injection)
• Mechanical/Electronic Protection System
• In conformity with IEC 1010 CAT II 1000V
• Convenient Fuse/Battery Change Design
• Battery Life up to 500 Hours
• DC Voltage :range 0.1mV ~ 1000V,
accuracy ± (0.5%+3digits)
• DC Current: range 0.1μ A ~ 10A,
accuracy ± (1.5%+3digits)
• AC Voltage: range 0.1mV ~ 1000V,
accuracy ± (1.0%+3digits),Freq. response 40Hz~500Hz
• AC Current :range 0.1μ A ~ 10A,
accuracy ± (1.5%+3digits), Freq. response 40Hz~200Hz
• Resistance: range 0.1Ω ~ 40MΩ,
accuracy ± (0.5%+2digits),
• Capacitance: range 0.01nF ~ 100μF,
accuracy ± (3.0%+5digits)
• Frequency/Duty cycle: Range 10Hz ~ 100kHz,
Accuracy: ± (0.1%+3digits)
• Temperature: Range -55°C ~ 1000°C,
Accuracy: ± (2.0%+1°C)
• Operate temperature: 0°C ~ 40°C
• Storage temperature: -10°C ~ 50°C
• Power: 1.5v(AA)*3
• Dimension: 185*87*53mm
• Weight: 360g |
SRH113 Digital Multimeter (Equivalent
to Fluke 17B)
Technical specification:
|
Measurement Function |
Range |
Resolution |
Accuracy |
|
DC Millivolt |
400mV |
0.1mV |
±(1.0% + 10 Lsd) |
|
DC Voltage |
4V |
1mV |
±(0.5% +3Lsd) |
|
40V |
10mV |
|
400V |
100mV |
|
1000V |
1V |
|
AC Voltage
(Freq. response 40Hz-500Hz) |
400mV |
0.1mV |
±(0.3% + 3 Lsd) |
|
4V |
1mV |
±(1.0% +3Lsd) |
|
40V |
10mV |
|
400V |
100mV |
|
1000V |
1V |
|
DC Current |
400uA |
0.1uA |
±(1.5% +3Lsd) |
|
4000uA |
1uA |
|
40mA |
0.01mA |
|
400mA |
0.1mA |
|
4A |
1mA |
|
10A |
10mA |
|
AC Current |
400uA |
0.1uA |
±(1.5% +3Lsd) |
|
4000uA |
1uA |
|
40mA |
0.01mA |
|
400mA |
0.1mA |
|
4A |
1mA |
|
10A |
10mA |
|
Resistance |
400.0Ω |
0.1Ω |
±(0.5% + 3Lsd) |
|
4.000kΩ |
1Ω |
±(0.5% +2Lsd) |
|
40.00kΩ |
10Ω |
|
400.0kΩ |
100Ω |
|
4.000MΩ |
1kΩ |
|
40.00MΩ |
10kΩ |
±(1.5% + 3Lsd) |
|
Capacitance |
50nF |
10pF |
±(3.0% + 10Lsd) |
|
500nF |
100pF |
±(3.0% +5Lsd) |
|
5uF |
1nF |
|
50uF |
10nF |
|
100uF |
100nF |
|
Frequency/Duty cycle
（10Hz~100KHz） |
50.00Hz |
0.01Hz |
±(0.1% +3Lsd) |
|
500.0Hz |
0.1Hz |
|
5.000KHz |
0.001KHz |
|
50KHz |
0.01KHz |
|
100KHz |
0.1KHz |
|
Temperature |
-55°C~0°C |
0.1°C |
±(9%+2°C) |
|
1°C~400°C |
±(2%+1°C) |
|
401°C~1000°C |
1°C |
±2% |
THE
COMPARISON BETWEEN SRH113 and
FLUKE-17B :
|
Measurement Function |
SRH113
Range / Accuracy |
FLUKE-17B
Range / Accuracy |
|
AC Voltage
(Freq. response 40Hz-500Hz) |
0.1mV ~ 1000V
±(1% +3Lsd) |
0.1mV ~ 1000V
±(1% +3Lsd) |
|
DC Voltage |
0.1mV ~ 1000V
±(0.5% +3Lsd) |
0.1mV ~ 1000V
±(0.5% +2Lsd) |
|
AC Current
(Freq. response 40Hz-200Hz) |
0.1uA ~ 10A
±(1.5% +3Lsd) |
0.1uA ~ 10A
±(1.5% +3Lsd) |
|
DC Current |
0.1uA ~ 10A
±(1.5% +3Lsd) |
0.1uA ~ 10A
±(1.5% +3Lsd) |
|
Resistance |
0.1Ω ~ 40MΩ
±(0.5% +2Lsd) |
0.1Ω ~ 40MΩ
±(0.5% +2Lsd) |
|
Capacitance |
0.01nF ~ 100uF
±(3.0% +5Lsd) |
0.01nF ~ 100uF
±(2.0% +5Lsd) |
|
Temperature |
-55°C ~ 1000°C
± (2.0%+1°C) |
-55°C ~ 1000°C
± (2.0%+1°C) |
|
Frequency/Duty cycle |
10Hz ~ 100kHz
±(0.1%+3Lsd) |
10Hz ~ 100kHz
±(0.1%+3Lsd) |
|
 |
DM33D 3 1/2 DIGITAL MULTIMETER
Range
DC Voltage 200mV～600V
AC Voltage 200V～600V
DC Ccrrent 200uA～10A
Resistance 200Ω～2MΩ
•AC / DC voltage， AC/ DC
current， resistance， positive diode voltage fall，hFE parameters for
transistor and Continuity.
• LCD Display : 3 1/2 digits， character 16mm high
• Back Light Button Switch
• Fuse protection : F-200mA/250V (Ø5x20mm)
• Power Supply : 9V battery， 6F22 or NEDA 1604
• Data-hold Switch (HOLD)
• Safety:According to EN61010-1 protection class II overvoltage
category(CAT III 600V) pollution degreen 2.
•Certificate: CE Approva
• Each item in one color
box
• Dimension: 143x75x32mm(with holster)
• Ctn size: 478×318×315mm
• Q’TY / Ctn: 60pcs
• Gw/Nw: 17/16KG
|
 |
DM36B 3 3/4 AUTO RANGE
MULTIMETER
Range
DC Voltage 400mV～1000V
AC Voltage 4V～750V
DC Ccrrent 400μA～10A
AC Ccrrent 400μA～10A
Resistance 400Ω～40MΩ
Capacitance 40nF～200uF
Frequency 4KHz～20MHz
Display 3999
Range Select AUTO
Diode Test Yes
hEF Test Yes
Continuity Buzzer Yes
Date Hold Yes
Back Light Yes
Auto Power Off Yes
Battery Type
1.5V(AAA)x2
Dimension 143x75x32mm
Weight 200g
|
 |
DM4201 Digital Multimeter
(Pocket
size, super thin)
Range
DC Voltage 400mV～450V
AC Voltage 4V～450V
Resistance 400Ω～40MΩ
Display
3999
Range Select Auto
Continuity Buzzer Yes
Auto Power Off Yes
Battery
Type 1.5V(LR-44)x2
Dimension 108x54x12mm
Weight 110g
|
 |
DT97 3 3/4
MULTIMETER
|
Basic Function |
Range |
Accuracy |
|
DCV |
400mV/4V/40V/400V/1000V |
±(0.5%+4) |
|
ACV |
400mV/4V/40V/400V/750V |
±(0.8%+6) |
|
DCA |
40mA/400mA/10A |
±(1.0%+6) |
|
ACA |
400uA/4000uA /40mA/400mA/10A |
±(1.5%+10) |
|
Resistance |
400Ω/4kΩ/40kΩ/400kΩ/4MΩ/40MΩ |
±(0.8%+4) |
|
Capacittance |
4nF/40nF/400nF/4uF/40uF/200uF |
±(2.5%+6) |
|
Frequency |
100Hz/1000Hz/10kHz/100kHz/1MHz/30MHz |
±(0.5%+4) |
|
Celsius |
(-40 ~ 1000)°C |
±(0.8%+4) |
|
Special Function |
VC97 |
|
Diode test |
Yes |
|
Transistor |
Yes |
|
Continuity buzzer |
Yes |
|
Low battery indication |
Yes |
|
Data hold |
Yes |
|
Auto power off |
Yes |
|
Function protection |
Yes |
|
Relative
＆#118alue
measurement |
Yes |
|
Shock proof protection |
Yes |
|
Function protection |
1%~99% |
|
Input impedance |
10MΩ |
|
Sampling rate |
3times/s |
|
AC Frequency response |
(40-400)Hz |
|
Operation way |
Auto range |
|
Max.Display |
3999 |
|
 |
DT890C+ 3 3/4
MULTIMETER
|
Basic Function |
Range |
Accuracy |
|
DCV |
200mV/2V/20V/200V/1000V |
±(0.5%+3) |
|
ACV |
2V/20V/200V/750V |
±(0.8%+5) |
|
DCA |
200uA/20 mA /200mA/20A |
±(1.5%+3) |
|
ACA |
20mA /200mA/20A |
±(1.5%+5) |
|
Resistance |
200Ω/2kΩ/20kΩ/200kΩ/20MΩ |
±(0.8%+3) |
|
Capacittance |
20nF/200nF/20uF/200uF |
±(2.5%+20) |
|
Celsius |
(-40 ~ 1000)°C |
±(0.8%+4) |
|
Special Function |
VC890C+ |
|
Diode test |
Yes |
|
Transistor |
Yes |
|
Continuity buzzer |
Yes |
|
Low battery indication |
Yes |
|
Data hold |
Yes |
|
Auto power off |
Yes |
|
Function protection |
Yes |
|
Restorable Fuse protection |
Yes |
|
Shock proof protection |
Yes |
|
Input impedance |
10MΩ |
|
Sampling rate |
3times/s |
|
AC Frequency response |
(40-400)Hz |
|
Operation way |
Manual range |
|
Max. Display |
1999 |
|
LCD size |
55×43mm |
|
Battery |
9V (6F22) |
|
.jpg)
.jpg)
.jpg)
