58 series

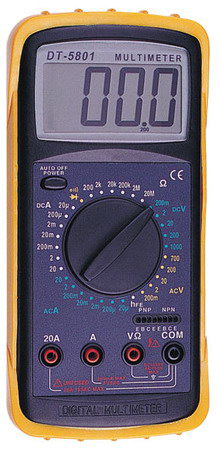

DT5801  3 1/2 DIGITAL MULTIMETER

 Function  Range  Accuracy
 DC Voltage  200mV-1000V  \(0.5%+1dgt)
 AC Voltage  200mV-750V  \(0.8%+3dgt)
 DC Current  20µA-20A  \(0.8%+1dgt)
 AC Current  20µA-20A  \(1.0%+3dgt)
 Resistance  200Ω-200MΩ  \(0.8%+1dgt)
 Diode Test  Yes
 Transistor Test  Yes
 Continuity Buzzer  Yes
 Auto Power off  Yes
 Power Supply  9V Battery 6F22
 Maximum Display  1999
 Weight  310g
 Products Size  190〜88〜34mm
 Standard Accessories  Test Lead, Battery, Manual, Holster

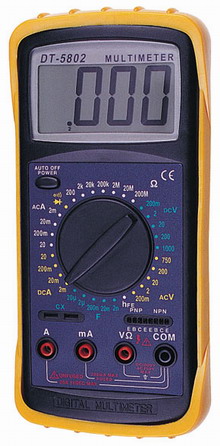

DT5802 (DT5805)  3 1/2 DIGITAL MULTIMETER

 Function  Range  Accuracy
 DC Voltage  200mV-1000V  \(0.5%+1dgt)
 AC Voltage  200mV-750V  \(0.8%+3dgt)
 DC Current  2mA-20A  \(0.5%+1dgt)
 AC Current  2mA-20A  \(1%+3dgt)
 Resistance  200Ω-200MΩ  \(0.8%+1dgt)
 Capacitance  2nF-20µF  \(2.5%+3dgt)
 Diode Test  Yes
 Transistor Test  Yes
 Continuity Buzzer  Yes
 Auto Power Off  Yes
 Power Supply  9V Battery 6F22
 Maximum Display  1999
 Product Net Weight  310g
 Products Size  190〜88〜34mm
 Standard Accessories  Test Lead, Battery, Manual, Holster

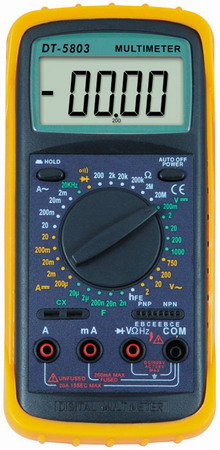

DT5803 4 1/2 DIGITAL MULTIMETER

 Function  Range  Accuracy
 DC Voltage  200mV-1000V  \(0.5%+3dgt)
 AC Voltage  2V-750V  \(0.8%+10dgt)
 DC Current  200µA-20A  \(0.5%+2dgt)
 AC Current  2mA-20A  \(0.8%+10dgt)
 Resistance  200Ω-20MΩ  \(0.2%+1dgt)
 Capacitance  2nF-20µF  \(2.5%+3dgt)
 Frequency  20KHz  \(1.5%+5dgt)
 Diode Test  Yes
 Transistor Test  Yes
 Continuity Buzzer  Yes
 Auto Power Off  Yes
 Data Hold  Yes
 Power Supply  9V Battery 6F22
 Maximum Display  19999
 Product Net Weight  310g
 Products Size  190〜88〜34mm
 Standard Accessories  Test Lead, Battery, Manual, Holster

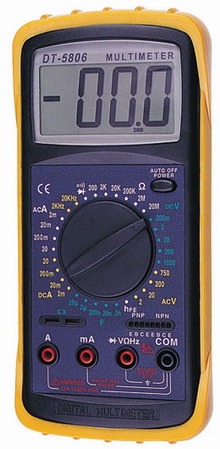

DT5806  3 1/2 DIGITAL MULTIMETER

 Function  Range  Accuracy
 DC Voltage  200mV-1000V  \(0.5%+1dgt)
 AC Voltage  2V-750V  \(0.8%+3dgt)
 DC Current  2mA-20A  \(0.5%+1dgt)
 AC Current  2mA-20A  \(1%+3dgt)
 Resistance  200Ω-20MΩ  \(0.8%+1dgt)
 Capacitance  2nF-20µF  \(2.5%+3dgt)
 Frequency  2KHz-20KHz  \(1.5%+5dgt)
 Diode Test  Yes
 Transistor Test  Yes
 Continuity Buzzer  Yes
 Auto Power Off  Yes
 Power Supply  9V Battery 6F22
 Maximum Display  1999
 Product Net Weight  310g
 Products Size  190〜88〜34mm
 Standard Accessories  Test Lead, Battery, Manual, Holster

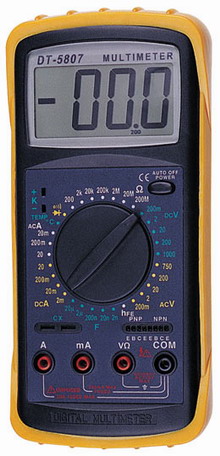

DT5807  3 1/2 DIGITAL MULTIMETER

 Function  Range  Accuracy
 DC Voltage  200mV-1000V  \(0.5%+1dgt)
 AC Voltage  200mV-750V  \(0.8%+3dgt)
 DC Current  2mA-20A  \(0.5%+1dgt)
 AC Current  20mA-20A  \(0%+3dgt)
 Resistance  200Ω-200MΩ  \(0.8%+1dgt)
 Capacitance  2nF-20µF  \(2.5%+3dgt)
 Temperature  -40<C~1000<C  \(0.75%+3dgt)
 Diode Test  Yes
 Transistor Test  Yes
 Continuity Buzzer  Yes
 Auto Power Off  Yes
 Power Supply  9V Battery 6F22
 Maximum Display  1999
 Product Net Weight  310g
 Products Size  190〜88〜34mm
 Standard Accessories  Test Lead, Battery, Manual, Holster, K-type thermocouple wire

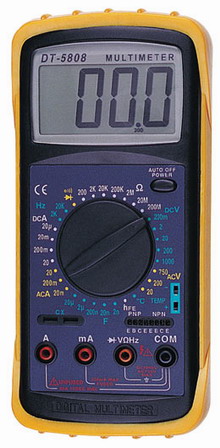

DT5808  3 1/2 DIGITAL MULTIMETER

 Function  Range  Accuracy
 DC Voltage  200mV-1000V  \(0.5%+1dgt)
 AC Voltage  20V-750V  \(0.8%+3dgt)
 DC Current  20mA-20A  \(0.8%+1dgt)
 AC Current  200mA-20A  \(1.8%+3dgt)
 Resistance  200Ω-200MΩ  \(0.8%+1dgt)
 Capacitance  2nF-20µF  \(2.5%+3dgt)
 Frequency  2KHz-20KHz  \(1.5%+5dgt)
 Temperature  -40<C~1000<C  \(0.75%+3dgt)
 Diode Test  Yes
 Transistor Test  Yes
 Continuity Buzzer  Yes
 Auto Power Off  Yes
 Power Supply  9V Battery 6F22
 Maximum Display  1999
 Product Net Weight  310g
 Products Size  190〜88〜34mm
 Standard Accessories  Test Lead, Battery, Manual, Holster, K-type thermocouple wire
