mini series
M300 3 1/2 DIGITAL MULTIMETER
 |
Function |
Range |
Accuracy |
|
DC Voltage |
2V-500V |
＼(0.5%+2dgt) |
|
|
AC Voltage |
200-500V |
＼(1.2%+10dgt) |
|
|
DC Current |
200mA |
＼(1.0%+2dgt) |
|
|
Resistance |
2KΩ-2000KΩ |
＼(0.8%+2dgt) |
|
|
Diode Test |
Yes |
||
| Continuity Test | Audible | ||
|
Power Supply |
12V Battery A12 |
||
|
Maximum Display |
1999 |
||
|
Products Size |
120〜70〜20mm |
||
|
Product Net Weight |
90g |
||
|
Standard Accessories |
Test Lead, Battery, Manual |
||

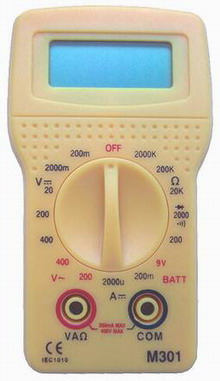

M301 3 1/2 DIGITAL MULTIMETER
 |
Function | Range | Accuracy |
| DC Voltage | 200mV-400V | ＼(0.5%+2dgt) | |
| AC Voltage | 200-400V | ＼(1.2%+10dgt) | |
| DC Current | 2000µA-200mA | ＼(1.0%+2dgt) | |
| Resistance | 200Ω-2000KΩ | ＼(0.8%+2dgt) | |
| Diode Test | Yes | ||
| Continuity Test | Audible | ||
| Battery Capacity Check | 9V | ||
| Power Supply | 12V Battery A12 | ||
| Maximum Display | 1999 | ||
| Products Size | 106〜58〜23mm | ||
| Product Net Weight | 65g(includ battery) | ||
| Standard Accessories | Test Lead, Battery, Manual | ||

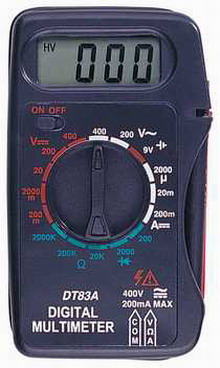

DT83A 3 1/2 DIGITAL MULTIMETER
 |
Function | Range | Accuracy |
| DC Voltage | 200mV-400V | ＼(0.5%+2dgt) | |
| AC Voltage | 200-400V | ＼(1.2%+10dgt) | |
| DC Current | 2000µA-200mA | ＼(1.0%+2dgt) | |
| Resistance | 200Ω-2MΩ | ＼(0.8%+2dgt) | |
| Diode Test | Yes | ||
| Battery Capacity Check | 9V | ||
| Power Supply | 12V Battery A12 | ||
| Maximum Display | 1999 | ||
| Products Size | 100〜58〜21mm | ||
| Product Net Weight | 150g | ||
| Standard Accessories | Test Lead, Battery, Manual | ||

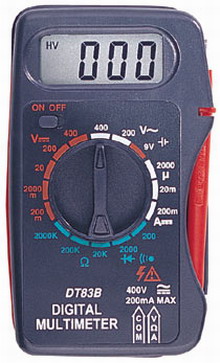

DT83B 3 1/2 DIGITAL MULTIMETER
 |
Function |
Range |
Accuracy |
|
DC Voltage |
200mV-400V |
＼(0.5%+2dgt) |
|
|
AC Voltage |
200-400V |
＼(1.2%+10dgt) |
|
|
DC Current |
2000µA-200mA |
＼(1.0%+2dgt) |
|
|
Resistance |
200Ω-2MΩ |
＼(0.8%+2dgt) |
|
|
Diode Test |
Yes |
||
|
Battery Capacity Check |
9V |
||
| Continuity Test | Audible | ||
|
Power Supply |
12V Battery A12 |
||
|
Maximum Display |
1999 |
||
|
Products Size |
100〜58〜21mm |
||
|
Product Net Weight |
150g |
||
|
Standard Accessories |
Test Lead, Battery, Manual |
||

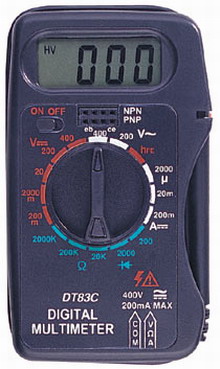

DT83C 3 1/2 DIGITAL MULTIMETER
 |
Function | Range | Accuracy |
| DC Voltage | 200mV-400V | ＼(0.5%+2dgt) | |
| AC Voltage | 200-400V | ＼(1.2%+10dgt) | |
| DC Current | 2000µA-200mA | ＼(1.0%+2dgt) | |
| Resistance | 200Ω-2MΩ | ＼(0.8%+2dgt) | |
| Diode Test | Yes | ||
| Transistor hFE | Yes | ||
| Power Supply | 12V Battery A12 | ||
| Maximum Display | 1999 | ||
| Products Size | 100〜58〜21mm | ||
| Product Net Weight | 150g | ||
| Standard Accessories | Test Lead, Battery, Manual | ||
